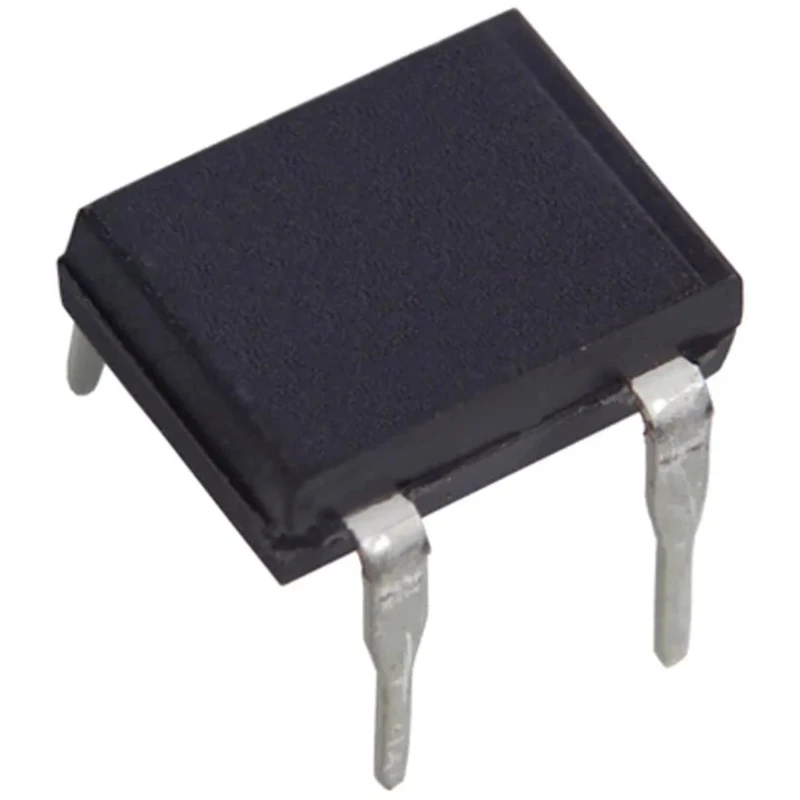

Fagor Electronica Bridge Rectifier 600 V 50 A 4-Pin Through Hole Package DFM DF06M TU

Fagor Electronica DF06M TU Bridge Rectifier is a robust and compact 4-pin device designed for through hole mounting on printed circuit boards. It is engineered to handle a peak reverse repetitive voltage of 600 V and supports a forward current of 1 A, making it suitable for various electronic power control and conversion applications.

This bridge rectifier features a DFM package and is engineered to withstand a maximum operating temperature of 150°C, while functioning reliably in harsh environments down to -55°C. Its peak non-repetitive forward surge current is rated at 50 A, supporting transient high current conditions without damage.

The device exhibits a peak forward voltage of 1.1 V and maintains a low peak reverse current of 500 μA, ensuring efficiency and minimal leakage in circuits. With exact dimensions of 8.51 mm length, 6.5 mm width, and 3.3 mm height, this component fits tightly in electronic assemblies where space optimization is critical.

Intended primarily for discrete semiconductor applications, the Fagor Electronica DF06M TU is widely used in industrial electronics, power supplies, and control systems requiring reliable ac to dc conversion. Although it does not carry automotive or other special standards, the manufacturing origin in Thailand assures consistent quality and performance for industrial and commercial use.

Designed for PCB mounting with a DFM package style. Operates reliably within a temperature range of -55°C to 150°C. Features a peak non-repetitive forward surge current rating of 50 A. Offers a peak forward voltage of 1.1 V and a peak reverse current of 500 μA.

Compact dimensions measuring 8.51 mm in length, 6.5 mm in width, and 3.3 mm in height. Suitable for discrete semiconductor and power rectification applications. Manufactured in Thailand, ensuring quality production standards.

Complies with no specific standards or automotive certifications. Explore the complete range of Bridge Rectifiers and power semiconductor components available at EnvMart for dependable industrial and electronic applications.
