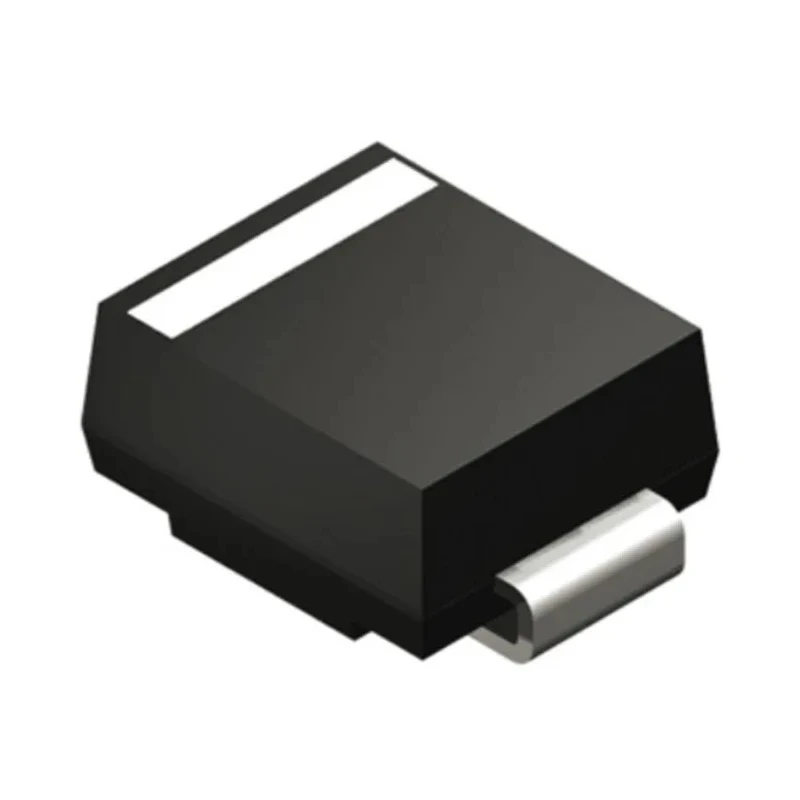

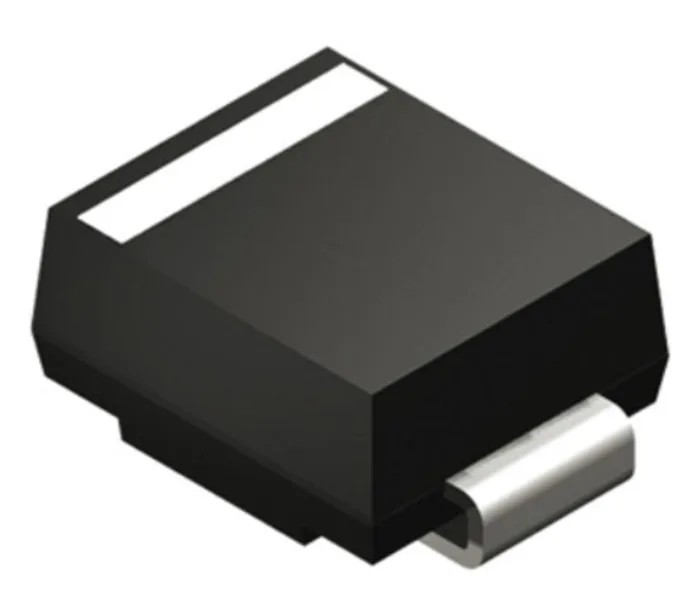

Fagor Electronica 1, 6.8 V Zener Diode, Single 3 W 5% Surface Mount DO-214AA SMB Z2SMB6V8 TRTB
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Fagor Electronica |
| Height | 2.2mm |
| Length | 5.1mm |
| Model | Z2SMB6V8 TRTB |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AA (SMB) |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 3W |
| Diode Configuration | Single |
| Test Current It | 100mA |
| Maximum Reverse Leakage Current | 10μA |
| Nominal Zener Voltage Vz | 6.8V |
| Maximum Zener Impedance | 2Ω |
Key Features
- This diode is a surface mount type, housed in DO-214AA (SMB) package.
- It features a tight Zener voltage tolerance of ±5% for reliable voltage regulation.
- The maximum power dissipation rating is 3 W, suitable for medium power applications.
- Operating temperature ranges from -65°C to 150°C, ensuring durability across conditions.
- It has a maximum Zener impedance of 2 Ω, supporting stable voltage characteristics.
- The package has a compact length of 5.1 mm and height of 2.2 mm, suitable for PCB mounting.
- Pin count is 2, providing straightforward installation in circuits.
- Maximum reverse leakage current is 10 μA, enhancing efficiency.
Product Description
Fagor Electronica Z2SMB6V8 TRTB is a high-quality 6.8 V Zener diode designed for industrial and electronic applications requiring reliable voltage regulation. It is a single element Zener diode packaged in a surface mount DO-214AA (SMB) format, supporting operational power dissipation of up to 3 W and optimized for compact PCB layouts.
The diode features a 5% voltage tolerance, ensuring precision in voltage stabilization tasks. Its robust operating temperature span from -65°C to 150°C allows for versatile usage in harsh environments, including industrial control systems, power supplies, and signal conditioning applications.
This Zener diode exhibits low maximum reverse leakage current of 10 μA and a maximum Zener impedance of 2 Ω, which contribute to efficient and stable voltage regulation. The device is tested at 100 mA current, meeting standard reliability and performance benchmarks.
With dimensions of 5.1 mm length and 2.2 mm height, the compact DO-214AA (SMB) package ensures easy integration into surface mount technology (SMT) assembly lines, improving manufacturing efficiency. The 2-pin configuration aids in straightforward circuit implementation for voltage reference and protection circuits.
This diode is surface mount type suitable for modern PCB applications. Nominal Zener voltage is 6.8 V with ±5% tolerance for accuracy. Maximum power dissipation of 3 W supports a wide range of medium power applications. Operating temperature range is wide at -65°C to 150°C for durability.
Low reverse leakage current and low impedance offer stable performance. Compact size ensures optimal PCB space utilization. Ideal for industrial electronics, power supply regulation, and signal conditioning.
Manufactured in Thailand, this product maintains high-quality standards from Fagor Electronica. It is ideal for electronics manufacturing, industry applications, and replacement use in repair and prototyping projects. Explore related components in the EnvMart Semiconductor and Zener Diode categories for comprehensive electronic solutions.
Explore more products in our Zener Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 6.8 V, with a tolerance of ±5%.
The maximum power dissipation rating for this model is 3 W, making it suitable for medium power applications.
This diode operates within a temperature range of -65°C to 150°C, allowing for use in various environmental conditions.
The dimensions of the DO-214AA (SMB) package are 5.1 mm in length and 2.2 mm in height.
This model has a pin count of 2, which simplifies its installation in circuits.
The maximum Zener impedance of this diode is 2 Ω, which supports stable voltage characteristics.
This diode is a surface mount type, designed for easy integration into PCB layouts.
The test current for this Zener diode is 100 mA, which is used for performance testing.
This Zener diode is manufactured in Thailand, adhering to quality standards set by Fagor Electronica.
This model is suitable for industrial electronics, power supply regulation, and signal conditioning applications.
This diode has a single element configuration, making it a single Zener diode.
