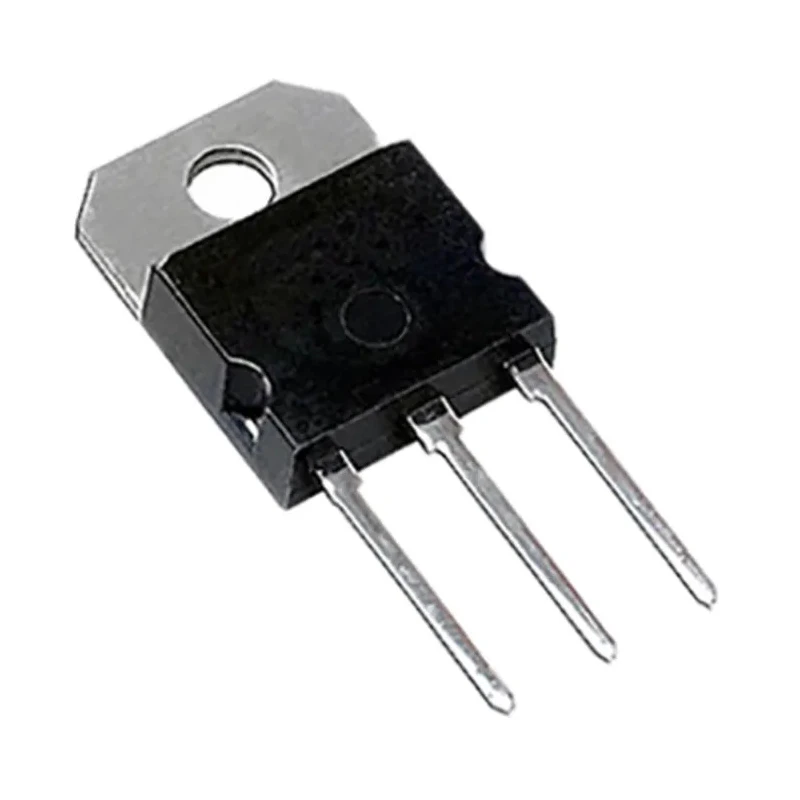

Fagor Electronica Thyristor SCR 1200 V, 50 A Rated Current, 80 mA Gate Trigger Current FS5030QP00TU
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Fagor Electronica |
| Model | FS5030QP00TU |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-3P |
| Minimum Operating Temperature | -40°C |
| Pin Count | 4 |
| Rated Average On-State Current Irms | 50A |
| Thyristor Type | SCR |
| Repetitive Peak Reverse Voltage VDRM | 1200V |
| Surge Current Rating | 610A |
| Maximum Gate Trigger Current Igt | 80mA |
| Maximum Holding Current Ih | 150mA |
| Maximum Gate Trigger Voltage Vgt | 1.3V |
| Peak On-State Voltage | 1.9V |
| Repetitive Peak Off-State Current | 5mA |
Key Features
- Supports repetitive peak reverse voltage up to 1200 V.
- Surge current rating of 610 A for high transient performance.
- Maximum gate trigger current of 80 mA for reliable switching.
- Operates in temperature range from -40°C to 125°C.
- 4-pin TO-3P package suitable for through-hole mounting.
- Peak on-state voltage of 1.9 V to optimize conduction losses.
- Repetitive peak off-state current limited to 5 mA for stable operation.
- Manufactured in Thailand ensuring quality standards.
Product Description
Fagor Electronica FS5030QP00TU is a silicon-controlled rectifier (SCR) thyristor designed for efficient power switching applications. It features a TO-3P package suitable for through-hole mounting, making it ideal for industrial, laboratory, and manufacturing environments where reliable current control is required.
This device supports a repetitive peak reverse voltage of 1200 V and can handle surge currents up to 610 A, thus accommodating high transient conditions. The rated average on-state current is 50 A, ensuring stable conduction under continuous operation.
The maximum gate trigger current of 80 mA facilitates precise triggering, while the holding current of 150 mA guarantees effective latching. The thyristor operates safely within a temperature range from -40°C to 125°C, making it suitable for harsh operating environments.
It features a 4-pin configuration and a peak on-state voltage drop of 1.9 V, optimizing power efficiency and minimizing conduction losses. The repetitive peak off-state current is limited to 5 mA, contributing to the device's reliability.
This product has no additional standards or automotive certifications but complies with environmental RoHS requirements. Originating from Thailand, it meets international manufacturing benchmarks.
Ideal for use in power conversion, industrial controls, motor drives, and HVAC systems, this thyristor is a robust component capable of enhancing system efficiency and durability. Supports repetitive peak reverse voltage up to 1200 V.
Surge current rating of 610 A for high transient performance. High maximum gate trigger current of 80 mA. Wide operating temperature range from -40°C to 125°C. 4-pin TO-3P package for through-hole mounting. Manufactured in Thailand, ensuring quality and reliability.
Explore more semiconductor solutions and thyristors on EnvMart for your industrial and electronic component needs.
Explore more products in our Semiconductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 125°C.
It has a rated average on-state current of 50 A.
The surge current rating of this unit is 610 A, allowing it to handle high transient conditions.
The maximum gate trigger current for this model is 80 mA.
It uses a through-hole mounting type, specifically in a TO-3P package.
The peak on-state voltage drop is 1.9 V, which helps to optimize conduction losses.
The minimum operating temperature for this thyristor is -40°C.
This thyristor features a 4-pin configuration.
The maximum holding current for this model is 150 mA.
The repetitive peak off-state current is limited to 5 mA, contributing to the device's reliability.
This thyristor is manufactured in Thailand, ensuring quality standards.
