| Country of Origin | Thailand |
|---|---|
| Brand | Fagor Electronica |
| Height | 1.2mm |
| Length | 3.1mm |
| Model | FS1JW TRTB |
| Width | 2mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-123W |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1.5A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Single |
| Peak Reverse Current Ir | 50μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 1.1V |
| Peak Reverse Recovery Time trr | 1.8μs |

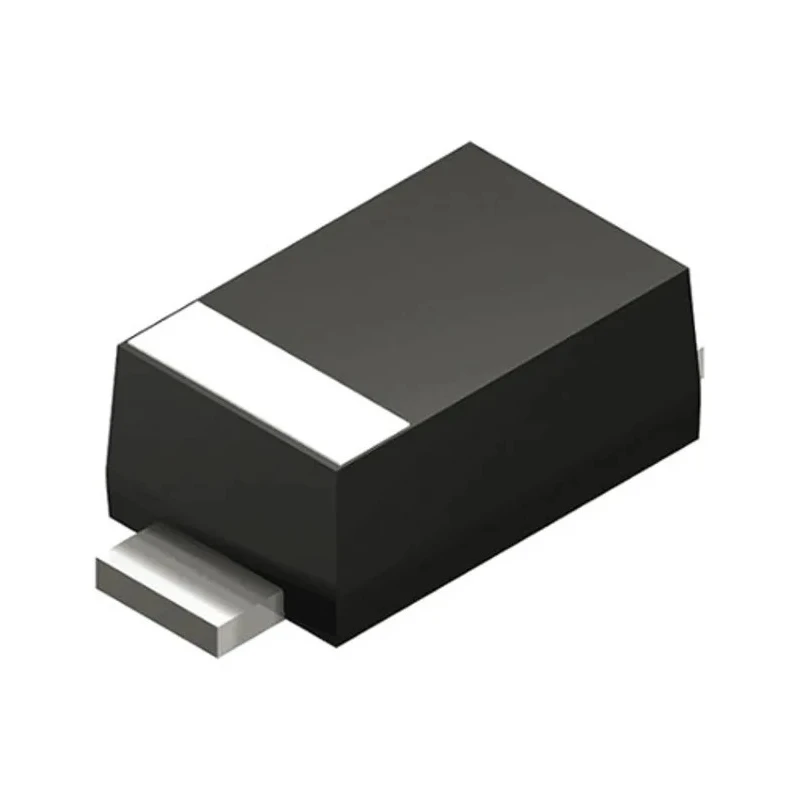

Fagor Electronica FS1JW TRTB is a surface mount single diode designed for industrial and automotive electronic applications requiring efficient rectification and switching. It is housed in a small SOD-123W package with two pin connections, optimizing PCB space usage.
With a peak reverse repetitive voltage rating of 600 V and a maximum continuous forward current of 1.5 A, this diode is suited for medium power rectification tasks. The maximum forward voltage drop of 1.1 V helps minimize power losses during conduction.
Its operating temperature range from -55°C to 150°C allows use in challenging thermal environments including automotive electronics complying with AEC-Q101 standards. The diode's peak reverse recovery time of 1.8 microseconds enables rapid switching, beneficial for power conversion and switching power supplies.
Physical dimensions are compact with 3.1 mm length, 2 mm width, and 1.2 mm height, facilitating high density PCB layouts in precise industrial and automotive equipment. Manufactured with high-grade silicon technology in Thailand, it ensures quality and reliability.
Surface mount package type SOD-123W for compact installations. Maximum continuous forward current of 1.5 A for medium power circuits. High peak reverse voltage of 600 V ensures circuit protection. Fast peak reverse recovery time of 1.8 μs for efficient switching.
Wide temperature operating range supports automotive and industrial conditions.
This diode is ideal for use in automotive electronics, power rectifiers, switching power supplies, and general industrial semiconductor applications. Its compliance with automotive standards assures long-term reliability in harsh operating conditions.
