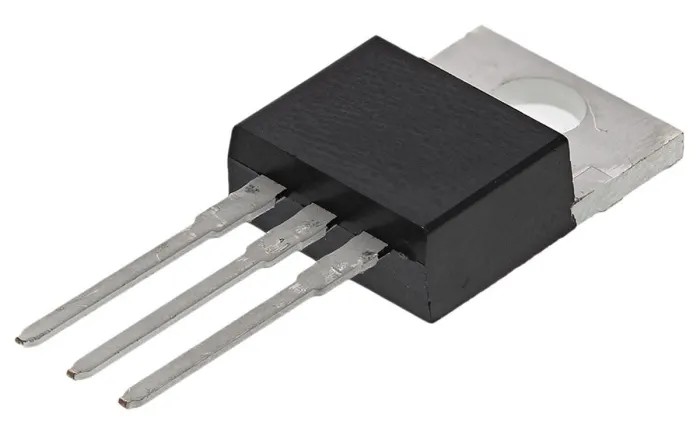

Fagor Electronica Through Hole 3-Pin TRIAC 800 V, Gate Trigger 1.3 V FT2516NJ TU
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Fagor Electronica |
| Height | 15.68mm |
| Length | 10.24mm |
| Model | FT2516NJ TU |
| Mount Type | Through Hole |
| Configuration | Single |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-220AB |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Rated Average On-State Current Irms | 25A |
| Repetitive Peak Reverse Voltage VDRM | 800V |
| Maximum Gate Trigger Current Igt | 50mA |
| Maximum Holding Current Ih | 75mA |
| Maximum Gate Trigger Voltage Vgt | 1.3V |
| Peak On-State Voltage | 1.55V |
| Repetitive Peak Off-State Current | 3mA |
| Peak Gate Power Dissipation | 1W |
Key Features
- Supports rated average on-state current of 25 A for robust power handling.
- Features a TO-220AB package allowing easy through-hole mounting in circuits.
- Maximum gate trigger current of 50 mA enables reliable switching control.
- Operates across a temperature range from -40°C to 125°C for durability.
- Designed for high commutation applications including motor and inductive loads.
- Single configuration TRIAC suitable for various AC power control uses.
- Peak on-state voltage is 1.55 V ensuring efficient conduction during operation.
- Repetitive peak off-state current of 3 mA to maintain off-state integrity.
Product Description
Fagor Electronica FT2516NJ TU is a high commutation, three-quadrant TRIAC featuring a 3-pin, through-hole, TO-220AB package designed for easy integration in power electronic circuits. It is rated for an average on-state current of 25 A and repetitive peak reverse voltage of 800 V, suitable for controlling AC motors and inductive loads where high commutation rates are required.
This TRIAC offers a low gate trigger voltage of 1.3 V and a maximum gate trigger current of 50 mA, enabling reliable switching with minimal control power. It withstands operating temperatures from -40°C to 125°C, ensuring dependable performance in harsh environments encountered in industrial and HVAC systems.
The device’s peak on-state voltage of 1.55 V ensures efficient conduction, while a peak gate power dissipation rating of 1 W allows for durable triggering operations. Its repetitive peak off-state current is limited to 3 mA, providing excellent off-state leakage performance.
Designed to often eliminate the need for snubber circuits, this TRIAC integrates effectively into motor control, power regulation, and lighting dimming applications. Its single configuration supports three-quadrant operation with high commutation capacity.
Rated average on-state current: 25 A. Repetitive peak reverse voltage: 800 V. Gate trigger voltage: 1.3 V maximum. Operating temperature range: -40°C to 125°C. Package type: TO-220AB through hole. Peak gate power dissipation: 1 W.
Manufactured in Thailand. Ideal for industrial, laboratory, and HVAC applications requiring robust AC power control components. Explore more Fagor Electronica TRIACs and Discrete Semiconductors in our Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rated average on-state current for this model is 25 A, suitable for robust power handling.
The maximum gate trigger voltage for this TRIAC is 1.3 V, allowing for reliable switching control.
The maximum gate trigger current is 50 mA, which enables effective control with minimal power.
It operates across a temperature range from -40°C to 125°C, ensuring performance in various environments.
The FT2516NJ TU uses a TO-220AB package type, designed for easy through-hole mounting.
The peak on-state voltage is 1.55 V, which ensures efficient conduction during operation.
The maximum holding current for this model is 75 mA, which helps maintain stable operation.
The peak gate power dissipation rating is 1 W, allowing for durable triggering operations.
The repetitive peak off-state current is limited to 3 mA, providing excellent off-state leakage performance.
This TRIAC is designed for high commutation applications, including motor control, power regulation, and lighting dimming.
The FT2516NJ TU is manufactured in Thailand, ensuring compliance with quality standards.
