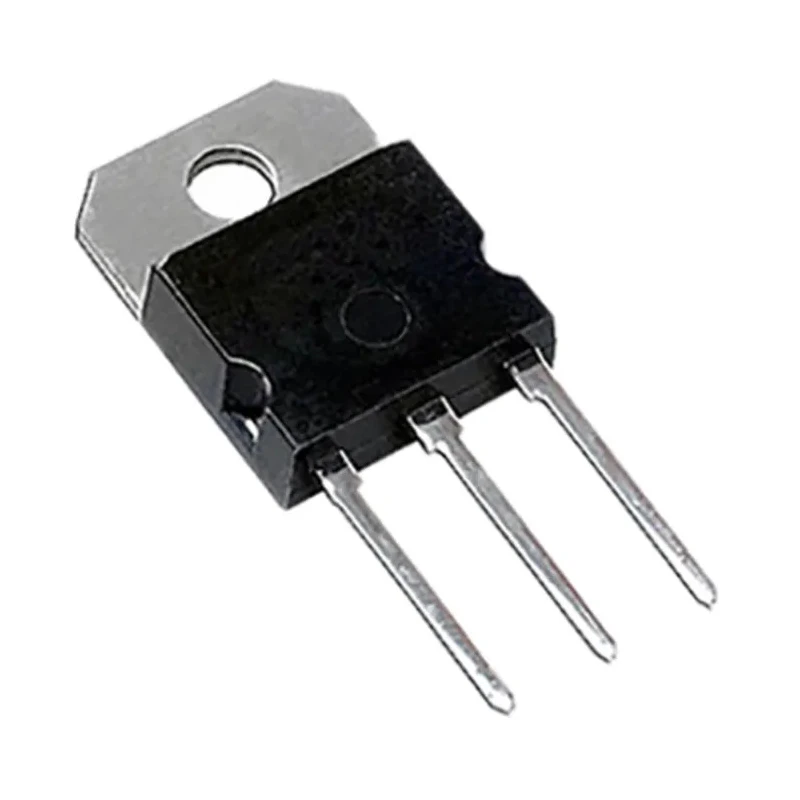

Fagor Electronica Thyristor SCR, TO-3P Package, 1200 V Repetitive Peak Reverse Voltage, 50 A Rated Average FS5030QP00TU

Free Delivery in India | Lowest Global Shipping Charges

Fagor Electronica Thyristor SCR, TO-3P Package, 1200 V Repetitive Peak Reverse Voltage, 50 A Rated Average FS5030QP00TU

Name: Fagor Electronica Thyristor SCR, TO-3P Package, 1200 V Repetitive Peak Reverse Voltage, 50 A Rated Average FS5030QP00TU
Brand: Fagor Electronica
SKU: 191589



Category Thyristors Brand Fagor Electronica Condition New

Specifications

Country of Origin	Thailand
Brand	Fagor Electronica
Model	FS5030QP00TU
Mount Type	Through Hole
Maximum Operating Temperature	125°C
Package Type	TO-3P
Minimum Operating Temperature	-40°C
Pin Count	4
Rated Average On-State Current Irms	50A
Thyristor Type	SCR
Repetitive Peak Reverse Voltage VDRM	1200V
Surge Current Rating	610A
Maximum Gate Trigger Current Igt	80mA
Maximum Holding Current Ih	150mA
Maximum Gate Trigger Voltage Vgt	1.3V
Peak On-State Voltage	1.9V
Repetitive Peak Off-State Current	5mA

Key Features

Features a TO-3P package for reliable through-hole mounting.
Capable of surge current ratings up to 610 A to withstand transient conditions.
Gate trigger current maximum is 80 mA for precise control.
Operates efficiently in temperatures ranging from -40°C to a maximum of 125°C.
Maximum gate trigger voltage is 1.3 V ensuring sensitive gate operation.
Incorporates a peak on-state voltage of 1.9 V to minimize power loss.
Designed with a 4-pin configuration for ease of integration into circuits.
Maximum holding current rated at 150 mA to maintain conduction state.

Product Description

Fagor Electronica FS5030QP00TU is a high-quality thyristor based on SCR technology, primarily designed for switching and phase control applications in industrial, electronic, and power systems contexts.

This device features a durable TO-3P package type for secure and robust through-hole mounting, making it suitable for a variety of power control and conversion equipment. It offers a repetitive peak reverse voltage (VDRM) of 1200 V and a rated average on-state current of 50 A, providing reliable performance under demanding electrical conditions.

Its surge current rating of 610 A allows it to handle transient currents effectively, enhancing circuit protection and longevity. The maximum gate trigger current of 80 mA and gate trigger voltage of 1.3 V provide precise and efficient gate operation essential for controlled switching.

Thermal operation range extends from a minimum of -40°C up to a maximum of 125°C, supporting diverse environmental conditions. With a peak on-state voltage of 1.9 V and a maximum holding current of 150 mA, the FS5030QP00TU maintains low conduction losses and stable operation.

The product is manufactured in Thailand and delivered in new condition, making it suitable for use in advanced industrial, manufacturing, power supply, and electronic component applications.

Features a TO-3P package for reliable through-hole mounting. Capable of surge current ratings up to 610 A. Maximum gate trigger current of 80 mA and voltage of 1.3 V. Operating temperature range from -40°C to 125°C. Rated average on-state current of 50 A and repetitive peak reverse voltage of 1200 V.

Designed for industrial power control and switching applications. Manufactured in Thailand with assured quality. Explore more advanced Thyristors and power semiconductor components in our Electronics & Electricals category at EnvMart for reliable and high-performance solutions.
