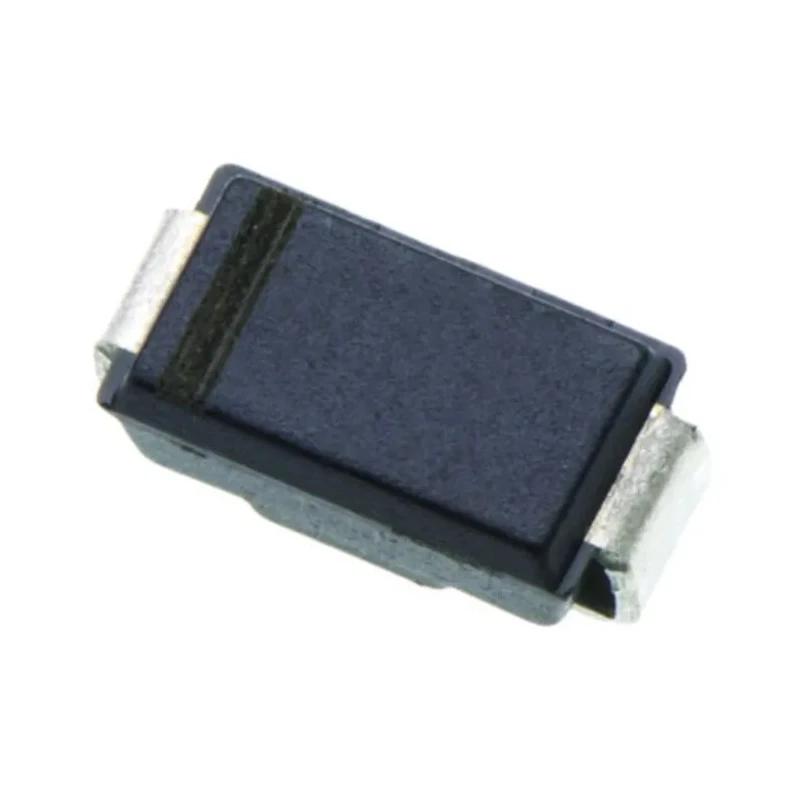

Fagor Electronica Uni-Directional TVS Diode 400 W, 2-Pin DO-214AC P4SMA27A
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Fagor Electronica |
| Height | 2mm |
| Length | 5.1mm |
| Model | P4SMA27A |
| Width | 2.6mm |
| Mount Type | Surface |
| Series | P4SMA |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AC (SMA) |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 37.5V |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 25.7V |
| Maximum Reverse Stand-off Voltage Vwm | 23.1V |
| Peak Pulse Power Dissipation Pppm | 400W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 11.2A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- Single element diode configuration ensures efficient transient voltage suppression.
- Operates within a voltage range with a minimum breakdown voltage of 25.7 V.
- Maximum reverse stand-off voltage is 23.1 V for reliable protection.
- Capable of peak pulse power dissipation of 400 W for high energy transient absorption.
- Functions over a wide temperature range from -65°C to 150°C.
- Clamping voltage is rated at 37.5 V to protect sensitive circuits.
- Supports a maximum peak pulse current of 11.2 A for robust transient handling.
- Compact dimensions with a length of 5.1 mm, width of 2.6 mm, and height of 2 mm suitable for dense PCB layouts.
Product Description
Fagor Electronica P4SMA27A is a Uni-Directional TVS Diode designed for transient voltage suppression in electronic circuits. This component is surface mountable in a DO-214AC (SMA) package and features a 2-pin configuration that allows for easy integration in PCB assemblies. It provides a peak pulse power dissipation of 400 W, making it suitable for safeguarding sensitive electronic components against voltage spikes and surges.
The diode configuration is single element, optimized for rapid response to transient voltage events. It has a minimum breakdown voltage of 25.7 V, a maximum reverse stand-off voltage of 23.1 V, and a clamping voltage of 37.5 V which together ensure reliable circuit protection under transient conditions. The device supports a maximum peak pulse current of 11.2 A and test current of 1 mA, enabling it to handle significant transient currents.
Designed to operate reliably over a temperature range of -65°C to 150°C, the diode is suitable for various industrial and commercial electronics applications where temperature extremes may be a concern. Its compact dimensions (5.1 mm length, 2.6 mm width, 2 mm height) provide space-saving benefits for dense circuit designs.
This model does not have specific automotive approvals or ESD protection features, focusing on general electronic applications in power and signal conditioning circuits. Manufactured in Thailand, it adheres to quality standards expected from Fagor Electronica components.
Single-element Uni-Directional TVS diode configuration. Surface mount DO-214AC (SMA) package with 2 pins. 400 W peak pulse power dissipation capability. Operating temperature range from -65°C to 150°C. Minimum breakdown voltage of 25.7 V and maximum reverse stand-off voltage of 23.1 V.
Clamping voltage of 37.5 V protects circuits during transients. Maximum peak pulse current rated at 11.2 A. Compact physical dimensions suitable for PCB mounting. Manufactured in Thailand.
This TVS Diode is ideal for industrial, manufacturing, electronic device protection, and general electronics applications requiring transient voltage suppression. It is widely used in power supply design, signal conditioning, and sensitive semiconductor device protection.
Explore the Electronics & Electricals category at EnvMart for more Fagor Electronica semiconductor components and discrete semiconductors to meet diverse industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The P4SMA27A has a peak pulse power dissipation capability of 400 W, allowing it to absorb high energy transients effectively.
This model operates reliably over a temperature range from -65°C to 150°C, making it suitable for various applications in extreme conditions.
The dimensions of the P4SMA27A are 5.1 mm in length, 2.6 mm in width, and 2 mm in height, which are compact for PCB layouts.
The clamping voltage of the P4SMA27A is rated at 37.5 V, which helps protect sensitive circuits during transient events.
The minimum breakdown voltage of this diode is 25.7 V, which is critical for its operation in transient voltage suppression.
This model supports a maximum peak pulse current of 11.2 A, allowing it to manage significant transient currents effectively.
The diode is packaged in a DO-214AC (SMA) surface mount package, which is suitable for various PCB applications.
This model features a 2-pin configuration, facilitating easy integration into PCB assemblies.
The P4SMA27A has a single element diode configuration, optimized for efficient transient voltage suppression.
This diode is manufactured in Thailand, adhering to the quality standards expected from Fagor Electronica components.
The P4SMA27A is suitable for industrial, manufacturing, and general electronics applications requiring transient voltage suppression.
