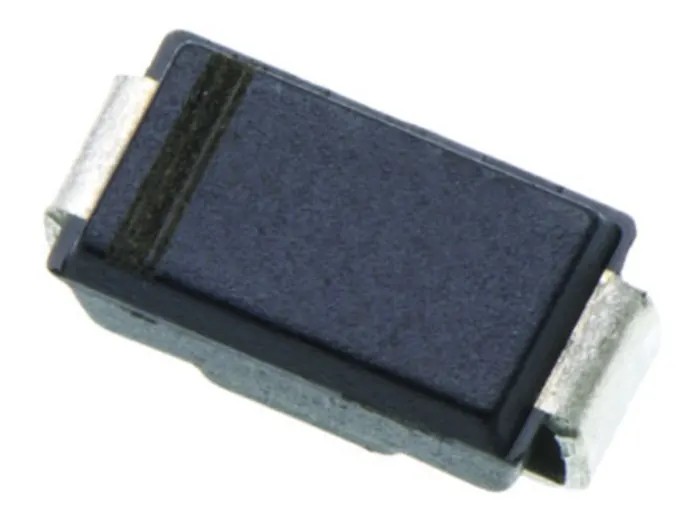

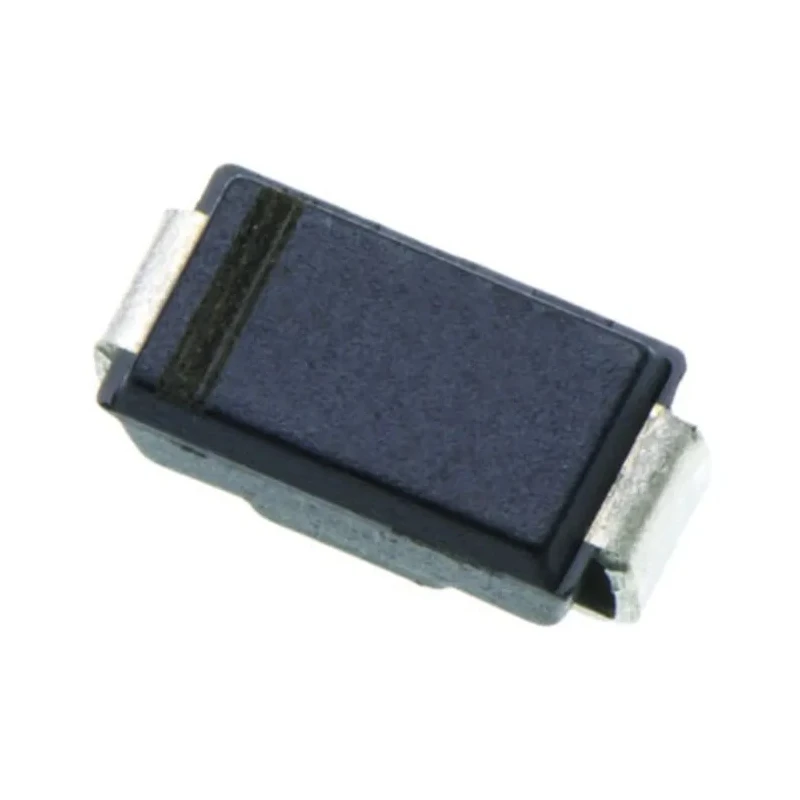

Fagor Electronica 1-Element Uni-Directional TVS Diode 400 W, 2-Pin DO-214AC P4SMA27A
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Fagor Electronica |
| Height | 2mm |
| Length | 5.1mm |
| Model | P4SMA27A |
| Width | 2.6mm |
| Mount Type | Surface |
| Series | P4SMA |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AC (SMA) |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 37.5V |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 25.7V |
| Maximum Reverse Stand-off Voltage Vwm | 23.1V |
| Peak Pulse Power Dissipation Pppm | 400W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 11.2A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- Single diode configuration with uni-directional operation mode.
- Minimum breakdown voltage of 25.7 V ensures precise voltage protection.
- Surface mount type with 2-pin DO-214AC (SMA) package for PCB assembly.
- Maximum peak pulse current rating of 11.2 A for transient voltage suppression.
- Operating temperature range from -65°C to 150°C for robust performance.
- Maximum reverse leakage current of 1 μA minimizes power loss during standby.
- Clamping voltage at 37.5 V for effective voltage spike clipping.
- Manufactured in Thailand with new product condition.
Product Description
Fagor Electronica P4SMA27A is a 1-element uni-directional transient voltage suppression (TVS) diode designed for protecting sensitive electronic circuits from voltage spikes and transient surges. With a peak pulse power dissipation rating of 400 W, this TVS diode is packaged in a surface-mount DO-214AC (SMA) form factor featuring 2 pins for easy integration on printed circuit boards.
The device features a minimum breakdown voltage of 25.7 V and a maximum reverse stand-off voltage of 23.1 V, ensuring reliable protection by clamping voltage surges up to 37.5 V. It is tested at a current of 1 mA and capable of handling peak pulse currents up to 11.2 A. The very low maximum reverse leakage current of 1 μA reduces power consumption in standby mode.
Operating safely in a wide temperature range from -65°C to 150°C, the P4SMA27A diode is suitable for demanding conditions in automotive and industrial electronics, telecom infrastructure, and power supply circuits. It complies with standard surface mount installation practices and comes without specific approvals or certifications.
This product is manufactured in Thailand and is supplied as new. Its compact dimensions (5.1 mm length, 2.6 mm width, 2 mm height) make it ideal for space-constrained applications requiring robust transient voltage protection.
Single diode configuration with uni-directional operation mode. Surface mount type with 2-pin DO-214AC (SMA) package for PCB assembly. Peak pulse power dissipation rating of 400 W. Minimum breakdown voltage of 25.7 V and clamping voltage of 37.5 V.
Maximum peak pulse current of 11.2 A and test current of 1 mA. Operating temperature range from -65°C to 150°C. Maximum reverse leakage current of 1 μA. Compact dimensions: 5.1 mm length, 2.6 mm width, 2 mm height. Suitable for transient voltage suppression in industrial, automotive, and electronic devices.
Explore more TVS Diodes and semiconductor components to enhance your electronic designs with reliable surge protection.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation rating of this diode is 400 W.
The minimum breakdown voltage for the P4SMA27A is 25.7 V.
The clamping voltage of this model is 37.5 V, which helps in voltage spike clipping.
The operating temperature range for the P4SMA27A is from -65°C to 150°C.
The maximum peak pulse current rating is 11.2 A, allowing for effective transient voltage suppression.
This diode uses a surface mount type DO-214AC (SMA) package, featuring 2 pins for PCB assembly.
The P4SMA27A has compact dimensions of 5.1 mm in length, 2.6 mm in width, and 2 mm in height.
The test current for this diode is 1 mA, which is used for its performance evaluation.
The diode configuration of the P4SMA27A is single and operates in a uni-directional mode.
This product is manufactured in Thailand.
This diode is suitable for protecting sensitive electronic circuits in automotive, industrial electronics, and telecom infrastructure.
