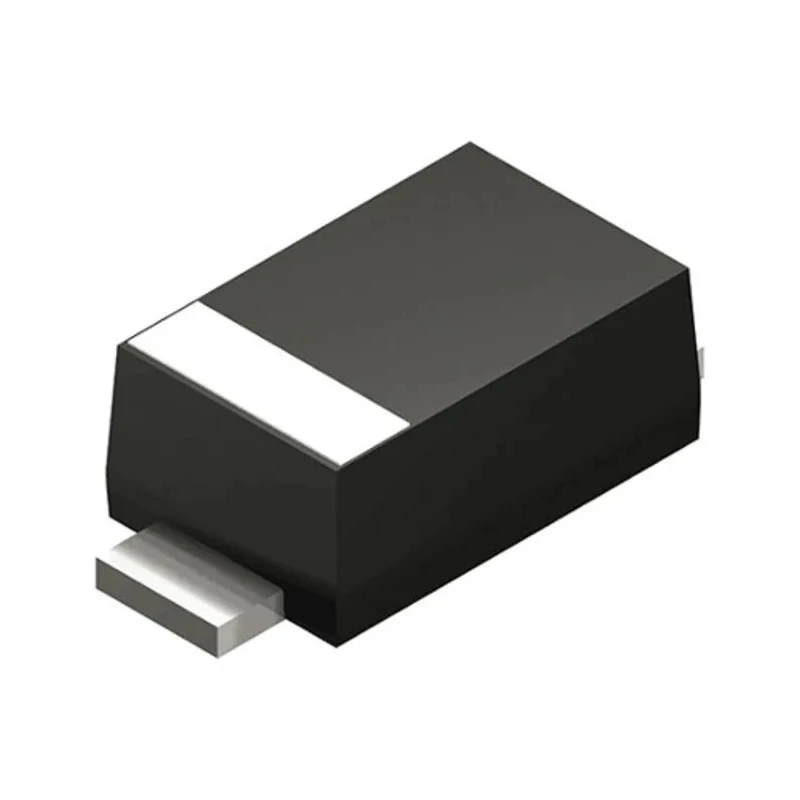

Fagor Electronica 1W Surface Mount 120V Zener Diode, Single 2-Pin SOD-123W BZD27C120W TRTB

Fagor Electronica BZD27C120W TRTB is a high precision single Zener diode designed for voltage regulation and protection in electronic circuits. It features a surface mount SOD-123W package with 2 pins, allowing compact and reliable mounting on printed circuit boards. With a nominal Zener voltage of 120 V and a maximum power dissipation of 1 W, it provides stable voltage clamping and surge protection in various industrial and automotive applications.

This Zener diode exhibits an exceptionally tight voltage tolerance of ±0.06%, contributing to accurate voltage referencing in circuits requiring precise voltage control. The maximum Zener impedance of 300 ohms supports maintaining voltage stability under varying load conditions, while the maximum reverse leakage current of just 1 µA reduces leakage power losses.

The device is suitable for operation in a wide temperature range from -65°C to 150°C, making it ideal for harsh environments including automotive and industrial electronics. The test current is specified at 5 mA ensuring consistent diode characteristics at specified operating conditions.

The diode is compliant with the automotive industry standard AEC-Q101, ensuring quality and reliability for vehicle electronics. Its compact dimensions of 3.8 mm length and 1.15 mm height facilitate integration into space-constrained electronic assemblies.

This Zener diode is widely used in power supplies, voltage clamping circuits, and as a voltage reference in industrial, automotive, and commercial electronics manufacturing. It ensures enhanced protection and stability in sensitive electronics and control systems.

Overall, the Fagor Electronica BZD27C120W TRTB offers reliable, high-quality voltage regulation with small footprint mounting to suit diverse circuit protection needs. Explore more Zener diodes and semiconductor devices to suit various electronic engineering applications on EnvMart.

Features surface mount SOD-123W package for compact PCB layouts. Has a tight voltage tolerance of ±0.06% ensuring high precision voltage regulation. Maximum Zener impedance of 300 ohms to maintain voltage stability. Operates reliably between temperatures of -65°C and 150°C.

Test current is defined at 5 mA for performance verification. Maximum reverse leakage current is low at 1 µA, minimizing power loss. Compliant with automotive standard AEC-Q101 for automotive applications. Compact dimensions measuring 3.8 mm length and 1.15 mm height.
