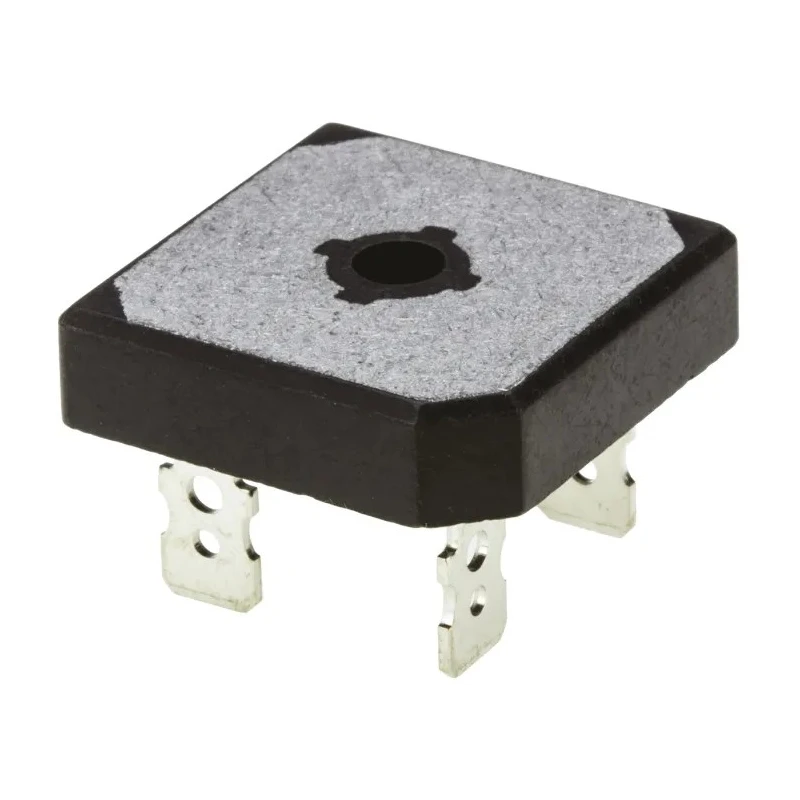

Vishay Bridge Rectifier, 400 V, 420 A, 4-Pin Single, Screw Mount VS-GBPC2504A

Vishay VS-GBPC2504A bridge rectifier is a high-performance semiconductor device designed for converting alternating current (AC) to direct current (DC) using full-wave rectification in a compact 4-pin single configuration. It supports a peak repetitive reverse voltage of 400 V and withstands a peak non-repetitive forward surge current of up to 420 A, making it suitable for demanding industrial and electronic power applications.

The device operates efficiently within a wide temperature range from -55°C minimum to 150°C maximum, ensuring stable performance in harsh environments. It utilizes a screw mount type and features a universal 3-way terminal system allowing push-on, wrap around, or soldered connections, enhancing installation flexibility. The GBPC style package offers an excellent power-to-volume ratio with a compact size of 28.6 mm length, 28.6 mm width, and a thin profile of 7.7 mm height, which provides high thermal conductivity while maintaining electrical isolation.

This bridge rectifier has a forward current rating of 25 A and a low peak forward voltage drop of 1.1 V, contributing to operational efficiency with minimal power loss. The peak reverse current remains very low at 5 μA, supporting reliable long-term operation without excessive leakage. It is part of the VS-GBPC series with no automotive standard certification but is designed to meet general industry reliability standards.

Typical industrial uses include power supply rectification, motor control circuits, battery charging, and other full-wave AC to DC conversion tasks in manufacturing, HVAC, and electrical equipment. The device is suited for electronic components and power connector assemblies requiring robust diode bridges.

Operates in temperature extremes from -55°C to 150°C maximum. Mounting via screw terminal enhances secure fixture and connectivity. Compact GBPC package suitable for high power density applications. Universal 3-way terminals supporting multiple connection methods.

High surge current capacity up to 420 A peak for transient loads. Low forward voltage drop of 1.1 V improves power efficiency. 4-pin single-phase configuration for versatile electronic assembly. Non-automotive grade standard compliant providing reliable performance.

Available with comprehensive technical documents and 3D models to assist PCB and mechanical design integration in industrial and laboratory settings. For detailed specifications and certification documents, please consult Vishay Semiconductor resources.

Explore Vishay Bridge Rectifiers and related semiconductor products to find optimal solutions for your power conversion needs at EnvMart.
