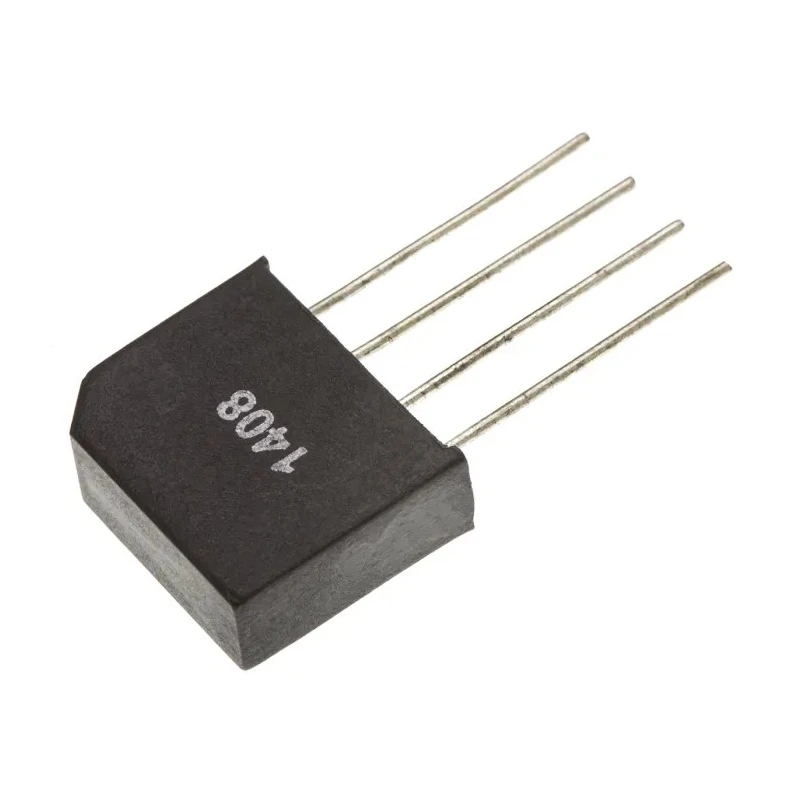

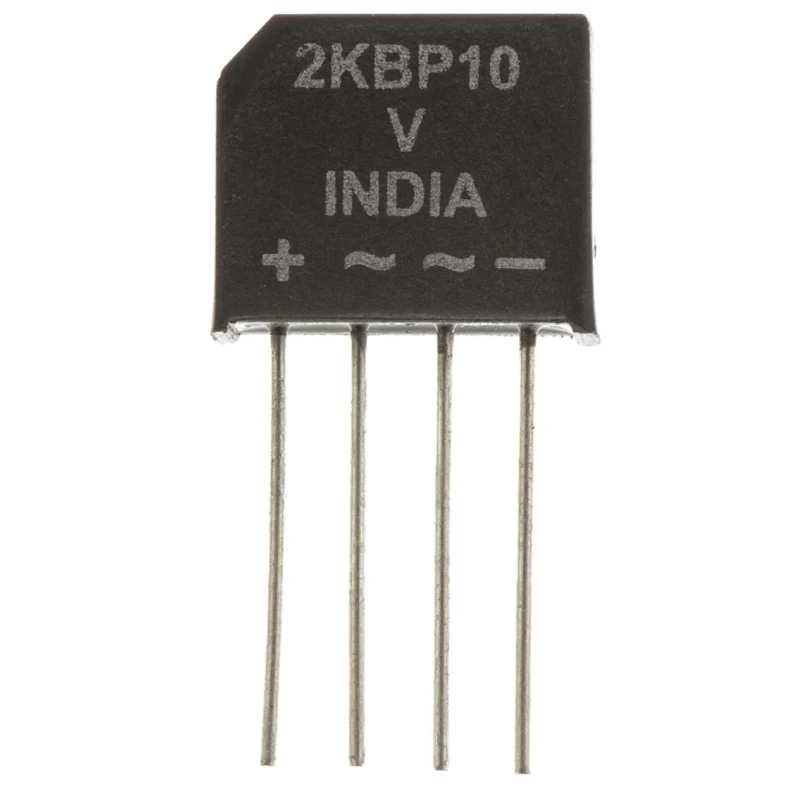

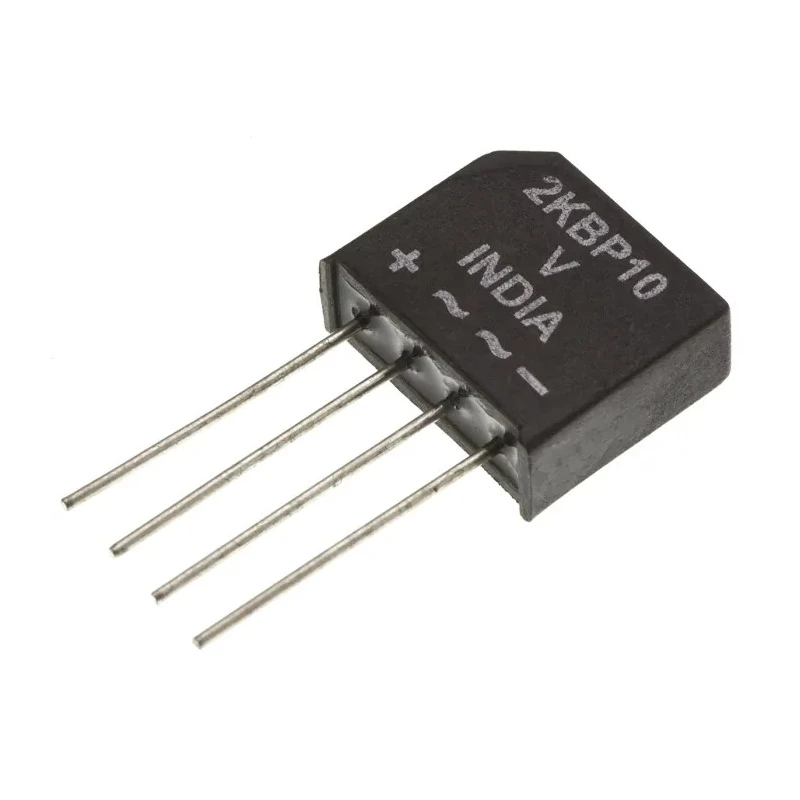

Vishay Bridge Rectifier 1000 V 63 A 4-Pin Single Through Hole D-44 Package VS-2KBP10

Free Delivery in India | Lowest Global Shipping Charges

Vishay Bridge Rectifier 1000 V 63 A 4-Pin Single Through Hole D-44 Package VS-2KBP10

Name: Vishay Bridge Rectifier 1000 V 63 A 4-Pin Single Through Hole D-44 Package VS-2KBP10
Brand: Vishay
SKU: 182929
Price: 2.25 USD
Availability: InStock



Category Bridge Rectifier Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	15mm
Length	17.5mm
Model	VS-2KBP10
Width	6.8mm
Mount Type	Through Hole
Series	VS-2KBP
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	D-44
Minimum Operating Temperature	-40°C
Number of Phases	1
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	1000V
Peak Reverse Current Ir	10μA
Peak Non-Repetitive Forward Surge Current Ifsm	63A
Forward Current If	2A
Peak Forward Voltage Vf	1V
Vishay Bridge Rectifier, 2A, 1000V, 4-PinBrand	Vishay
HY Electronic Corp Bridge Rectifier, 2A, 1000V, 4-PinBrand	HY Electronic Corp

Key Features

Rated forward current of 2 amperes suitable for industrial applications.
Mount type is through hole with D-44 package for PCB mounting.
Operates effectively between -40°C and 150°C maximum temperature.
Compact size with dimensions 17.5 mm length, 15 mm height, and 6.8 mm width.
Peak forward voltage drop is 1 volt, ensuring efficient conduction.
Low peak reverse current leakage of 10 microamperes for reliable performance.
Designed for single-phase bridge rectification with four pins and single configuration.
Ideal for industrial and consumer electronic equipment requiring full-wave rectification.

Product Description

Vishay VS-2KBP10 Bridge Rectifier is a robust semiconductor device designed for full-wave rectification in AC to DC conversion applications. It features a peak reverse repetitive voltage (Vrrm) of 1000 volts and a surge current capacity (Ifsm) of 63 amperes, making it suitable for demanding industrial and consumer electronic environments.

This 4-pin single-phase bridge rectifier uses a through-hole mounting in a compact D-44 package, facilitating reliable soldering on printed circuit boards (PCBs). Its thermal operating range is from -40°C to 150°C, ensuring dependable operation under temperature variations.

The device has a rated forward current (If) of 2 A and a low peak forward voltage drop (Vf) of 1 V, optimizing efficiency while minimizing power loss. Additionally, it maintains a low peak reverse current leakage (Ir) of only 10 microamperes to ensure superior electrical performance.

The VS-2KBP10 series is engineered by Vishay to meet high surge current demands and compactness, suitable for varied industrial applications such as power supplies, inverters, and motor drives. This bridge rectifier unit supports single-phase circuits and aids in converting alternating current into direct current effectively.

Rated forward current of 2 amperes suitable for industrial applications. Mount type is through hole with D-44 package for PCB mounting. Operates effectively between -40°C and 150°C maximum temperature. Compact size with dimensions 17.5 mm length, 15 mm height, and 6.8 mm width.

Peak forward voltage drop is 1 volt, ensuring efficient conduction. Low peak reverse current leakage of 10 microamperes for reliable performance. Designed for single-phase bridge rectification with four pins and single configuration.

Ideal for industrial and consumer electronic equipment requiring full-wave rectification.

Suitable for industrial, manufacturing, and electronic equipment development use cases requiring reliable power conversion and handling of surge currents in compact footprint devices.
