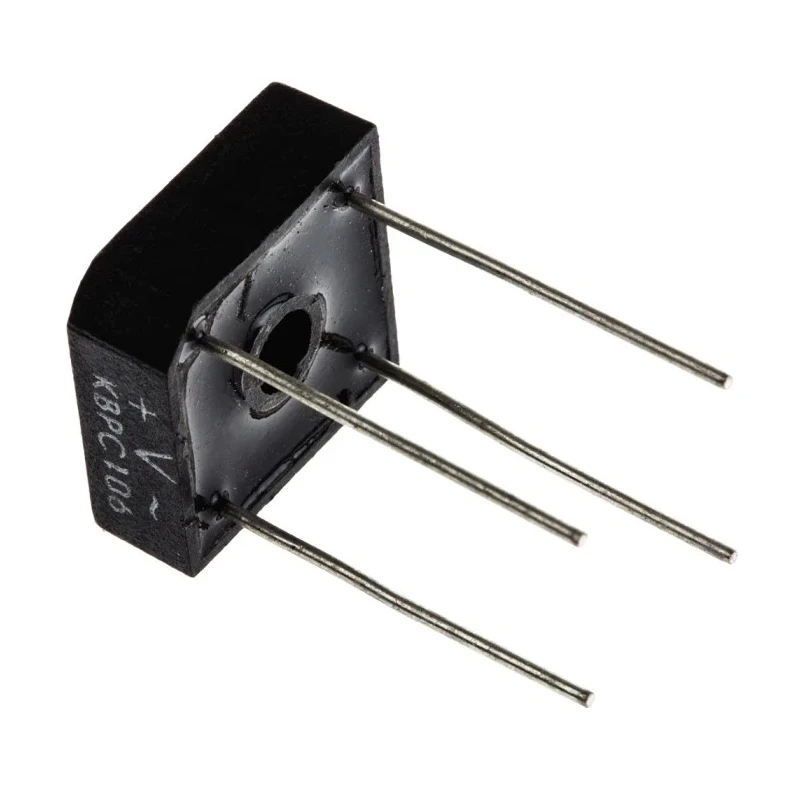

Vishay Bridge Rectifier 600 V 55 A 4-Pin Single VS-KBPC106
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 6.35mm |
| Length | 16.7mm |
| Model | VS-KBPC106 |
| Width | 16.7mm |
| Mount Type | Through Hole |
| Series | VS-KBPC1 |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | D-46 |
| Minimum Operating Temperature | -40°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 55A |
| Forward Current If | 3A |
| Peak Forward Voltage Vf | 1.1V |
Key Features
- Designed for full-wave rectification of AC to DC using four diodes arranged in a bridge format.
- Through-hole mount type with D-46 package ensures reliable PCB installation.
- Supports single phase operation with a forward current of 3 A and withstands peak repetitive voltage of 600 V.
- Operates reliably within a temperature range of -40°C to 150°C for industrial and electronic applications.
- Compact dimensions of 16.7 mm length, 16.7 mm width, and 6.35 mm height.
- Features low forward voltage of 1.1 V and peak reverse current of 10 μA for efficient operation.
- Manufactured in India with a robust construction for PCB or chassis mounting.
- Suitable for use in power electronic circuits, converters, and other industrial semiconductor applications.
Product Description
Vishay VS-KBPC106 Bridge Rectifier is a high-performance power semiconductor device designed to convert alternating current (AC) to direct current (DC) through full-wave rectification. This 4-pin single bridge rectifier offers a peak reverse repetitive voltage of 600 V and can handle surge currents up to 55 A, making it ideal for demanding industrial and electronic circuits.
The rectifier is constructed in a compact D-46 through-hole mount package with precise dimensions of 16.7 mm length and width, and a height of 6.35 mm, allowing easy integration into printed circuit boards (PCB) or chassis mounts. It supports single-phase operation with continuous forward current up to 3 A, ensuring reliable performance across variable conditions.
Operating efficiently across a wide temperature range of -40°C to 150°C, the VS-KBPC106 maintains minimal forward voltage drop of 1.1 V and a peak reverse current of 10 μA. Its robust design from Vishay ensures durability in power rectification applications including power supplies, industrial converters, and electronic devices.
This device lacks specific automotive standards, focusing instead on general-purpose power electronics. Manufactured in India, the VSI-KBPC106 follows stringent quality standards to deliver consistent performance with no special approvals required.
Designed for full-wave rectification of AC to DC using four diodes arranged in a bridge format. Through-hole mount type with D-46 package ensures reliable PCB installation. Supports single phase operation with a forward current of 3 A and withstands peak repetitive voltage of 600 V.
Operates reliably within a temperature range of -40°C to 150°C for industrial and electronic applications. Compact dimensions of 16.7 mm length, 16.7 mm width, and 6.35 mm height. Features low forward voltage of 1.1 V and peak reverse current of 10 μA for efficient operation.
Manufactured in India with a robust construction for PCB or chassis mounting. Suitable for use in power electronic circuits, converters, and other industrial semiconductor applications. Explore more Vishay semiconductor components and Bridge Rectifiers on EnvMart for your industrial electronic solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The VS-KBPC106 has a peak reverse repetitive voltage of 600 V.
This model can handle a maximum forward current of 3 A.
The dimensions of this unit are 16.7 mm in length, 16.7 mm in width, and 6.35 mm in height.
It operates reliably within a temperature range of -40°C to 150°C.
This bridge rectifier uses a through-hole mount type with a D-46 package.
The peak non-repetitive forward surge current for the VS-KBPC106 is 55 A.
It features a low forward voltage drop of 1.1 V.
The peak reverse current for the VS-KBPC106 is 10 μA.
Yes, this model supports single-phase operation.
The VS-KBPC106 is manufactured in India.
It is suitable for power electronic circuits, converters, and other industrial semiconductor applications.
This bridge rectifier has a pin count of 4.
