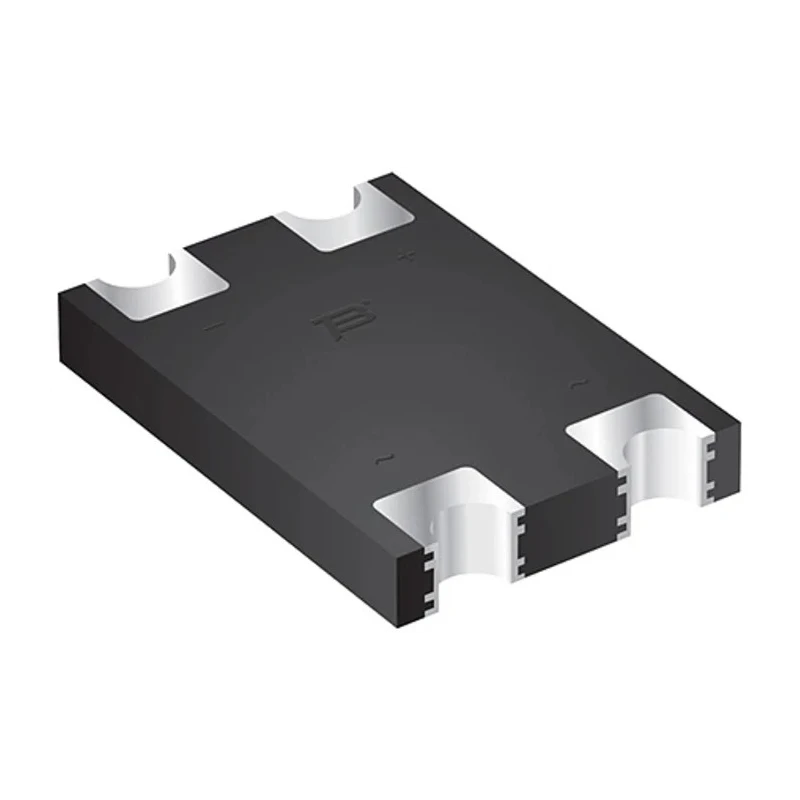

Bourns Bridge Rectifier 600 V 60 A 4-Pin Single Surface Mount SMT CD-MBL206SL

Bourns CD-MBL206SL Bridge Rectifier is a compact and efficient semiconductor device designed to convert alternating current (AC) to direct current (DC) in electronic circuits. This 4-pin single configuration rectifier comes in a surface mount SMT package, making it suitable for modern compact PCB applications. It supports a peak reverse repetitive voltage of 600 volts and a forward current of 2 amperes, with a peak non-repetitive forward surge current of 60 amperes, making it capable of handling high electrical loads.

The device operates reliably across a wide temperature range from -55°C to 175°C, ensuring durability in demanding industrial and commercial environments. Its physical dimensions of 5.9 mm length, 5.4 mm width, and 1.35 mm height allow for effective space utilization on printed circuit boards. The bridge rectifier configuration consists of four pins and is ideal for single-phase AC to DC conversion tasks.

With a peak forward voltage drop of 960 millivolts and a low peak reverse current of 5 microamperes, the CD-MBL206SL achieves efficient power conversion with minimal energy loss. This rectifier is widely used in power supplies, industrial automation, electronic devices, and various semiconductor applications where reliable rectification is required.

Compact low-profile SMT package for space-saving applications. Peak Reverse Repetitive Voltage of 600 volts supports robust AC to DC conversion. Forward current rating of 2 amperes with a peak forward surge current of 60 amperes.

Operates reliably within a temperature range of -55°C to 175°C. Measures 5.9 mm length, 5.4 mm width, and 1.35 mm height for easy PCB integration. Designed for single-phase AC to DC rectification with 4 pins for secure mounting.

Peak forward voltage drop of 960 millivolts ensures efficient operation. Low peak reverse current of 5 microamperes minimizes power loss. Made with high performance semiconductor materials for durability. Suitable for electronic, power and connector semiconductor applications.

This Bourns bridge rectifier is a reliable component for industrial, laboratory, construction, manufacturing, HVAC, and other electronic power supply systems. It meets the requirements for a wide range of electronic applications and is packaged to optimize production insertion efficiency.

Explore the full range of Bridge Rectifiers and related electronic components on EnvMart for high quality and dependable performance.
