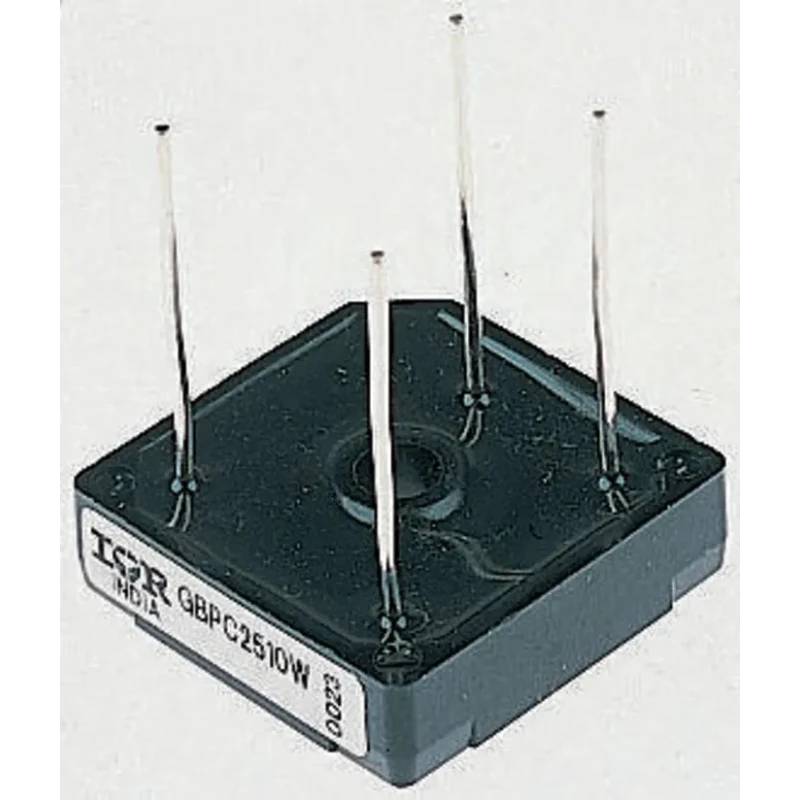

Vishay Bridge Rectifier 1000 V 25 A 300 A Peak Surge 4-Pin Through Hole GBPC-W Package VS-GBPC2510W

Free Delivery in India | Lowest Global Shipping Charges

Vishay Bridge Rectifier 1000 V 25 A 300 A Peak Surge 4-Pin Through Hole GBPC-W Package VS-GBPC2510W

Name: Vishay Bridge Rectifier 1000 V 25 A 300 A Peak Surge 4-Pin Through Hole GBPC-W Package VS-GBPC2510W
Brand: Vishay
SKU: 182944
Price: 4.38 USD
Availability: InStock



Category Bridge Rectifier Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	7.62mm
Length	28.8mm
Model	VS-GBPC2510W
Width	28.8mm
Mount Type	Through Hole
Series	VS-GBPC
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	GBPC-W
Minimum Operating Temperature	-55°C
Number of Phases	1
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	1000V
Peak Reverse Current Ir	5μA
Peak Non-Repetitive Forward Surge Current Ifsm	300A
Forward Current If	25A
Peak Forward Voltage Vf	1.1V
Vishay Bridge Rectifier, 1200 V 420 A, 4-Pin SingleBrand	Vishay

Key Features

Operates with a maximum temperature of 150°C.
Features a 4-pin single configuration suitable for through-hole mounting.
Designed to handle peak non-repetitive forward surge current of 300 A.
Compact GBPC-W package with dimensions 28.8 mm × 28.8 mm × 7.62 mm.
Utilizes low thermal resistance for efficient heat dissipation.
Peak forward voltage drop is 1.1 V ensuring efficient conduction.
Minimum operating temperature is -55°C for reliable performance in varied conditions.
Suitable for PCB or chassis mounting in industrial and electronics applications.

Product Description

Vishay VS-GBPC2510W Bridge Rectifier is engineered for converting AC input into DC output through full-wave rectification, supporting industrial and electronic applications that require reliable power conversion.

The device supports a peak reverse repetitive voltage (Vrrm) of 1000 V and a continuous forward current of 25 A. It is capable of withstanding peak non-repetitive forward surge currents up to 300 A ensuring robust performance under transient conditions. Its single-phase 4-pin configuration in a GBPC-W package facilitates easy through-hole PCB mounting.

The rectifier has a maximum operating temperature of 150°C and minimum operating temperature of -55°C, making it suitable for use in harsh environments. It features low thermal resistance for efficient thermal management, extended component life, and system reliability.

Physical dimensions are 28.8 mm in length and width with a height of 7.62 mm, making it compact and space-saving for electronic assemblies. The peak forward voltage drop of 1.1 V aids in reducing power losses during operation. It does not conform to automotive standards but is suited for general industrial semiconductor applications.

This Bridge Rectifier series is optimal for power supply units, inverters, motor drives, and other electronics requiring high voltage and current handling with a reliable diode bridge configuration. Its robust construction ensures durability and efficiency in various industrial, manufacturing, and electronic systems.

Operates reliably under maximum 150°C temperature. Supports through-hole mounting for PCB integration. Handles peak surge currents up to 300 A safely. Compact GBPC-W package design for space efficiency. Ensures low power loss with 1.1 V forward voltage drop.

Wide operating temperature range from -55°C to 150°C. Suitable for full-wave power rectification in industrial electronics. Explore more Vishay semiconductor products for high performance and reliability at EnvMart.
