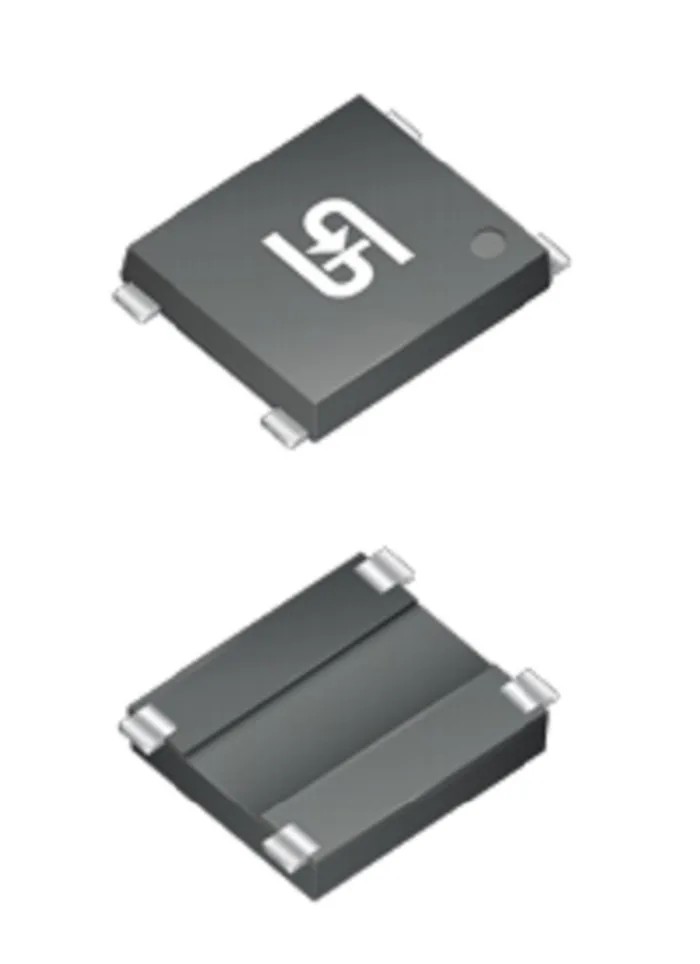

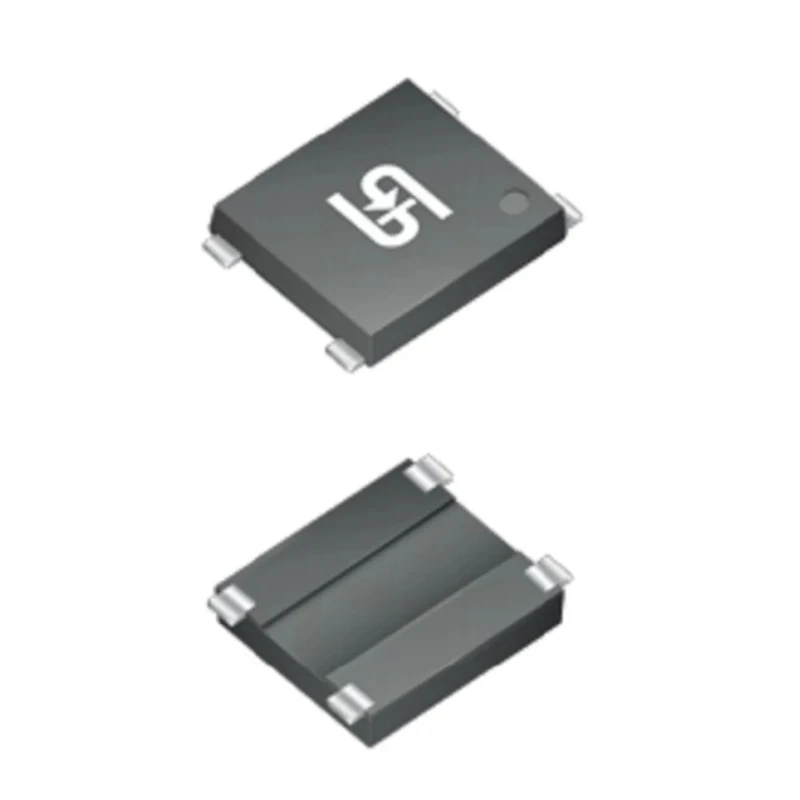

Taiwan Semiconductor Bridge Rectifier, 600 V, 110 A, 4-Pin Quad YBS3005G

Taiwan Semiconductor YBS3005G Bridge Rectifier is a high-quality electronic component designed for efficient AC to DC conversion in various electronic circuits. Featuring a 4-pin quad configuration and YBS package type, this surface mount bridge rectifier is engineered for automated PCB assembly lines. The device supports a peak reverse repetitive voltage (Vrrm) of 600 V and a continuous forward current (If) of 3 A, making it suitable for power rectification tasks in industrial, commercial, and consumer electronics.

The rectifier chip utilizes a glass passivated junction, enhancing its reliability and durability under demanding operating conditions. It can sustain peak surge currents up to 110 A, supporting transient load scenarios without damage. Operating temperature range from -55°C to +150°C allows wide application flexibility, especially in harsh thermal environments.

This component complies with important standards including IEC 61249-2-21, RoHS, and UL, ensuring regulatory safety and environmental compliance. The halogen-free construction aligns with modern green electronics initiatives. Its moisture sensitivity level 1 per J-STD-020 simplifies handling and storage procedures.

Common applications include switching mode power supplies (SMPS), power adapters, lighting controls, and other semiconductor-based power conversion systems. The compact size with 6.7 mm length and 8.6 mm height dimension enables dense PCB layouts without compromising performance.

The bridge rectifier has a YBS package type compatible with automated surface mount technology. Peak reverse voltage rating of 600 V ensures robust insulation against voltage spikes. Forward current rating of 3 A supports moderate power applications.

Design includes glass passivated chip junction for stable electrical characteristics. 110 A peak non-repetitive forward surge current capability protects against transient loads. Compliant with IEC, RoHS, and UL standards for safety and environmental care.

Halogen-free to meet modern environmental regulations. Wide operating temperature range from -55°C to 150°C for diverse environments. Compact package dimension aids in space-constrained designs.

Taiwan Semiconductor's quality bridge rectifier YBS3005G is indispensable in industrial electronics, laboratory equipment, and power electronics manufacturing. It offers reliable rectification performance critical for efficient and durable electronics design. Browse the Electronics & Electricals category on EnvMart for more semiconductor components and Bridge Rectifier solutions.
