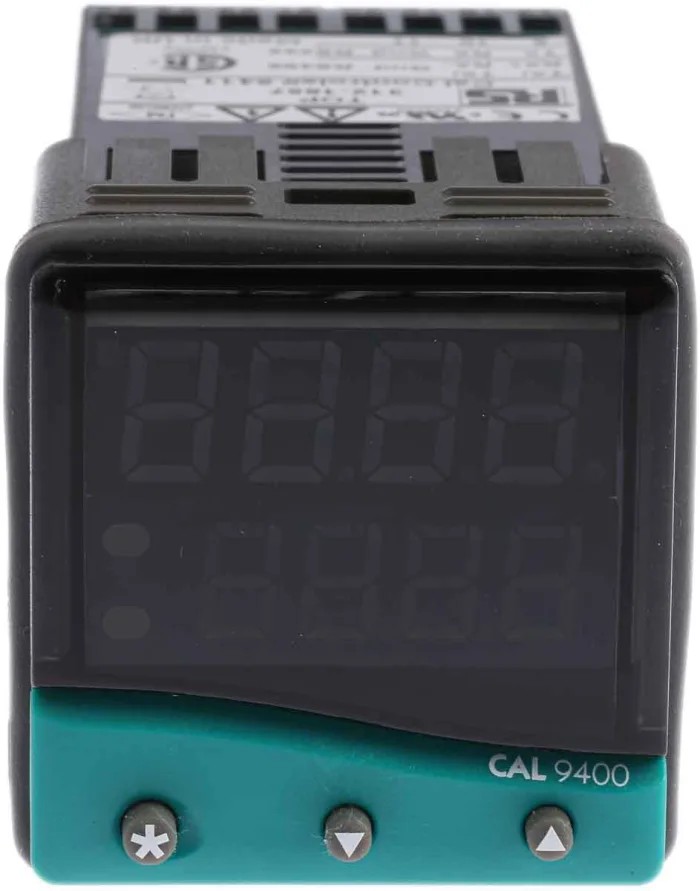

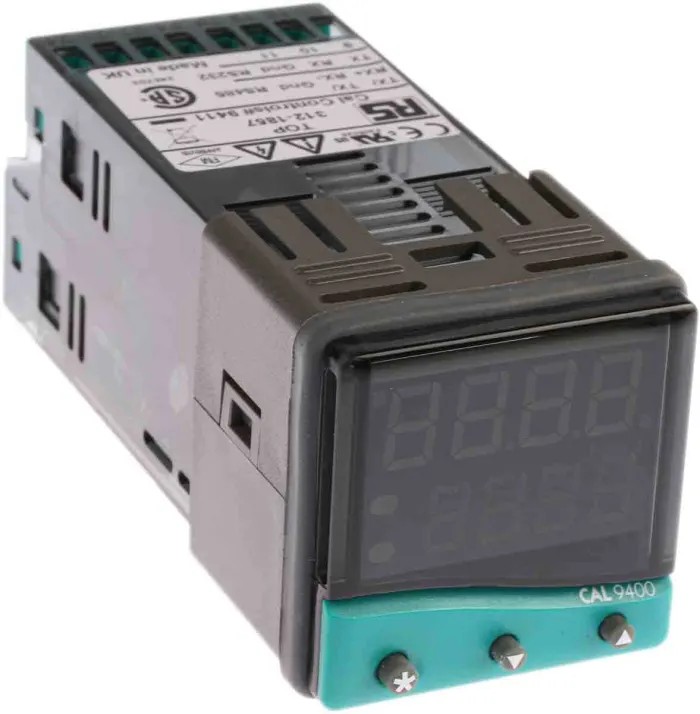

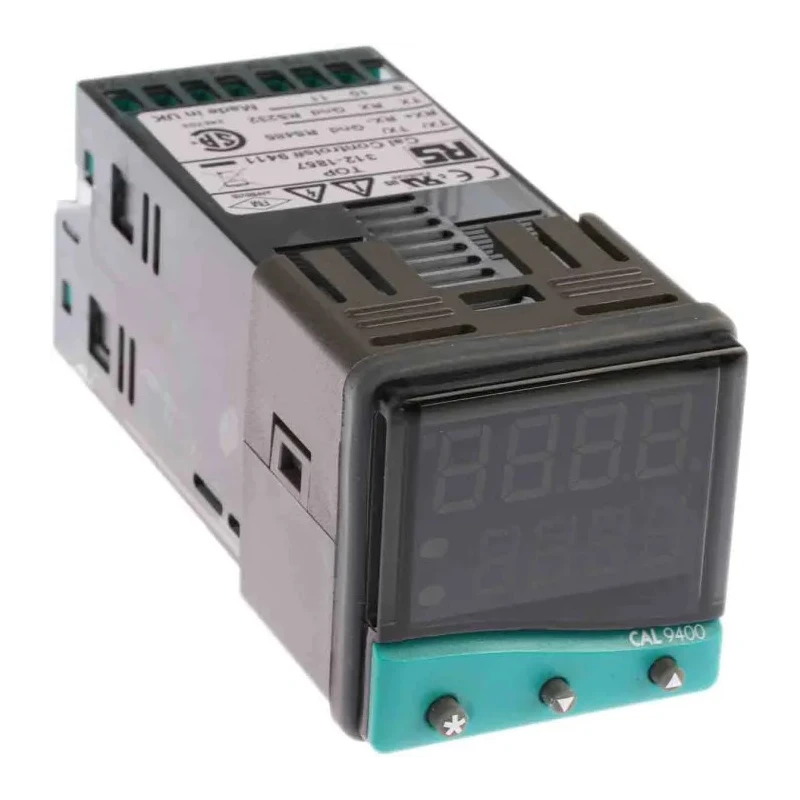

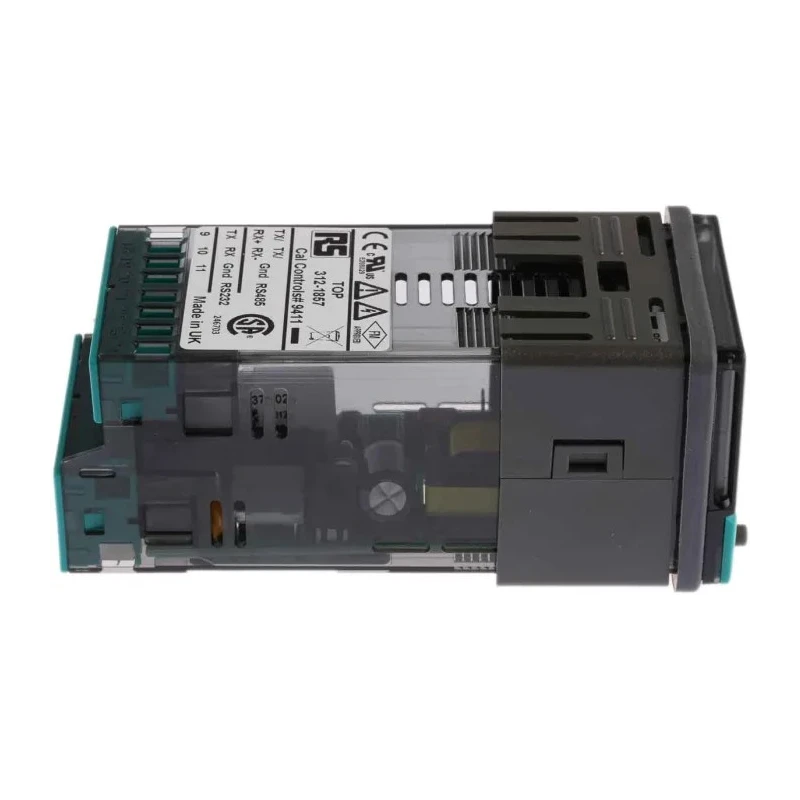

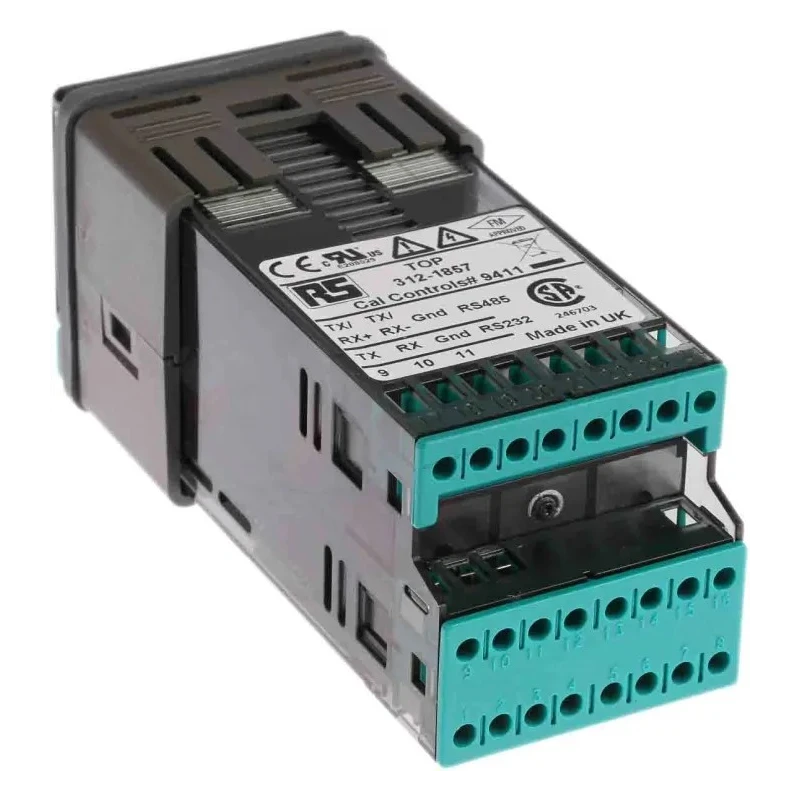

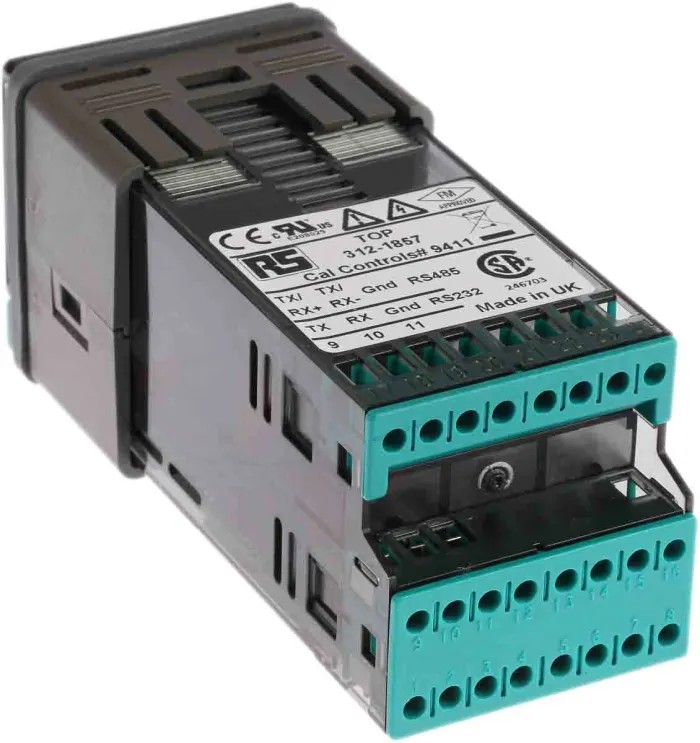

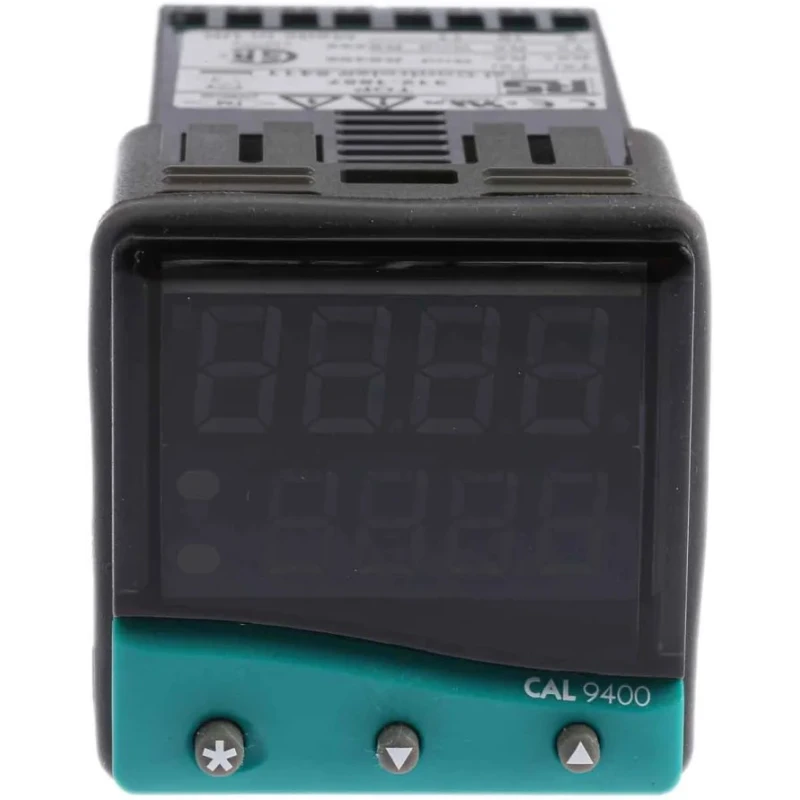

CAL 9400 Panel PID Temperature Controller, 2 Output Relay, 240V AC, 20mA Current, IP66 Rated 941100000

CAL 941100000 Panel PID Temperature Controller is designed for precise temperature control in demanding industrial, process control, and manufacturing environments. It operates with a supply voltage range of 100VAC to 240VAC and features two output relays with a maximum current of 20mA, making it suitable for diverse control applications requiring dual outputs.

The controller’s robust panel mounting design, rated IP66, protects it against dust and moisture, enabling operation in harsh and challenging conditions. The compact size of 48mm width and height (1/16 DIN standard) with 106.7mm panel depth facilitates straightforward installation in standard control panels.

This device supports input from multiple sensor types, including nine thermocouple classes and PT100 RTD sensors, ensuring versatile compatibility with temperature measurement devices. The LED display provides a clear, easy-to-read 4-digit readout along with output indicator LEDs, enhancing user interaction and monitoring.

Equipped with a simple yet effective auto-tuning PID algorithm, the controller optimizes system response while minimizing overshoot via its unique DAC function. Users can configure single ramp/soak (dwell) programs for precise temperature profiles, supporting complex process sequences.

Calibration and in-depth configuration are facilitated by the CALgrafix software, allowing data logging and setup ease to meet advanced process requirements. The smoked fascia with rubberized tactile buttons provides impact resistance and positive feedback during operation.

Certifications include UL, FM, cUL, and CE compliance, verifying product safety and rigour. This controller is ideal for industrial automation, process control, HVAC, laboratory, and manufacturing applications requiring accurate, reliable temperature regulation with dual output control capabilities.

Features a 1 x 4 digit LED display with 2 output LEDs for clear status indication. Accepts inputs from 9 thermocouple types and PT100 sensors, supporting precise measurements. Equipped with simple and effective auto-tuning for optimized PID control.

Robust IP66 rated panel mount design ensures durability in harsh environments. Includes CALgrafix software for configuration and data logging capabilities. Supports single ramp/soak programming for flexible temperature profiling.

Complies with UL, FM, cUL, and CE standards for safety and performance assurance. Compact form factor with 48mm x 48mm panel size and 106.7mm depth for easy integration. Explore the CAL range and other Temperature Controllers and industrial instruments available at EnvMart to suit all your process control requirements.
