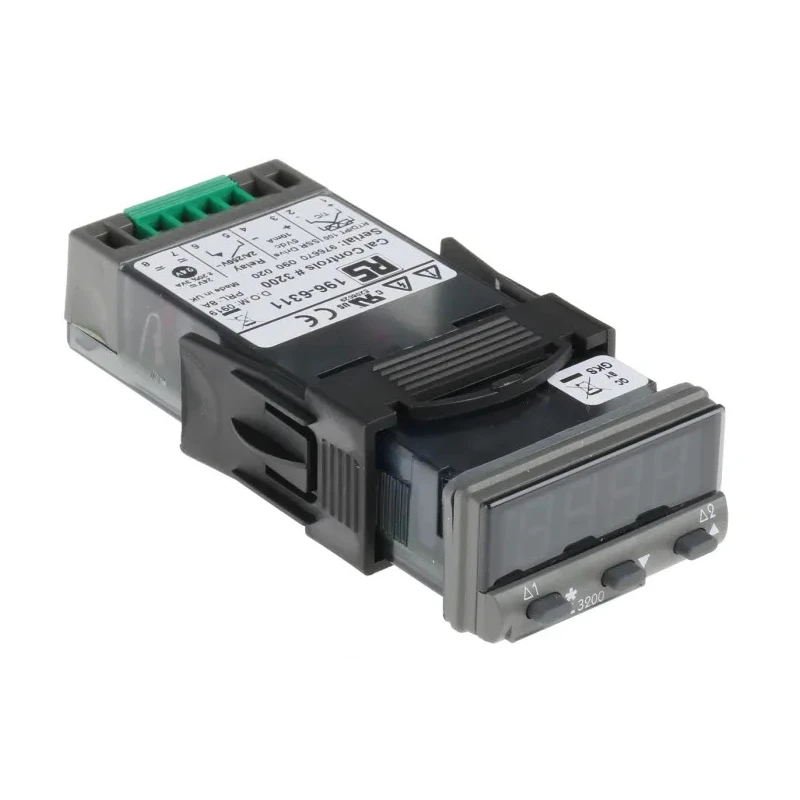

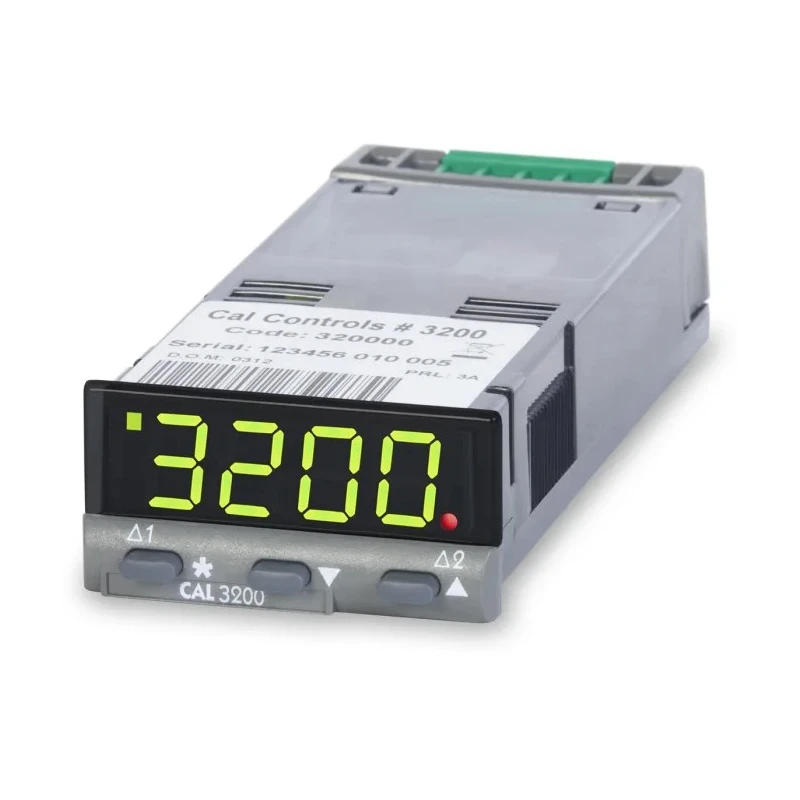

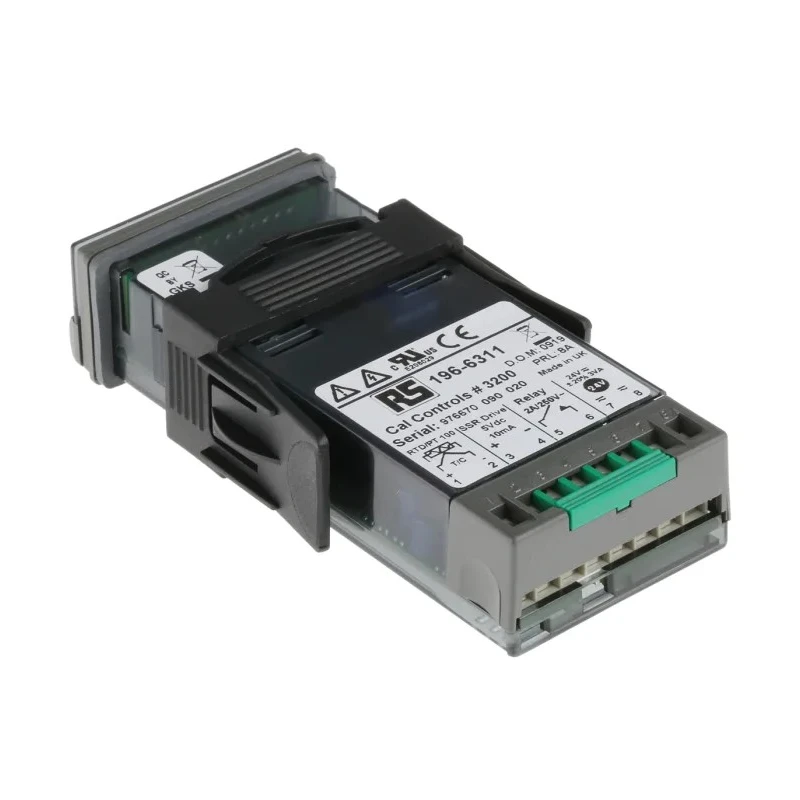

CAL PID Temperature Controller Panel Mount 24V AC/DC 2 Output Relay Model 320050

CAL 320050 PID Temperature Controller is an advanced panel mount device, purpose-built for precision temperature regulation in demanding industrial and scientific applications. This model features a compact 24mm by 48mm design fitting industry-standard 1/32DIN cut outs, paired with a durable IP65/NEMA 4X sealed fascia that protects against dust and low-pressure water jets, allowing reliable operation in harsh environments.

The controller supports dual relay outputs rated at 2 amps each as well as SSR drive capability for flexible control configurations. Its impact-resistant smoked fascia includes large rubberized buttons providing positive tactile feedback to ensure easy and reliable operation over the product’s lifetime.

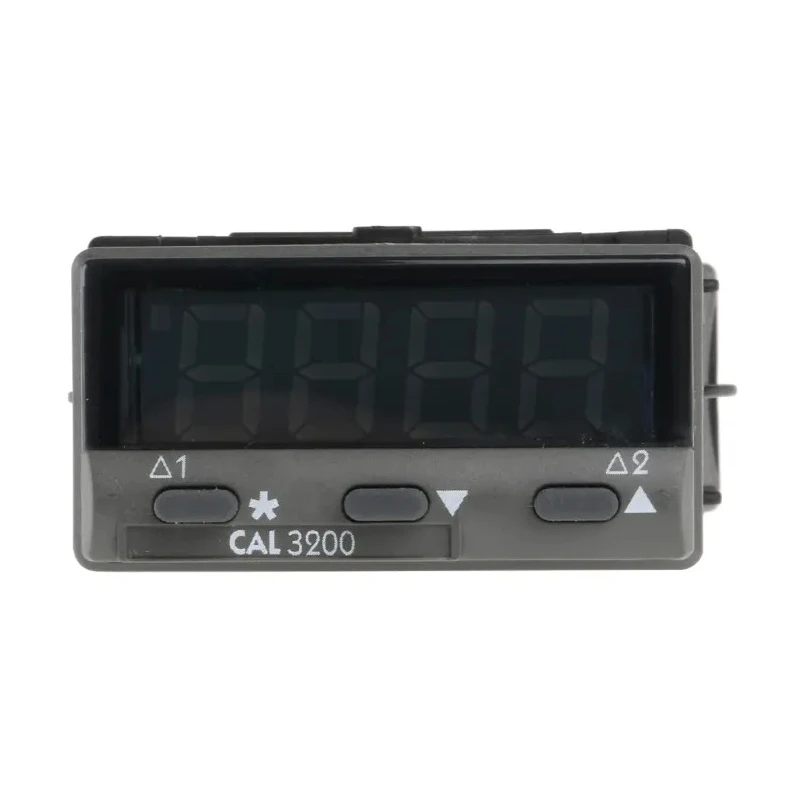

The device accepts a broad range of sensor inputs, including nine types of thermocouples and RTD/PT100 sensors, linearized across the operating range to maximize accuracy and application versatility. A 10mm four-digit bright LED display facilitates clear control status visibility under diverse lighting conditions.

CAL's unique autoregressive DAC-enhanced PID autotune algorithm minimizes temperature overshoot and simplifies controller setup. Additionally, five configurable alarm modes allow deviation and full-scale alarms suitable for most industrial safety and process monitoring needs.

This temperature controller operates with a maximum supply voltage of 24V AC/DC and an absolute maximum voltage rating up to 264V. Operating temperature range is 0°C to 50°C, ensuring suitability in various ambient conditions. Panel mounting and a panel depth of 102mm support ease of installation and integration.

Manufactured in the United Kingdom, the CAL 320050 model embodies reliability and high-quality engineering standard essential for process control environments such as manufacturing, laboratory automation, HVAC systems, and other industrial processes.

Ultra-compact 24mm x 48mm panel profile suitable for 1/32DIN cut out. Equipped with dual 2A relay outputs and SSR drive capability. Durable IP65/NEMA 4X rated sealed fascia with impact resistant smoked face. Supports 9 thermocouples plus RTD/PT100 sensor inputs for versatile applications.

Features auto-tune PID with unique DAC function minimizing overshoot. Bright 10mm LED display digits for clear operational visibility. Five alarm modes including deviation and full-scale alarms. Simple and efficient PID tuning process aiding reliable control.

Designed for industrial and scientific environments requiring durable temperature control. Manufactured in United Kingdom ensuring high build quality standards. Discover more about CAL Temperature Controllers at EnvMart for industrial temperature regulation solutions.
