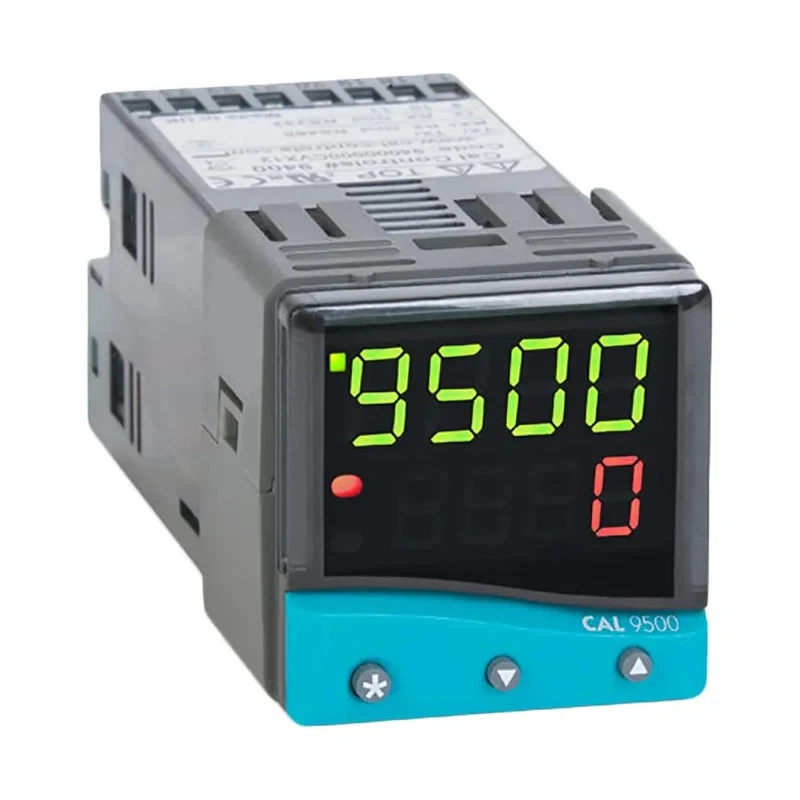

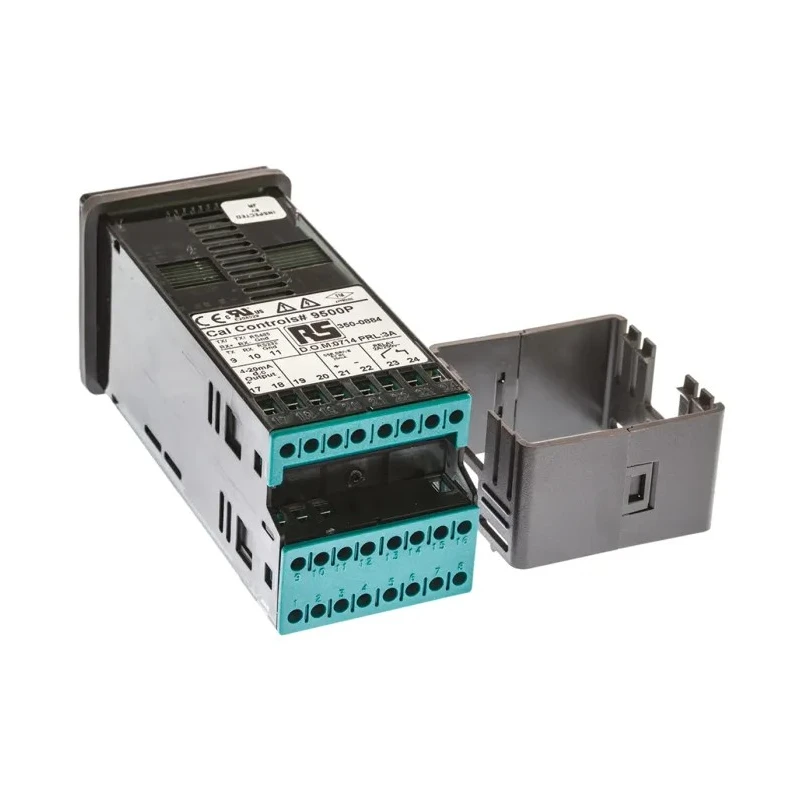

CAL 9500 Panel PID Temperature Controller, 2 Output Linear SSD, 240V AC, IP66, Panel Mount 95B21PA000

CAL 95B21PA000 Panel PID Temperature Controller offers precise temperature control with 2 linear SSD outputs on a compact 1/16DIN panel mount form factor. Operating at 240V AC, it is designed for both industrial and laboratory environments, capable of handling complex process control tasks with ease.

The device supports both PT100 and thermocouple input types, facilitating a wide range of temperature sensing methods. Its robust IP66 rated enclosure ensures reliable operation under harsh industrial conditions, protecting against dust and water ingress. The panel mount installation with dimensions 48mm width, 48mm length, and 106.7mm panel depth provides a space-efficient control solution.

The controller features a two-line, 4 digit LED display and rubberised buttons with tactile feedback ensuring user-friendly operation even in demanding environments. An advanced autotuning algorithm simplifies PID parameter settings and a unique dAC function minimizes overshoot, enhancing the controller's responsiveness and stability.

Programmable with up to 31 temperature programs consisting of 126 segments, this controller accommodates complex temperature profiles in manufacturing or process automation. The dual output configuration supports linear and solid state relay control with a maximum current of 20mA.

Certified to CE, cUL, FM, and UL standards, the CAL 9500 series ensures safety and compliance required for industrial applications. The integration with CALgrafix configuration and datalogging software provides comprehensive control and monitoring capabilities, making it an essential component for process control, HVAC, laboratory, and manufacturing automation.

Country of origin: United Kingdom.

This product is ideal for industries requiring high precision and durability in temperature control, including chemical processing, food and beverage, pharmaceuticals, and laboratory instrumentation.

Robust IP66 rated panel mount enclosure for durable industrial use. Supports multiple input types including PT100 and thermocouple sensors. Two output linear SSD channels with performance-tuned PID control. Simple and intuitive user interface with LED display and rubberised buttons.
