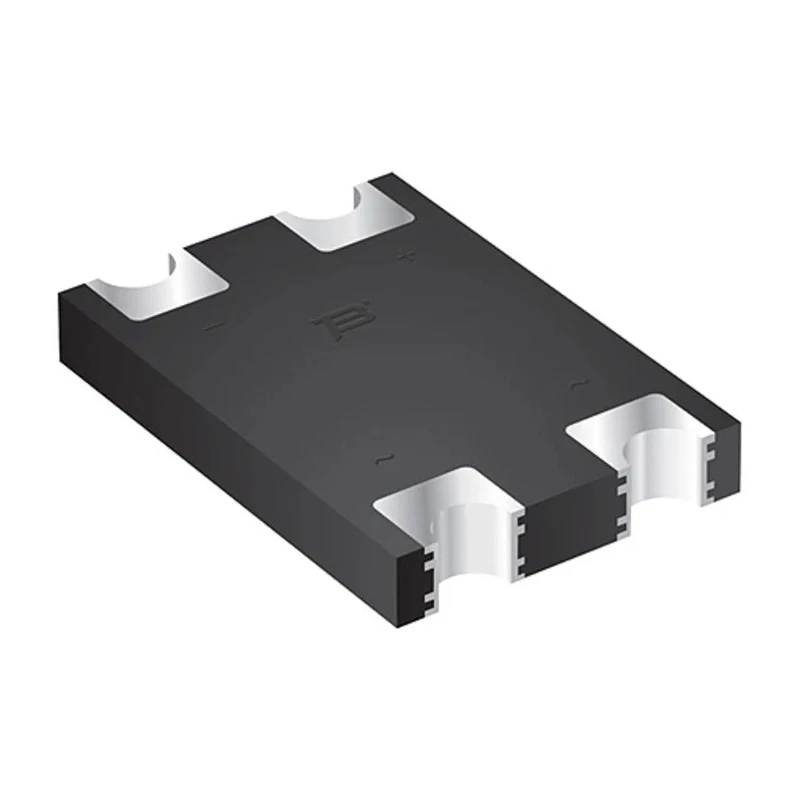

Bourns Compact Surface Mount Bridge Rectifier 1000 V 150 A 4-Pin Single CD-DF410S

Free Delivery in India | Lowest Global Shipping Charges

Bourns Compact Surface Mount Bridge Rectifier 1000 V 150 A 4-Pin Single CD-DF410S

Name: Bourns Compact Surface Mount Bridge Rectifier 1000 V 150 A 4-Pin Single CD-DF410S
Brand: BOURNS
SKU: 199084
Price: 0.55 USD
Availability: InStock



Category Bridge Rectifier Brand BOURNS Condition New

Specifications

Country of Origin	India
Brand	Bourns
Height	1.55mm
Length	10.6mm
Model	CD-DF410S
Width	8.2mm
Mount Type	Surface
Series	CD-DF4
Configuration	Single
Maximum Operating Temperature	175°C
Package Type	SMT
Minimum Operating Temperature	-55°C
Number of Phases	1
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	1000V
Peak Reverse Current Ir	5μA
Peak Non-Repetitive Forward Surge Current Ifsm	150A
Forward Current If	4A
Peak Forward Voltage Vf	950mV

Key Features

Compact surface mount technology package suitable for modern electronic assemblies.
Rated for peak reverse repetitive voltage of 1000 volts ensuring robust performance.
Supports a forward current of 4 amperes with a peak non-repetitive surge current of 150 amperes.
Operates reliably within a temperature range of -55°C to 175°C.
Features low forward voltage of 950 mV to reduce power loss during operation.
Configured as a single-phase bridge rectifier with 4-pin SMT layout for ease of integration.
Low peak reverse current of 5 μA ensures minimal leakage and high efficiency.
Compact dimensions of 10.6 mm length, 8.2 mm width, and 1.55 mm height for space saving.

Product Description

Bourns CD-DF410S Bridge Rectifier is a high-performance, compact surface mount bridge rectifier designed for efficient AC to DC conversion in electronic circuits.

It supports a peak reverse repetitive voltage of 1000 V and a continuous forward current rating of 4 A, making it suitable for demanding power applications. This rectifier features a small SMT footprint with dimensions of 10.6 mm length, 8.2 mm width, and 1.55 mm height, enabling high-density PCB designs.

The device operates reliably in extreme temperature environments ranging from -55°C to 175°C, ideal for industrial, automotive, and consumer electronics. Its peak non-repetitive forward surge current rating of 150 A allows it to handle transient current spikes without damage.

The low forward voltage drop of 950 mV enhances energy efficiency, while the 4-pin single-phase configuration simplifies circuit implementation. With a peak reverse current of just 5 μA, this rectifier minimizes leakage, improving overall system performance.

Compact surface mount technology package suitable for modern electronic assemblies. Rated for peak reverse repetitive voltage of 1000 volts ensuring robust performance. Supports a forward current of 4 amperes with a peak non-repetitive surge current of 150 amperes.

Operates reliably within a temperature range of -55°C to 175°C. Features low forward voltage of 950 mV to reduce power loss during operation. Configured as a single-phase bridge rectifier with 4-pin SMT layout for ease of integration.

Low peak reverse current of 5 μA ensures minimal leakage and high efficiency. Compact dimensions of 10.6 mm length, 8.2 mm width, and 1.55 mm height for space saving.

This Bridge Rectifier from Bourns is widely used in industrial electronics, power supply units, measurement instruments, and automotive circuits where reliable AC to DC conversion is critical. The device complies with industry standards for discrete semiconductors but does not carry specific automotive certifications.
