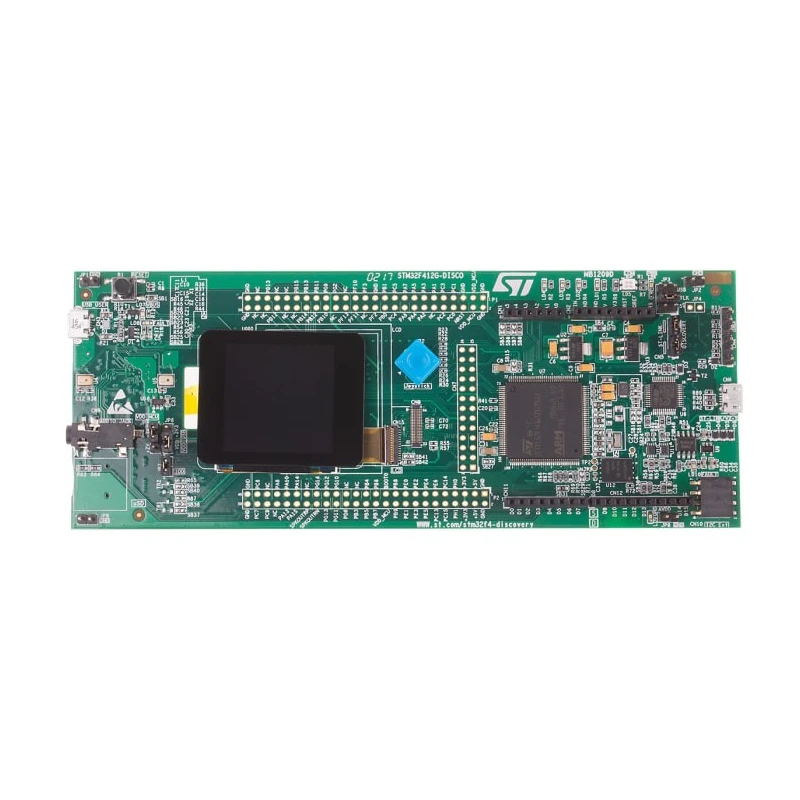

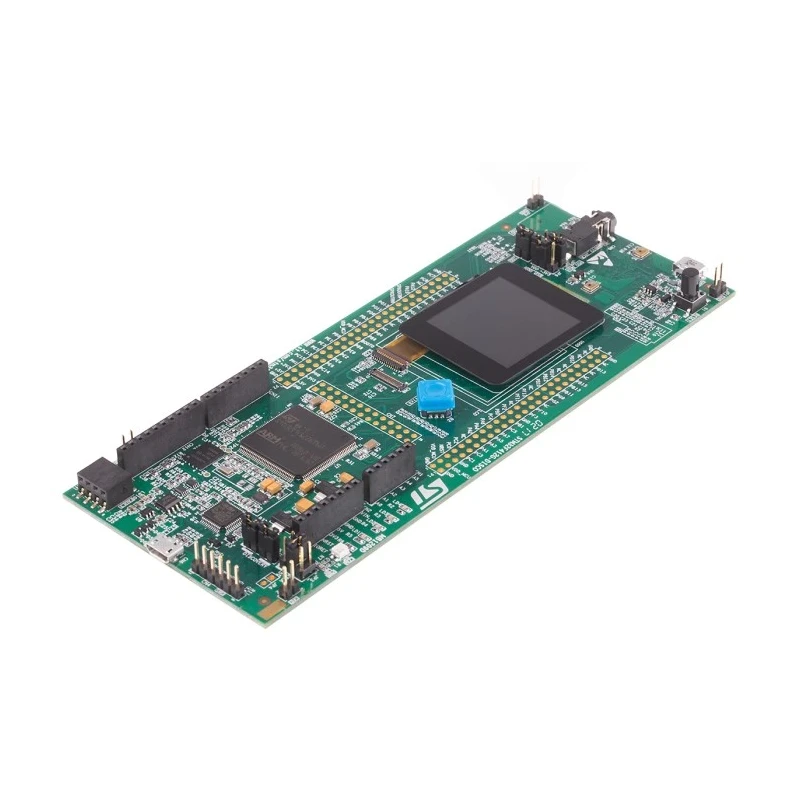

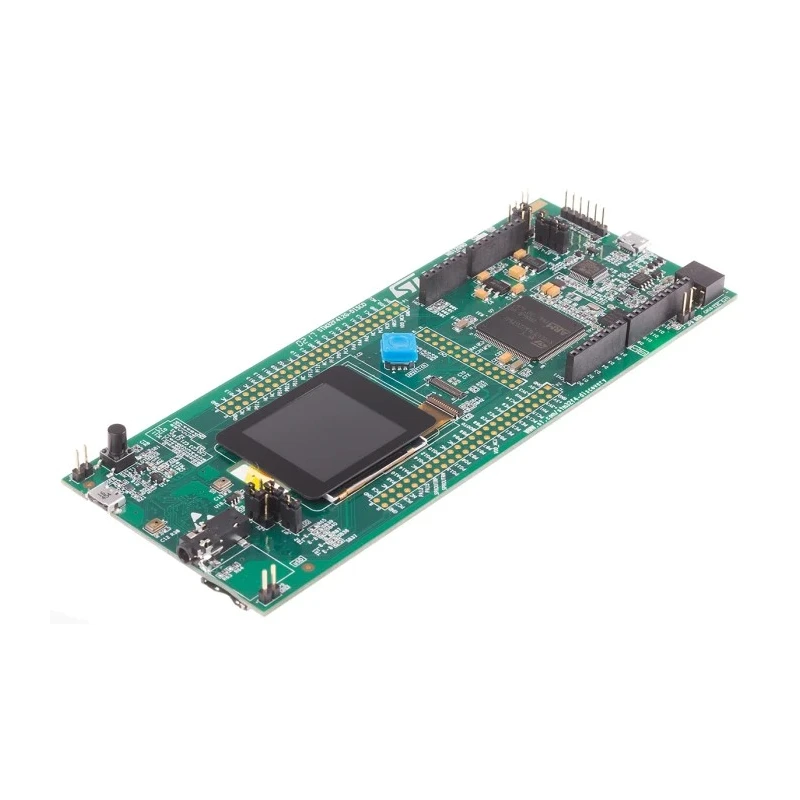

STMicroelectronics Discovery MCU Development Kit ARM Cortex-M4F 100MHz 1MB Flash STM32F412G-DISCO

STMicroelectronics STM32F412G-DISCO Discovery MCU Development Kit features a high-performance ARM Cortex-M4F 100MHz microcontroller with 1MB Flash and 256KB SRAM, optimized for a wide range of embedded applications in industrial, automotive, and consumer electronics.

The kit integrates a 1.54-inch capacitive touch TFT color LCD with 240 x 240 pixel resolution, providing advanced graphical interface capabilities suitable for user interface prototyping and multimedia applications.

Audio support is comprehensive, including an on-board WM8994 I2S serial audio CODEC, a 3.5mm stereo headphone and microphone jack, mono speaker output, and stereo digital MEMS microphones enabling high-fidelity audio input and output.

Connectivity includes USB OTG Full Speed with Micro-AB connector, Arduino Uno v3 shield headers allowing unlimited expansion with specialized shields, and an I2C bus extension connector.

The embedded ST-LINK/V2-1 promotes debugging and programming through USB re-enumeration capabilities including virtual COM port, mass storage, and debug port functionalities, supporting development workflows efficiently.

Additional user-friendly interfaces comprise 4 user LEDs, a reset pushbutton, a 4-way thumb joystick, and a microSD card slot for expandable data logging and storage needs.

Power delivery is flexible with four options: via the ST-LINK/V2-1 interface, USB FS connector, VIN from Arduino connector, and +5V from Arduino connector, along with dual MCU power supplies at +2.0V and +3.3VDC.

The Discovery Kit is supported by the STM32Cube software package offering a comprehensive set of examples and is compatible with a wide variety of integrated development environments, facilitating rapid application development in embedded systems, IoT, audio, multimedia, industrial control, and automation domains.

This robust Development Kit is ideal for engineering, educational, and prototype projects requiring advanced microcontroller features with audio and graphical capabilities. Explore a broad range of development solutions in the Electronics & Electricals category at EnvMart for similar advanced microcontroller kits and development tools.

Includes STM32F412ZGT6 MCU with 1MB Flash memory and 256KB SRAM. On-board 128Mbit quad-SPI NOR Flash memory for expanded storage. Integrated ST-LINK/V2-1 debugger and programmer with USB re-enumeration capabilities. Features a 1.54-inch 240 x 240 pixel capacitive touch TFT color LCD.

Supports audio interfaces via WM8994 I2S serial audio CODEC and 3.5mm audio jack. Equipped with user LEDs, a reset pushbutton, and a 4-way thumb joystick for user interaction. Provides Arduino Uno connectivity headers for extensive expansion options.

Includes additional interfaces such as USB OTG FS, microSD card slot, and I2C extension connector. Powered via multiple options including ST-LINK/V2-1, USB FS connector, or Arduino connector inputs. Supported by comprehensive free software and integrated development environments for rapid prototyping.
