onsemi Power Board Evaluation Kit SECO-MDK-4KW-65SPM31-GEVK 400 Vdc Input 4 kW Motor Drive

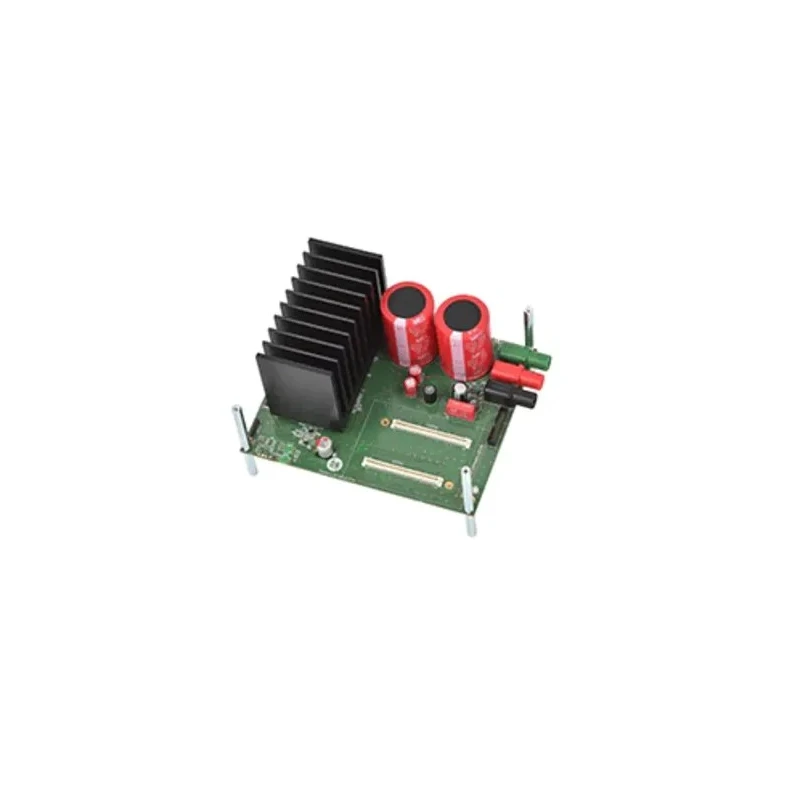

onsemi SECO-MDK-4KW-65SPM31-GEVK is a power board evaluation kit specifically developed for three-phase motor drive applications. This development kit incorporates the NFAM5065L4B intelligent power module in a DIP39 package and supports a 400 Vdc input voltage. The board provides continuous power output exceeding 1 kW while capable of delivering peak power of up to 4 kW for short periods, making it suitable for demanding motor control tasks.

The evaluation board is fully compatible with the universal controller board based on the Xilinx Zynq-7000 SoC, which integrates flexible FPGA logic combined with two Arm Cortex-A9 processor cores, delivering both high processing power and configurability.

The design integrates three-phase current sensing using three NCS20166 operational amplifiers, providing precise current feedback necessary for optimal motor control. Voltage measurements of the inverter phases and the DC-Link are conducted using resistive voltage divider circuits, ensuring accurate and stable voltage monitoring.

Temperature monitoring is facilitated through a built-in thermistor, enhancing protection and reliability during operation. This evaluation board is a recommended solution for power, motor, and robotics development environments, providing engineers with a robust platform to prototype and test motor drive designs.

The evaluation kit includes the NFAM5065L4B intelligent power module. Supports three-phase current and voltage measurement circuits. Compatible with universal controller board featuring Xilinx Zynq-7000 SoC and dual Cortex-A9 processors.

Designed for continuous power above 1 kW and peak power of 4 kW. Includes temperature sensing for system protection.

This product belongs to the Electronics & Electricals category, under Electronics Components and Development Kits, suitable for industrial, research, and educational use in power electronics and motor control development. For further exploration of evaluation and Development Kits, browse the respective EnvMart categories.
