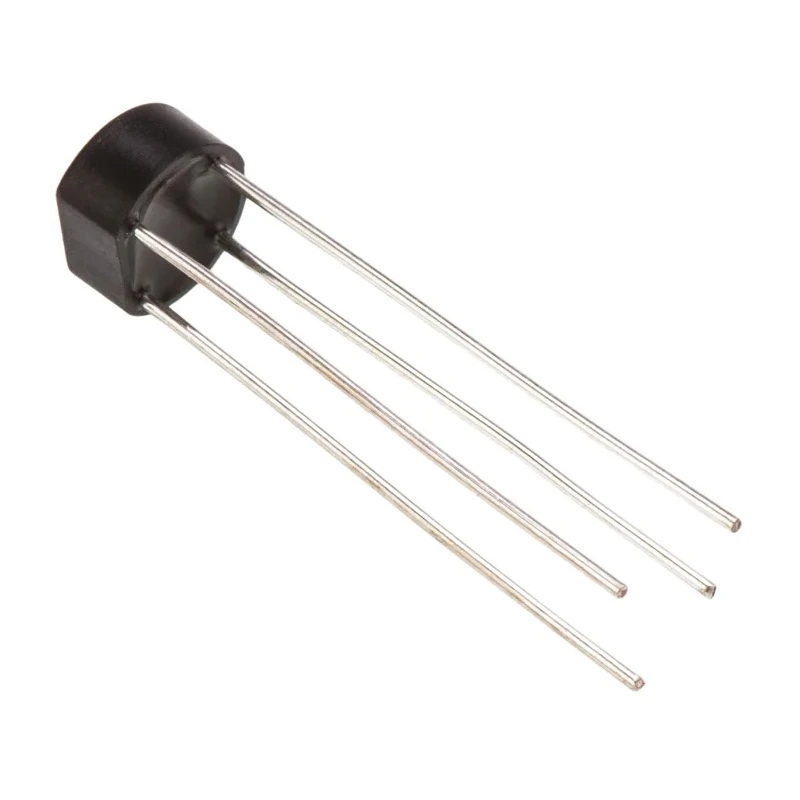

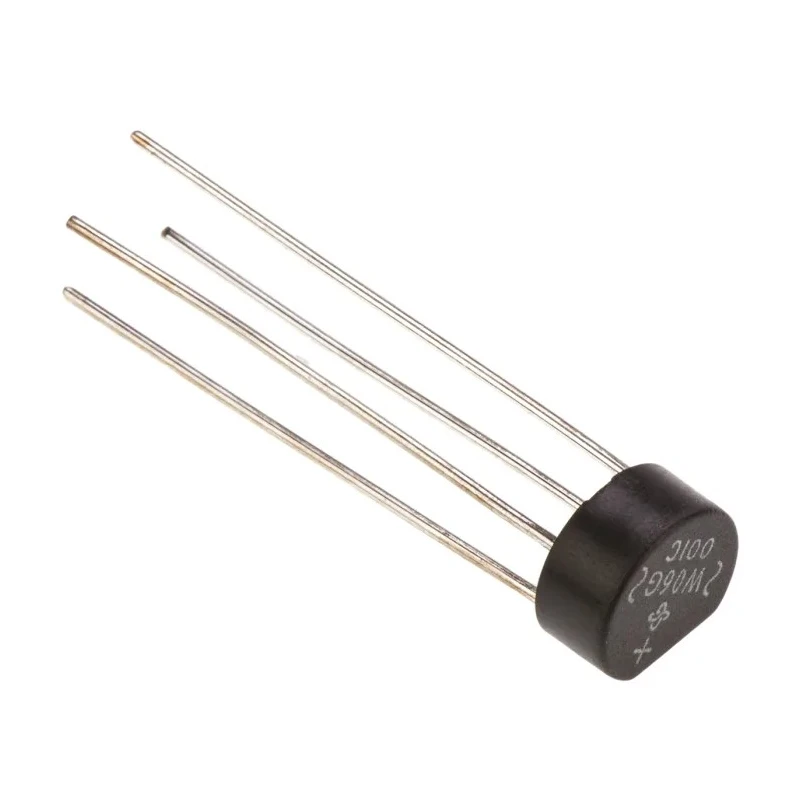

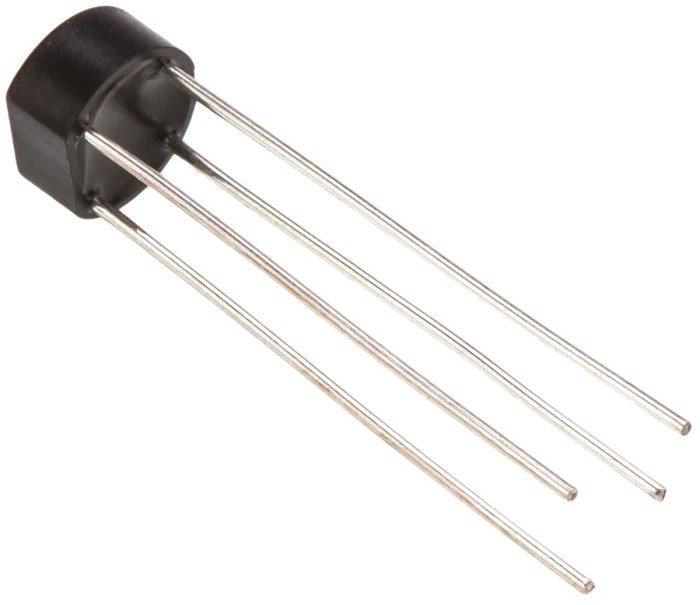

Vishay Bridge Rectifier 600 V Forward Current 1.5 A Peak Surge 50 A 4-Pin Through Hole W06G-E4/51

Vishay W06G-E4/51 bridge rectifier is a high-quality, 4-pin single-phase electronic semiconductor suitable for full-wave rectification in AC/DC power supply circuits. Rated at a peak reverse repetitive voltage of 600 V and a forward current of 1.5 A, this bridge rectifier delivers superior reliability under demanding electrical conditions.

Constructed with a robust WOG molding compound that complies with UL 94 V-0 flammability rating, the component ensures durability and safe operation. Silver plated terminals allow for excellent solderability according to J-STD-002 and JESD22-B102 standards. Its compact size with dimensions of approximately 9.86 mm in length, 8.84 mm width, and 5.6 mm height allows efficient space utilization on printed circuit boards via its through-hole mount design.

The device features a low peak forward voltage drop of 1 V and a minimal peak reverse current of 5 μA optimizing efficiency and reducing losses. The peak non-repetitive forward surge current rating of 50 A accommodates transient surges safely, enhancing the product's robustness in power conversion circuits.

This bridge rectifier is ideally suited for general purpose electronic applications including power supplies, adapters, chargers, and lighting ballasts for consumer products and home appliances. It offers a stable, reliable solution for converting alternating current input into direct current output with consistent polarity, critical for industrial and commercial electronic circuitry.

The W06G series is UL recognized under file number E54214, further attesting to its compliance with quality and safety standards. Material categorization and environmental compliance aspects are in line with commercial grade requirements.

Peak reverse repetitive voltage: 600 V for high voltage tolerance. Forward current capacity of 1.5 A suitable for moderate power applications. High peak surge current capability of 50 A accommodates transient demands. Through hole mounting simplifies PCB assembly processes.

Compact footprint ideal for space-constrained designs. Silver plated leads enhance soldering quality and durability. Ultra-low leakage current improves overall electronic efficiency. Molding compound meets stringent flammability and safety classifications (UL 94 V-0).
