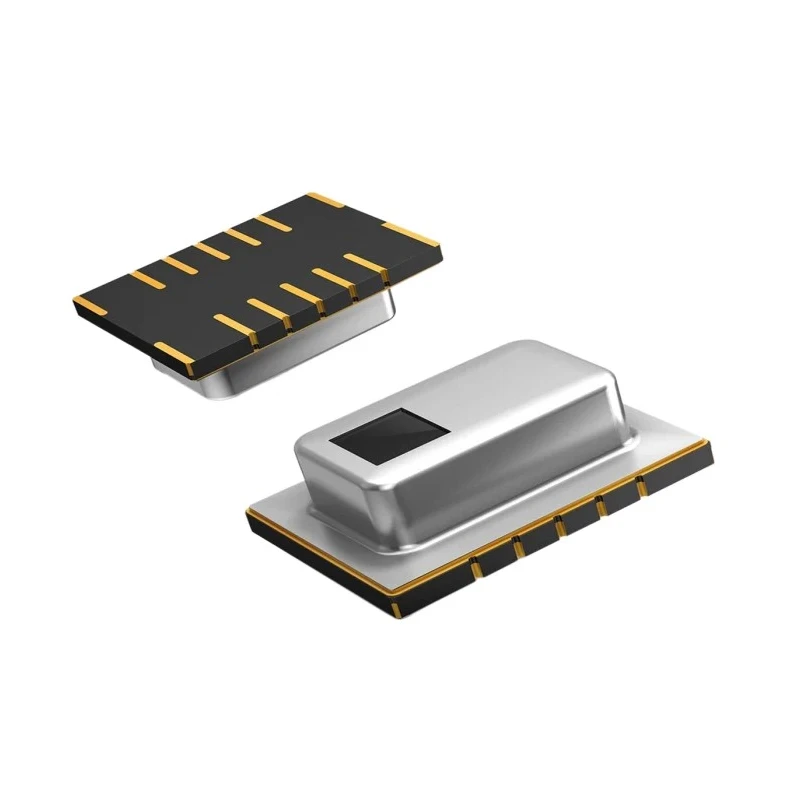

Panasonic Grid-EYE Proximity Sensor 7 m Range Digital Output Surface Mount 14 Pin AMG8834

Panasonic AMG8834 Grid-EYE Proximity Sensor is a specialized IR array sensor featuring a 7 m sensing distance, digital output, and a compact surface mount package with 14 pins. Operating at supply voltages ranging from -0.3 V to 3.3 V, it delivers high precision detection based on MEMS technology.

The sensor includes an 8 x 8 infrared sensor grid array (64 pixels) capable of detecting heat sources such as human presence by analyzing IR radiation. This detection capability enables applications in energy-efficient environments such as automated lighting, HVAC systems, automatic doors, and elevator monitoring.

With a maximum output current of 10 mA and robust operating temperature range from -20°C to 80°C, the AMG8834 ensures reliable operation in diverse industrial and commercial scenarios. Its surface mount design with 14 pins facilitates easy integration into electronic circuits and PCBs.

Manufactured in Japan, the product guarantees premium quality compliant with Panasonic’s standards. The compact size (11.6 mm length, 8 mm width, and 4.3 mm height) makes it suitable for space-constrained installations.

This proximity sensor is widely used in electronic components and semiconductor applications requiring sensitive heat detection, especially useful in air conditioning and lighting controls to optimize energy consumption through human activity monitoring.

Equipped with an 8 x 8 IR sensor grid array containing 64 pixels. Operates at supply voltages from -0.3 V to 3.3 V. Maximum output current rated at 10 mA. Compact dimensions: 11.6 mm length, 8 mm width, and 4.3 mm height.

Designed to operate in temperatures ranging from -20°C to 80°C. Surface mount type with 14 pins for easy PCB integration. Digital output type ensures reliable signal transmission. Based on advanced MEMS technology for high precision thermal sensing.

Ideal for human presence detection and ambient energy-saving applications. Manufactured in Japan ensuring high quality and reliability. Explore EnvMart for a wide range of semiconductor proximity sensors and industrial-grade IR array sensors matching your application requirements.
