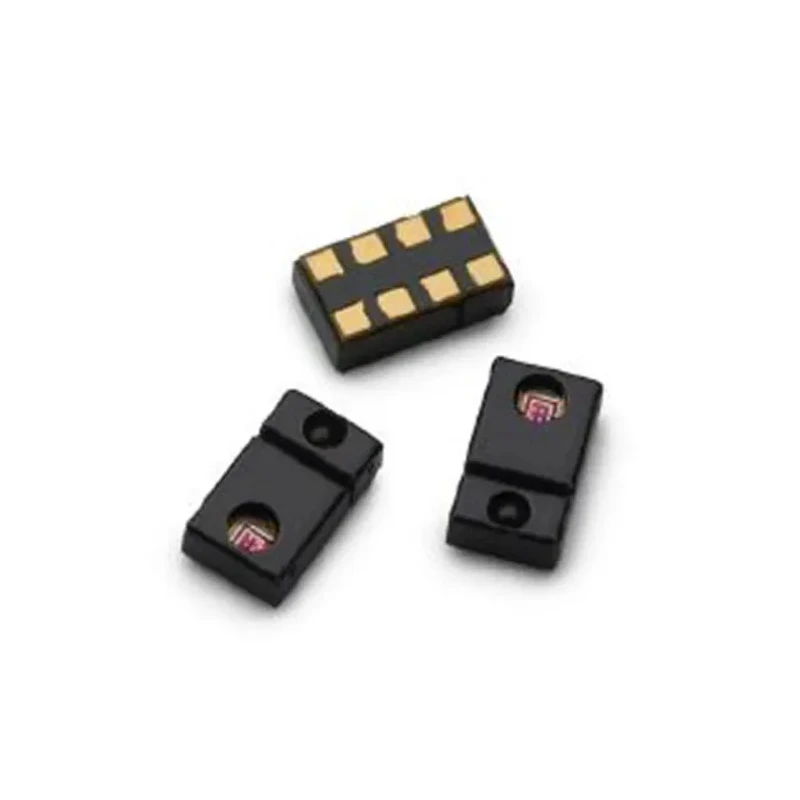

Broadcom Proximity Sensor Digital RGB Ambient Light Gesture Detection Surface Mount 8 Pin APDS-9960
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Package | L 3.94 mm x W 2.36 mm x H 1.35 mm |
| Height | 1.35mm |
| Length | 3.94mm |
| Model | APDS-9960 |
| Width | 2.36mm |
| Mount Type | Surface |
| Output type | Open Drain |
| Series | APDS |
| Sensing Distance | 100mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -30°C |
| Maximum Switching Frequency | 400kHz |
| Maximum Output Voltage | 3.8V |
| Pin Count | 8 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 2.4V |
Key Features
- Operates between 2.4V and 3.6V supply voltage ensuring low power consumption.
- Detects proximity up to 100 mm with an open-drain output type.
- Features advanced gesture detection ideal for mobile devices and touchless interfaces.
- Compact dimensions of 3.94 mm length, 2.36 mm width, and 1.35 mm height facilitate PCB space efficiency.
- Supports a maximum switching frequency of 400 kHz suitable for fast sensing applications.
- Wide operating temperature range from -30°C to +85°C allows use in diverse environments.
- Surface mount type with 8 pins simplifies integration into modern electronics designs.
- Includes digital ambient light and RGB color sensing that work effectively even behind dark glass.
Product Description
Broadcom APDS-9960 is a digital proximity sensor with advanced features including RGB color sensing, ambient light detection, and gesture recognition, packaged in a compact surface mount 8-pin device. It supports a supply voltage range from 2.4V to 3.6V and provides reliable detection up to 100 mm distance.
This sensor is highly sensitive to ambient light and can operate effectively behind tinted or darkened glass, making it suitable for use in mobile phone touch screens, mechanical switch replacements, and ambient light sensing applications. Its built-in gesture detection technology enables touchless user interfaces, ideal for mobile and handheld devices.
The device supports a maximum switching frequency of 400 kHz which allows fast and efficient sensor operation. The compact package dimensions of 3.94 mm length, 2.36 mm width, and 1.35 mm height make it ideal for space-constrained circuit boards.
The sensor operates reliably over a wide temperature range from -30°C to 85°C, ensuring stable performance in various industrial, commercial, and consumer electronics environments.
The surface mount 8-pin package simplifies installation and integration on printed circuit boards. Its output type is open drain, which provides versatile compatibility with various microcontroller input configurations.
Typical applications include proximity sensing, gesture-based controls, ambient light and color sensing in devices such as smartphones, tablets, and other consumer electronics needing advanced user interface and environmental sensing.
Operates from 2.4V to 3.6V supply voltage with maximum output voltage of 3.8V. Maximum switching frequency of 400 kHz. Sensing distance of 100 mm for proximity detection. Package size: 3.94 mm x 2.36 mm x 1.35 mm. Operating temperature from -30°C to 85°C.
Open drain output type with surface mount design for easy PCB integration. Includes digital ambient light sensing and RGB color detection behind dark glass. Advanced gesture detection suitable for mobile devices and IoT applications.
Explore more sensors and semiconductors on EnvMart for industrial, laboratory, electronic, and manufacturing applications.
Explore more products in our Proximity Sensor ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The APDS-9960 can detect proximity up to 100 mm.
It operates within a supply voltage range of 2.4V to 3.6V.
This model has dimensions of 3.94 mm in length, 2.36 mm in width, and 1.35 mm in height.
The APDS-9960 supports a maximum switching frequency of 400 kHz.
The sensor operates reliably over a wide temperature range from -30°C to 85°C.
This model has a total of 8 pins in its surface mount package.
It is suitable for applications such as proximity sensing, gesture-based controls, and ambient light and color sensing in devices like smartphones and tablets.
Yes, it can effectively detect ambient light and RGB color even behind tinted or darkened glass.
The maximum output voltage for this sensor is 3.8V.
It features a surface mount type design, which simplifies integration into modern electronics.
The APDS-9960 is manufactured by Broadcom.
