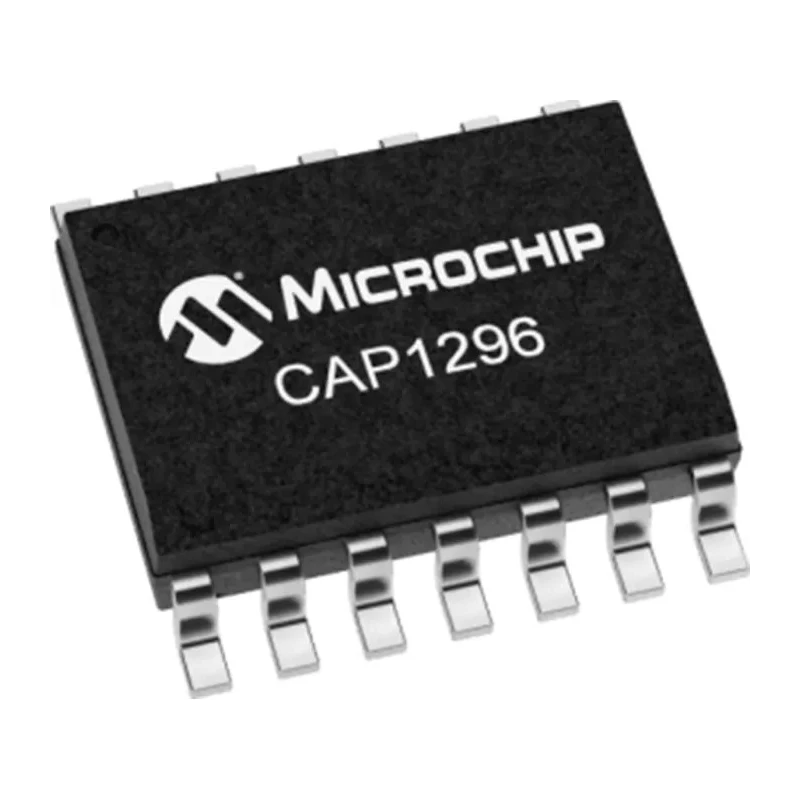

Microchip Capacitive Touch Controller IC 3 V to 5.5 V, 14-Pin SOIC Package CAP1296

Microchip CAP1296 is a turnkey capacitive touch controller IC designed to provide a wide range of button and proximity sensing functionalities. The device simplifies the addition of aesthetically pleasing and durable touch interfaces for embedded systems. It operates at supply voltages between 3.0 V and 5.5 V, making it well suited for battery-powered and low-voltage industrial applications.

The IC features 6 capacitive sensor inputs allowing multiple touch keys with programmable sensitivity levels. Its automatic recalibration intelligently compensates for noise and environmental factors, enhancing reliability. The Combo Mode enables concurrent detection of touch keys and proximity sensing, expanding usage versatility.

Additional features include a press-and-hold function useful for volume controls or power buttons, the innovative Signal Guard which improves proximity detection, and efficient low power modes that extend battery life. Protection against electrostatic discharge up to 8kV ensures robust operation in harsh environments.

Communication is enabled through standard I²C™ and SMBus serial interfaces, facilitating easy integration and control within various microcontroller systems. The device is housed in a compact 14-pin SOIC surface mount package measuring 8.65 mm in length, 3.9 mm in width, and 1.5 mm in height, allowing for dense PCB layouts and reduced board space.

With its operating temperature range spanning from -40° to 125°C and no automotive standard certification, the CAP1296 is designed primarily for general industrial, consumer electronics, and embedded applications requiring reliable capacitive touch interfaces.

Provides 6 capacitive touch sensor inputs for multi-button designs. Programmable sensitivity with automatic recalibration ensures robust performance. Supports Combo Mode, enabling simultaneous key and proximity detection.

Features Signal Guard and low power operation modes for energy efficiency. Equipped with 8kV electrostatic discharge protection for device reliability. Communicates via I²C™ and SMBus digital interfaces for easy integration.

Operates within voltage range of 3.0V to 5.5V for flexible power supplies. Compact surface mount 14-pin SOIC package measuring 8.65 mm by 3.9 mm by 1.5 mm. Wide operating temperature range from -40°C to 125°C suitable for industrial environments.

Automatic recalibration adapts to environmental changes to maintain accuracy.

This Microchip capacitive touch controller IC is ideal for industrial automation, consumer electronics, home appliances, and embedded control systems. Explore more products in Proximity Sensor ICs and semiconductor categories at EnvMart for advanced sensor solutions.
