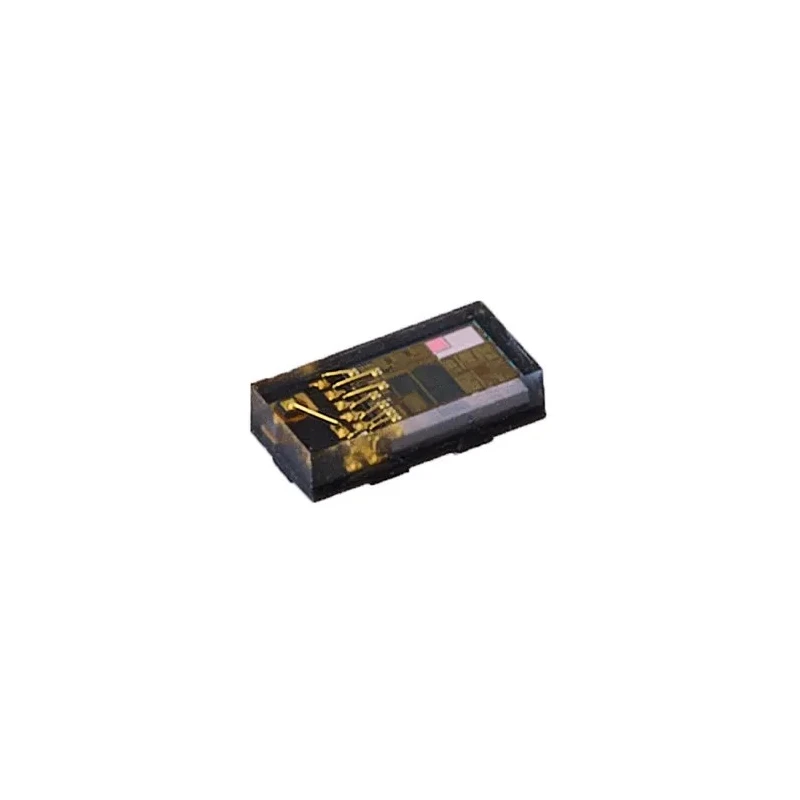

ams OSRAM Ambient Light & Proximity Sensor Module 30mm Sensing Distance Open Drain Output 1.7-1.98V TMD27123M

The ams OSRAM TMD27123M is a high-performance ambient light and proximity sensor module designed for compact electronic applications requiring precise environmental sensing. Featuring a miniature 2mm length, 1mm width, and 0.5mm height OLGA package with 6 pins, it integrates an infrared vertical-cavity surface-emitting laser (VCSEL) and a factory calibrated VCSEL driver to enable accurate proximity detection up to 30mm distance. This module is optimized for low power consumption with a supply voltage range from 1.7V to 1.98V and a maximum output current of 20mA.

The sensor’s open drain output delivers reliable switching with frequencies up to 8.3MHz, making it suitable for fast-response industrial, automotive, and consumer device applications. It supports interrupt-driven detect and release events when proximity thresholds are crossed, allowing efficient system power management. The ambient light sensing is achieved via dedicated photodiodes with 16-bit data converters ensuring accurate light measurement for display brightness control and environmental awareness.

Designed without automotive standards certification but with robust operating temperature tolerance from 30°C to 85°C, this sensor module offers extensive industrial design flexibility. Its compact size, combined with superior proximity sensing and ambient light detection capabilities, make the TMD27123M ideal for mobile phones, IoT devices, and embedded systems requiring integrated multi-function sensing.

The sensor module integrates a calibrated IR VCSEL for precise proximity detection. Operates within a supply voltage range of 1.7V to 1.98V for reduced power consumption. Maximum switching frequency of 8.3MHz supports rapid sensing applications.

30mm sensing distance enables effective object detection in slim device designs. Open drain output type compatible with diverse electronic interfaces. Thermally rated for operation from 30°C to 85°C in industrial settings.

6-pin OLGA package measures 2mm x 1mm x 0.5mm for compact integration.

This versatile ams OSRAM TMD27123M ambient light and proximity sensor module finds applications in industrial automation, mobile communications, HVAC controls, and consumer electronics, providing accurate optical sensing while maintaining minimal footprint and efficient power usage. Explore related sensor ICs and components at EnvMart for a comprehensive range of semiconductor sensing devices.
