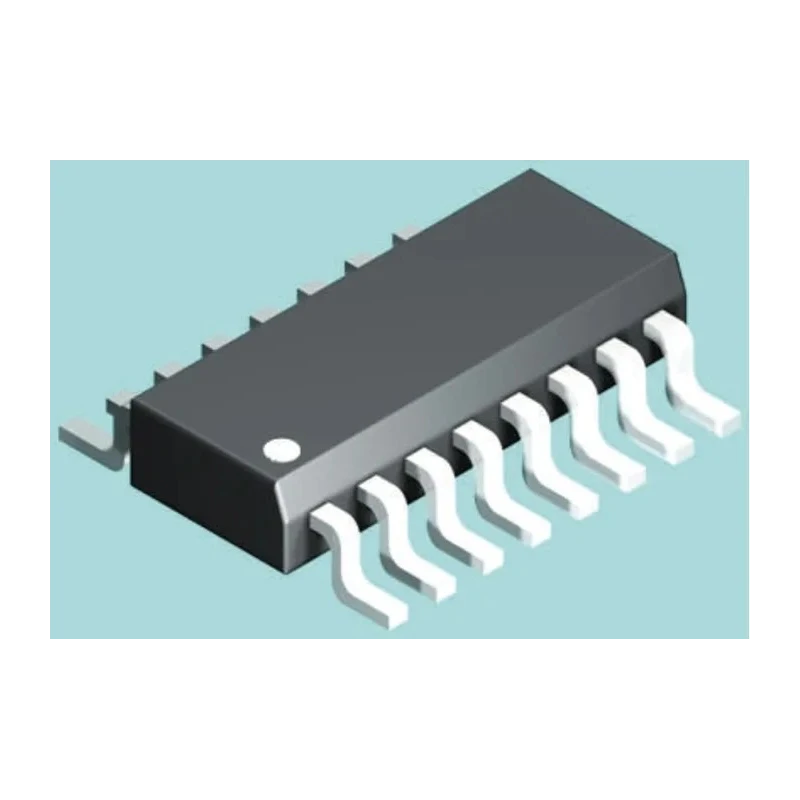

STMicroelectronics 7-Element Darlington Transistor NPN, 500mA, 50V, 16-Pin SOIC ULN2002D1013TR

STMicroelectronics ULN2002D1013TR is a high-voltage, high-current Darlington transistor array designed for efficient switching in industrial and electronic applications. Each of its seven NPN transistor elements supports a maximum continuous collector current of 500 mA and a collector-emitter voltage rating up to 50 V.

This device comes in a compact 16-pin SOIC surface mount package, facilitating optimized PCB layout with inputs positioned opposite outputs. It integrates suppression diodes for inductive load protection, improving device and circuit robustness.

The transistor array features a minimum DC current gain (hFE) of 1000, providing strong signal amplification suited for interface with TTL and CMOS logic levels. The transistor polarity is NPN, and it exhibits a maximum collector-emitter saturation voltage of 1.6 V.

Operating temperature ranges from -20°C to 85°C, making it suitable for diverse environments and industrial requirements. Conformance with JEDEC JESD97 standards ensures compliance with industry specifications.

Typical applications include industrial control systems, relay drivers, solenoid drivers, and other power driver circuits where compact, reliable high-current switching is necessary.

Designed for high voltage and high current switching applications. Features integral suppression diodes for inductive load protection. Standard logic level input compatible with TTL and CMOS devices. High current gain of 1000 ensuring effective signal amplification.

Compact 16-pin SOIC surface mount package for optimized PCB design. Operating temperature from -20°C to 85°C for wide environmental suitability. Complies with JEDEC JESD97 standards for quality assurance. Ideal for industrial automation and power driver circuit applications.

Explore the Electronics & Electricals category at EnvMart for advanced semiconductor solutions including Darlington Transistor arrays by STMicroelectronics.
