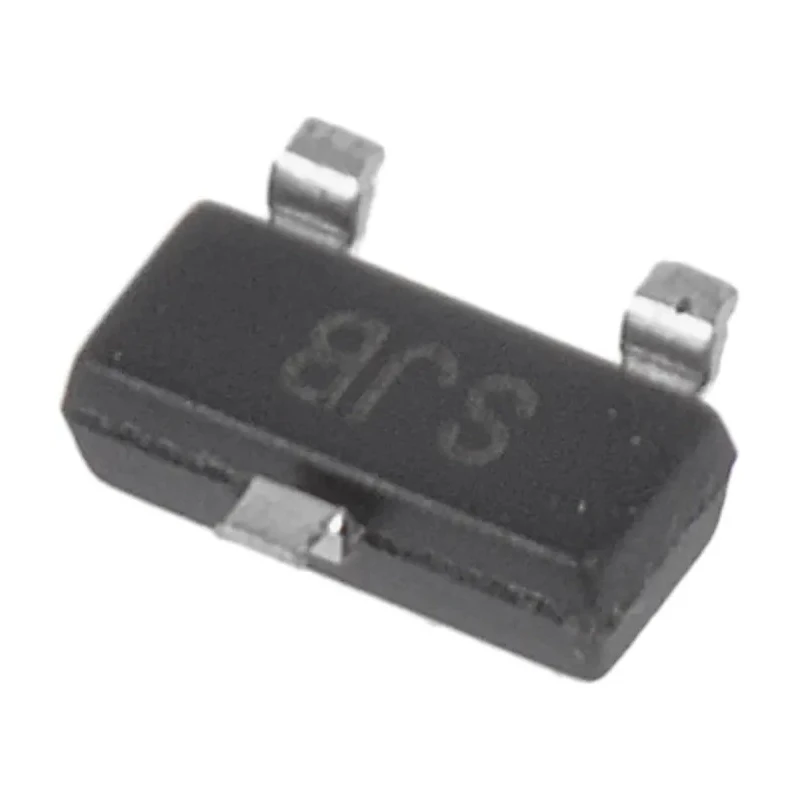

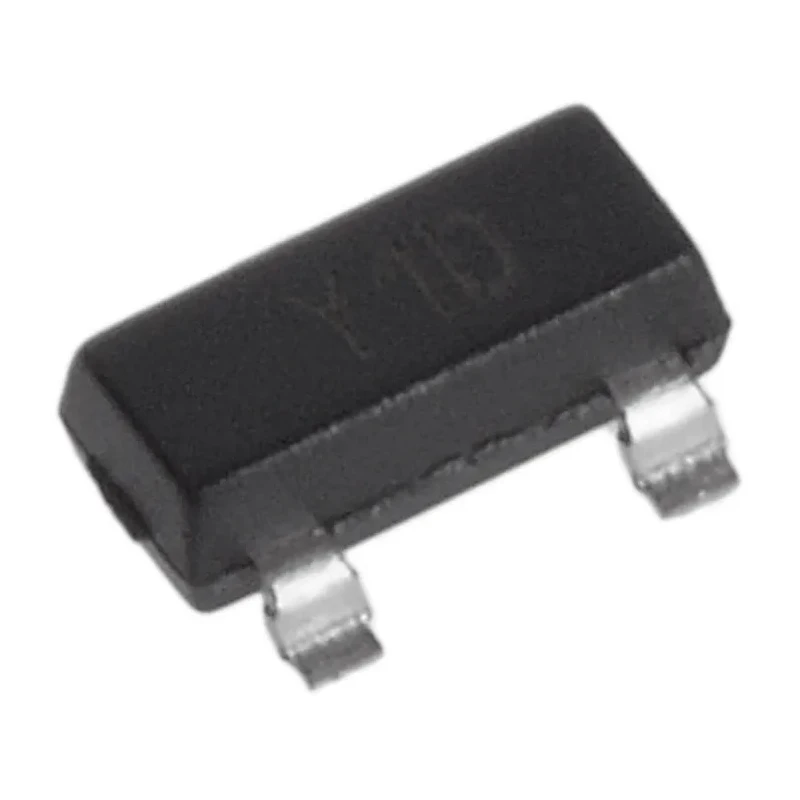

Microchip Fixed Shunt Voltage Reference ±1 % 3-Pin SOT-23 LM4041DYM3-1.2-TR

Free Delivery in India | Lowest Global Shipping Charges

Microchip Fixed Shunt Voltage Reference ±1 % 3-Pin SOT-23 LM4041DYM3-1.2-TR

Name: Microchip Fixed Shunt Voltage Reference ±1 % 3-Pin SOT-23 LM4041DYM3-1.2-TR
Brand: Microchip
SKU: 136367
Price: 0.31 USD
Availability: InStock



Category Voltage Reference Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	1mm
Length	2.92mm
Model	LM4041DYM3-1.2-TR
Mount Type	Surface
Output type	Fixed
Series	LM4041
Temperature Coefficient	20 ppm/°C
Output Current	12mA
Topology	Shunt
Maximum Operating Temperature	85°C
Package Type	SOT-23
Minimum Operating Temperature	-40°C
Reference Type	Fixed
Pin Count	3
Reference Voltage	1.23V
Initial Accuracy	±1 %

Key Features

Provides a 1.23 V fixed reference voltage with ±1 % accuracy.
Operates with an output current up to 12 mA for stable voltage regulation.
Compact 3-pin SOT-23 surface-mount package measuring 2.92 mm length and 1 mm height.
Suitable for operation in temperature range from -40°C to 85°C for industrial applications.
Features a shunt topology optimized for precise voltage reference performance.
Temperature coefficient of 20 ppm/°C ensures reliable stability in varying conditions.
Non-automotive standard with no special certifications applicable.
Surface mount mount type compatible with automated PCB assembly processes.

Product Description

Microchip LM4041DYM3-1.2-TR is a fixed shunt voltage reference device designed for precise voltage regulation in electronics and power management systems. It provides a stable reference voltage of 1.23 V with initial accuracy of ±1 %, suitable for applications requiring accurate voltage monitoring and control.

This voltage reference is housed in a compact 3-pin SOT-23 surface-mount package, with a length of 2.92 mm and height of 1 mm, facilitating low-profile PCB designs. It supports an output current of up to 12 mA and operates reliably within the temperature range -40°C to 85°C, making it ideal for a range of industrial and commercial electronics.

The shunt topology architecture and a temperature coefficient of 20 ppm/°C ensure stable voltage output in varying environmental conditions. It is designed without automotive standard certifications and is intended for use in standard industrial electronics circuits.

Provides a 1.23 V fixed reference voltage with ±1 % accuracy. Compact 3-pin SOT-23 surface-mount package. Temperature operating range from -40°C to 85°C. Output current capability of 12 mA for stable performance. Temperature coefficient of 20 ppm/°C for reliable operation.

Shunt topology suitable for voltage regulation applications. Designed for industrial and electronics component applications.

This fixed shunt voltage reference is essential for power management integrated circuits, precision measurement equipment, and other applications requiring dependable voltage standards. Its reliable performance and compact footprint support efficient PCB layouts and automated assembly.
