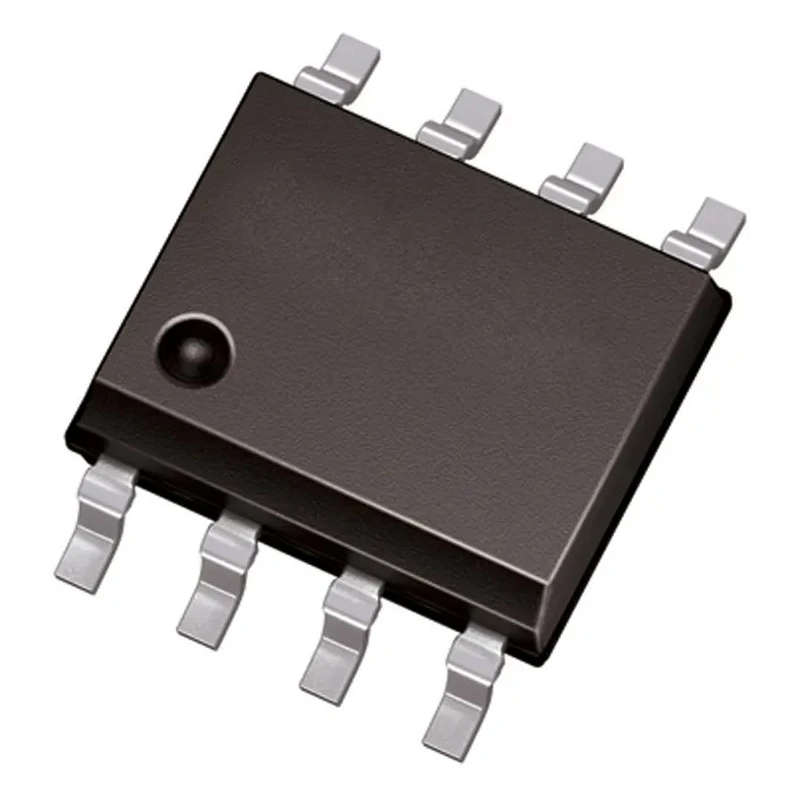

Infineon PROFET Smart High-Side Power Switch IC 8-Pin DSO-8 5A Operating Current BTS50301EJAXUMA1

Free Delivery in India | Lowest Global Shipping Charges

Infineon PROFET Smart High-Side Power Switch IC 8-Pin DSO-8 5A Operating Current BTS50301EJAXUMA1

Name: Infineon PROFET Smart High-Side Power Switch IC 8-Pin DSO-8 5A Operating Current BTS50301EJAXUMA1
Brand: Infineon
SKU: 138873
Price: 1.31 USD
Availability: InStock



Category Power Switch ICs Brand Infineon Condition New

Specifications

Country of Origin	India
Brand	Infineon
Height	1.45mm
Length	4.9mm
Model	BTS50301EJAXUMA1
Width	3.9mm
Mount Type	Surface
Number of inputs	1
Series	PROFET
Maximum Operating Temperature	150°C
Package Type	DSO-8
Minimum Operating Temperature	-40°C
Operating Current	5A
Number of outputs	5
Pin Count	8
Automotive Standard	AEC
Maximum Supply Voltage	28V
Minimum Supply Voltage	-0.3V
Switch On Resistance RdsOn	60mΩ

Key Features

Provides thermal shutdown and overload protection for reliable operation.
Equipped with current limitation and short-circuit protection features.
Supports overvoltage and electrostatic discharge protection.
Operates over a wide temperature range from -40°C to 150°C.
Designed for surface mounting with compact dimensions.
Has a maximum supply voltage of 28V and minimum supply voltage of -0.3V.
Features a low switch-on resistance of 60mΩ for efficient power switching.
Automotive-grade component compliant with AEC standards.

Product Description

Infineon BTS50301EJAXUMA1 is a PROFET Smart High-Side Power Switch IC that operates with a 5A current capacity and is housed in a compact 8-pin DSO-8 surface-mount package. This device is engineered for efficient high-side switching with a low on-resistance (60mΩ), optimizing power dissipation and system efficiency.

The switch incorporates advanced protection features including overload protection, current limitation, short-circuit protection, thermal shutdown, overvoltage, and electrostatic discharge (ESD) protection. These integrated safeguards enhance system reliability and longevity in rigorous industrial and automotive environments.

Its operating temperature range spans from -40°C to 150°C, making it well-suited for harsh conditions. The device supports a supply voltage range from -0.3V up to 28V, offering broad compatibility for various power management applications.

The dimensions of 4.9mm length, 3.9mm width, and 1.45mm height provide a compact footprint suitable for space-constrained PCB designs. Being an automotive-grade component certified under AEC standards, it is particularly suited for automotive electronic systems and other industrial applications requiring robust power switches.

Thermal shutdown protects against device overheating. Current limitation prevents excessive current draw. Short-circuit protection safeguards against fault conditions. Overvoltage and ESD protection ensure device integrity and operational safety.

Compact 8-pin DSO-8 surface-mount package for easy PCB integration. Wide temperature and voltage operating ranges improve versatility. Low switch-on resistance minimizes power loss. Conforms to automotive AEC standards ensuring reliability and quality.

Ideal for automotive and industrial power management systems.

This Infineon power switch IC is designed for demanding industrial and automotive environments where reliability, protection, and efficient switching are critical. It fits seamlessly into power management circuits requiring high-side switch configurations.
