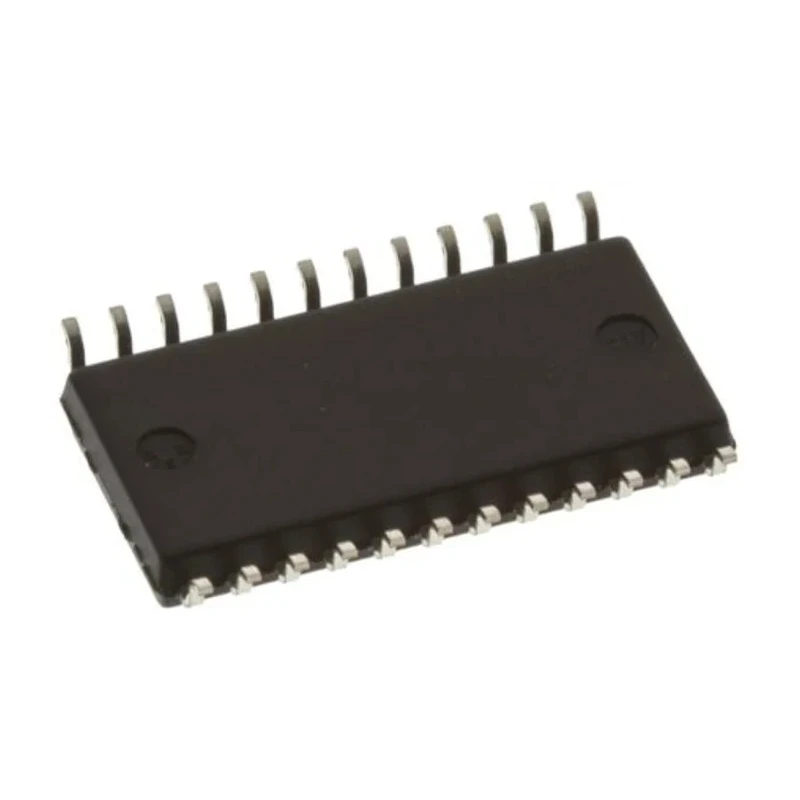

STMicroelectronics Low Side Power Switch IC 24-Pin SOIC, 500mA Operating Current, 50V Max Supply Voltage E-L9823013TR
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 2.35mm |
| Length | 15.6mm |
| Model | E-L9823013TR |
| Width | 7.6mm |
| Mount Type | Surface |
| Series | L9823 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Operating Current | 500mA |
| Number of outputs | 7 |
| Standards/Approvals | RoHS |
| Pin Count | 24 |
| Maximum Supply Voltage | 50V |
| Switch On Resistance RdsOn | 1.5Ω |
Key Features
- Operates with a maximum supply voltage of 50V.
- Features a switch on resistance (RdsOn) of 1.5Ω for efficient power switching.
- Supports up to 7 outputs for multiplexed load control.
- Operates within a wide temperature range from -40°C to 125°C for automotive-grade environments.
- Packaged in a surface-mount SOIC 24-Pin format for compact PCB integration.
- Designed to provide robust protection, diagnostic, and control functions.
- Compliant with RoHS standards ensuring environmental safety.
Product Description
STMicroelectronics E-L9823013TR Low Side Power Switch IC is engineered for industrial and automotive applications requiring reliable and efficient switching of high current grounded loads. Housed in a compact 24-Pin SOIC surface-mount package, this device supports seven outputs with a low switch-on resistance of 1.5Ω, which optimizes performance and power efficiency.
Operating at a maximum supply voltage of 50V and current up to 500mA, this power switch provides robust control suitable for resistive, inductive, and capacitive loads. Its design includes sophisticated analogue circuitry for diagnostic, protection, and control functions critical in demanding environments such as automotive electronics.
The device operates reliably over a wide temperature range from -40°C to 125°C, making it suitable for harsh automotive and industrial environments. It adheres to RoHS compliance standards, ensuring environmentally responsible manufacturing.
The SOIC 24-Pin form factor ensures easy integration in modern PCB layouts for power management ICs. This power switch IC is ideal for applications in automotive electronics, industrial control systems, and embedded power management electronics.
Operates with a maximum supply voltage of 50V. Switch on resistance (RdsOn) of 1.5Ω for low power dissipation. Supports 7 outputs for versatile load management. Wide operating temperature range from -40°C to 125°C. Compact 24-Pin SOIC surface mount package.
Includes protection and diagnostic circuitry for reliable operation. Compliant with RoHS environmental standards. Discover more power management solutions and components to enhance your industrial and automotive projects at EnvMart.
Explore more products in our Power Switch ICs category.
