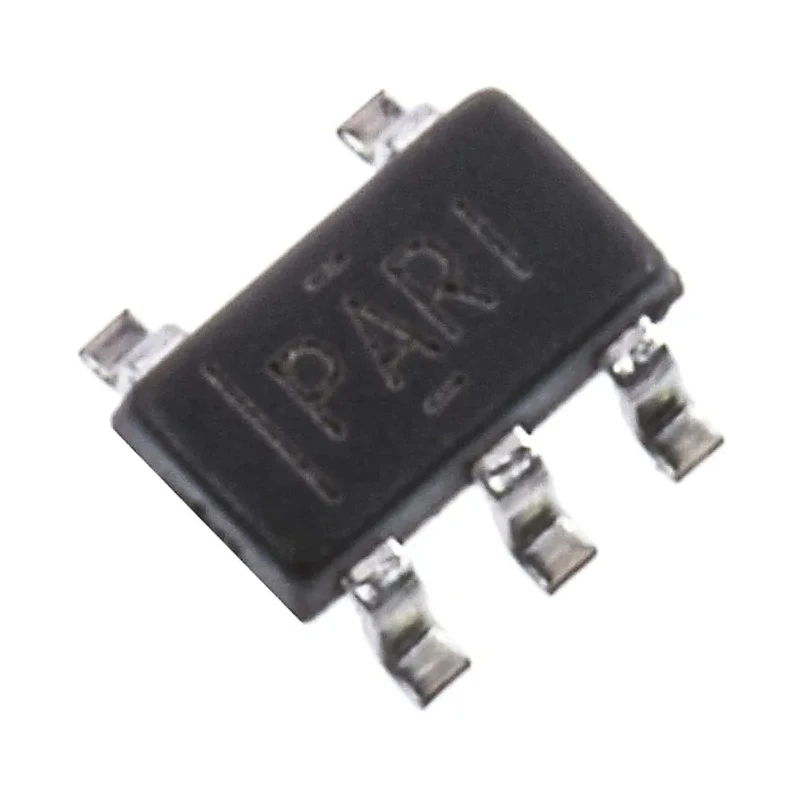

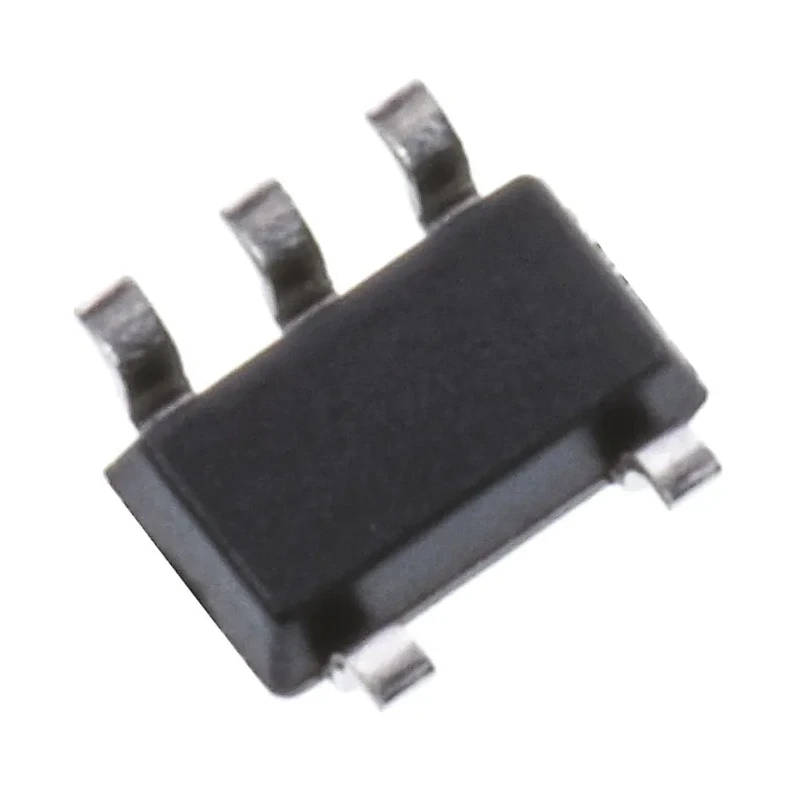

Texas Instruments Voltage Supervisor 1 Supervisor, 5-Pin SOT-23, 3 V Threshold TPS3823-33DBVT
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Supervisors Texas Instruments 1 Voltage Supervisor 5-Pin 3 V SOT-23 RS Stock No |
| Brand | Texas Instruments |
| Height | 1.45mm |
| Length | 3.05mm |
| Model | TPS3823-33DBVT |
| Width | 1.75mm |
| Mount Type | Surface |
| Series | TPS382 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOT-23 |
| Sub Type | Supervisory Circuits with Watchdog |
| Minimum Operating Temperature | -40°C |
| Pin Count | 5 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.1V |
| Number of Supervisors | 1 |
| Output Driver | Push Pull, Active Low |
| Reset Threshold Voltage | 3V |
| Monitored Voltage | 0V |
| Reset Active Time | 300ms |
| Texas Instruments Processor Supervisor 5-Pin SOT-23, TPS3823-33DBVTBrand | Texas Instruments |
Key Features
- Features a single supervisor designed for microprocessor voltage monitoring.
- Includes a watchdog timer for system reliability.
- Reset threshold voltage is fixed at 3 V for accurate monitoring.
- Compact 5-pin SOT-23 surface-mount package for easy PCB integration.
- Operating temperature range from -40°C to 85°C ensures durability in various environments.
- Push-pull active low output driver for efficient signal handling.
- Minimum supply voltage is 1.1 V and maximum supply voltage is 5.5 V.
- Reset active time is 300 ms to provide stable reset signals.
Product Description
Texas Instruments TPS3823-33DBVT is a precision voltage supervisor designed to monitor microprocessor supply voltages and provide system reset signals.
This 5-pin device in a compact SOT-23 package integrates a watchdog timer and a manual reset capability, making it ideal for ensuring operational reliability in electronic systems.
With a reset threshold voltage fixed at 3 V, it is designed to detect undervoltage conditions on power supplies ranging from 1.1 V minimum to 5.5 V maximum.
The device operates reliably within the industrial temperature range of -40°C to 85°C, suitable for demanding environments including industrial controls and automotive electronics which do not require automotive standard certification.
The output driver is a push-pull active low type, ensuring strong reset signal integrity to microcontrollers or processors during fault conditions.
Its compact dimensions of 3.05 mm length by 1.75 mm width and 1.45 mm height enable efficient utilization of PCB real estate, suitable for portable battery-powered equipment, test instruments, laptops, and desktop computer applications.
Texas Instruments TPS3823 series provides fixed threshold voltage levels with reset active time of approximately 300 ms for stable system reset. Features a single supervisor designed for microprocessor voltage monitoring.
Includes a watchdog timer for system reliability. Reset threshold voltage is fixed at 3 V for accurate monitoring. Compact 5-pin SOT-23 surface-mount package for easy PCB integration. Operating temperature range from -40°C to 85°C ensures durability in various environments.
Push-pull active low output driver for efficient signal handling. Minimum supply voltage is 1.1 V and maximum supply voltage is 5.5 V. Reset active time is 300 ms to provide stable reset signals. Dimensions of 3.05 mm length, 1.75 mm width, and 1.45 mm height optimize space usage on boards.
This voltage supervisor is widely used in industrial, laboratory, and commercial electronic applications for microprocessor and microcontroller system supervision. Explore more power management semiconductors and Voltage Supervisor ICs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The reset threshold voltage is fixed at 3 V, which allows for accurate monitoring of microprocessor supply voltages.
This model operates reliably within an industrial temperature range of -40°C to 85°C, making it suitable for various environments.
The dimensions of this voltage supervisor are 3.05 mm in length, 1.75 mm in width, and 1.45 mm in height.
The minimum supply voltage is 1.1 V, and the maximum supply voltage is 5.5 V.
It features a push-pull active low output driver, which ensures strong reset signal integrity during fault conditions.
The reset active time is approximately 300 ms, providing stable reset signals to the monitored system.
This voltage supervisor is housed in a compact 5-pin SOT-23 surface-mount package, facilitating easy integration onto PCBs.
It is widely used in industrial, laboratory, and commercial electronic applications for microprocessor and microcontroller system supervision.
This device integrates a single supervisor designed for voltage monitoring.
It belongs to the TPS382 series, which includes supervisory circuits with a watchdog timer.
The monitored voltage range starts from 0 V, allowing it to detect undervoltage conditions effectively.
The country of origin for this voltage supervisor is India.
