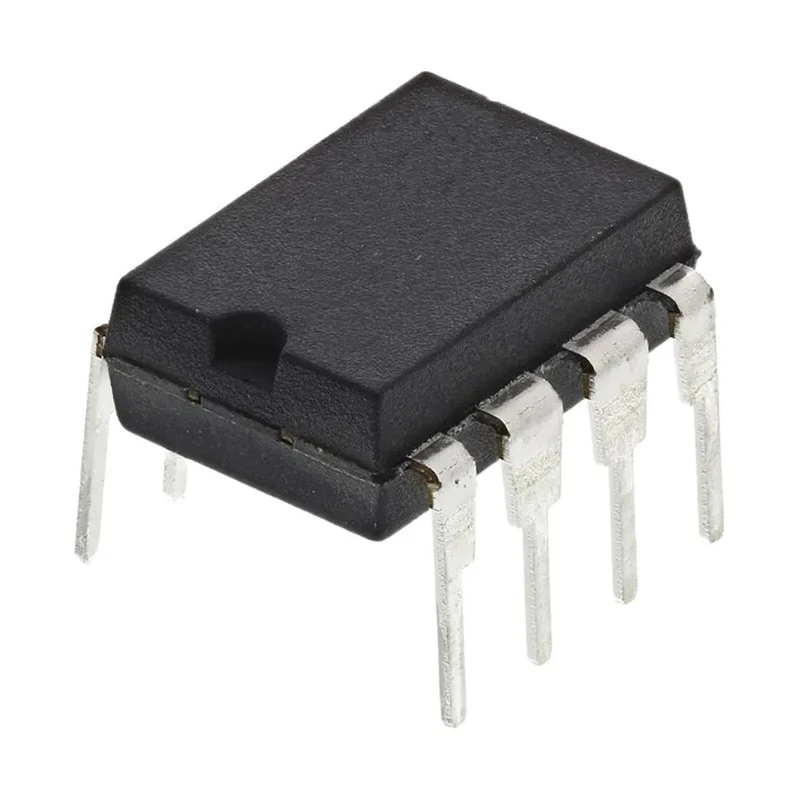

Maxim Integrated 1 Voltage Supervisor Microprocessor Supervisory Circuit PDIP 8-Pin 3.15 V Reset Threshold MAX706TCPA+

Free Delivery in India | Lowest Global Shipping Charges

Maxim Integrated 1 Voltage Supervisor Microprocessor Supervisory Circuit PDIP 8-Pin 3.15 V Reset Threshold MAX706TCPA+

Name: Maxim Integrated 1 Voltage Supervisor Microprocessor Supervisory Circuit PDIP 8-Pin 3.15 V Reset Threshold MAX706TCPA+
Brand: Maxim Integrated
SKU: 159895
Price: 6.69 USD
Availability: InStock



Category Voltage Supervisor Brand Maxim Integrated Condition New

Specifications

Country of Origin	United States
Brand	Maxim Integrated
Height	4.45mm
Length	9.91mm
Model	MAX706TCPA+
Width	7.87mm
Mount Type	Through Hole
Series	MAX706T
Maximum Operating Temperature	70°C
Package Type	PDIP
Sub Type	Microprocessor Supervisory Circuit
Minimum Operating Temperature	0°C
Pin Count	8
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	1V
Number of Supervisors	1
Output Driver	Push Pull, Active Low
Reset Threshold Voltage	3.15V
Monitored Voltage	4.4V
Reset Active Time	280ms

Key Features

Monitors supply voltage and provides a manual reset function.
Includes watchdog timer and power fail detection features.
Push pull, active low output driver for reliable system control.
Suitable for through hole mounting with PDIP package type.
Operates between 1 V minimum and 5.5 V maximum supply voltage.
Operating temperature range from 0°C to 70°C for stable performance.
Reset active time is 280 ms ensuring proper system reset timing.

Product Description

Maxim Integrated MAX706TCPA+ is a high-reliability 1 voltage supervisor microprocessor supervisory circuit designed in a PDIP 8-pin through hole package. It features a 3.15 V reset threshold voltage ideal for monitoring and supervising microprocessor supply voltages in electronic systems.

This device integrates critical functions such as a watchdog timer, manual reset, and power fail detection which help ensure system reliability in various applications including desktop computers, laptops, notebook computers, and measurement instruments. The push pull active low output driver enables controlled and dependable reset signaling.

Operating seamlessly within a supply voltage range from 1 V to 5.5 V, and suitable for operating temperatures from 0°C to 70°C, it embodies a robust solution for embedded power management needs.

Its compact size with length 9.91 mm, width 7.87 mm, and height 4.45 mm offers easy PCB integration, supported by its through hole mounting style and PDIP package type. This voltage supervisor is manufactured in the United States, delivering superior quality and reliability expected by engineers and designers.

Monitors supply voltage to prevent system failures. Incorporates watchdog timer for system monitoring. Supports manual reset for user intervention. Power fail detection for early warning of voltage drops. Push pull output driver, active low to control resets effectively.

Through hole PDIP 8-pin package for ease of installation. Operating voltage range: 1 V to 5.5 V for versatile use. Temperature range ensures performance under varied conditions. Compact dimensions allow for space-efficient circuits.

This product suits industrial, computing, electronic manufacturing, embedded systems, and laboratory applications where precision voltage supervision is critical for device integrity and safety.

Explore a wide range of Voltage Supervisors and power management ICs on EnvMart for your next project or design.
