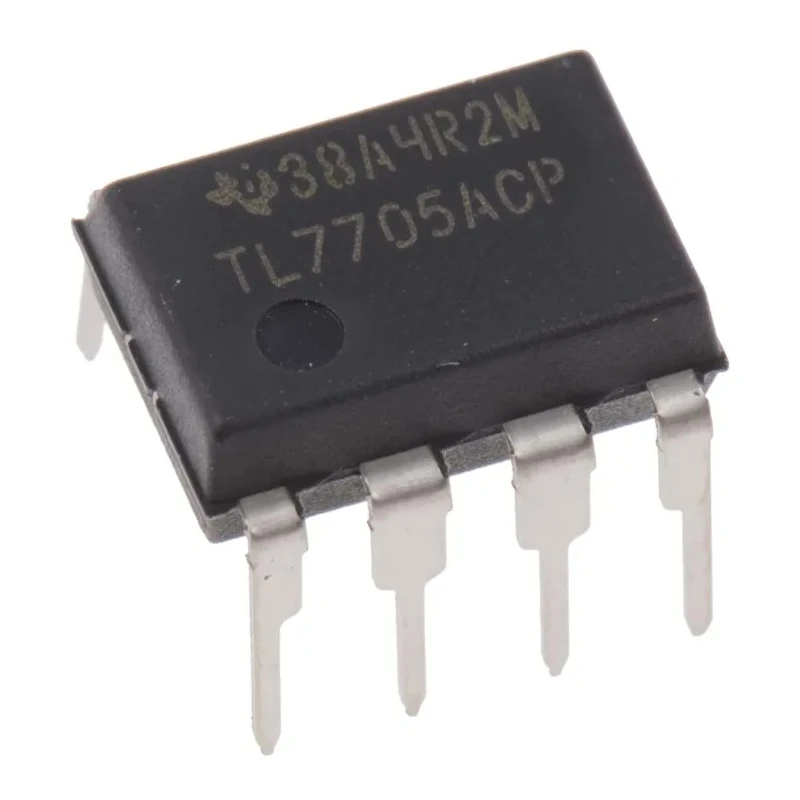

Texas Instruments Supply Voltage Supervisor 8-Pin PDIP 4.6 V Reset Threshold TL7705ACP
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Texas Instruments |
| Height | 8.26mm |
| Length | 10.16mm |
| Model | TL7705ACP |
| Width | 6.6mm |
| Mount Type | Through Hole |
| Series | TL7705A |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Sub Type | Supply |
| Minimum Operating Temperature | 0°C |
| Pin Count | 8 |
| Maximum Supply Voltage | 18V |
| Minimum Supply Voltage | 3.5V |
| Number of Supervisors | 1 |
| Output Driver | Active Low |
| Reset Threshold Voltage | 4.6V |
| Monitored Voltage | 0V |
Key Features
- The device features active low output driver for reliable reset signaling.
- It operates within temperature range of 0°C to 70°C ensuring stable performance.
- Minimum supply voltage is 3.5 V and maximum supply voltage is 18 V, suitable for varied applications.
- The PDIP through-hole mount package size is compact with dimensions 10.16mm length, 8.26mm height, and 6.6mm width.
- Designed specifically for supply voltage monitoring in microprocessor and microcontroller systems.
- The device does not include a watchdog timer or manual reset functionality.
- It supports 1 supply voltage supervisor with reset threshold fixed at 4.6 V.
- Originates from Malaysia ensuring quality manufacture.
Product Description
Texas Instruments TL7705ACP is a high-reliability supply voltage supervisor IC housed in an 8-pin PDIP through-hole package. It monitors microprocessor supply voltages and provides a reset signal at a fixed threshold voltage of 4.6 V. This device operates over a temperature range of 0°C to 70°C and supply voltage range from 3.5 V to 18 V, suitable for desktop computers, portable battery-powered instruments, and multiple-output power supplies.
The TL7705ACP features an active low output driver used for generating reset signals to ensure system stability during power fluctuations. It has 1 supervisor channel without watchdog timer or manual reset capabilities, simplifying design for supply voltage detection tasks. The compact PDIP package (dimensions: 10.16mm length, 8.26mm height, 6.6mm width) allows easy integration in through-hole PCB layouts.
This voltage supervisor finds applications in embedded system power monitoring, microcontroller and microprocessor reset supervision, and power supply fail detection for improved system reliability. The device is ideal for industrial, consumer electronics, laboratory instruments, and computer hardware environments requiring accurate and robust power supply supervision.
The voltage supervisor helps prevent erratic MCU operation by ensuring proper reset below 4.6 V. Its wide operating voltage range and temperature tolerance suit diverse electronics applications. The PDIP package facilitates prototyping and manufacturing with through-hole PCBs.
Active low open-drain reset output interfaces easily with various controllers. Single supervisor channel optimizes cost and simplicity for power fail detection. Durable construction and manufacturing quality provide long-term operational stability.
Compatible with microprocessor and power management integrated circuits in electronics and industrial automation. Explore the Electronics & Electricals category on EnvMart to find more power management ICs and Voltage Supervisors from reputable brands like Texas Instruments.
