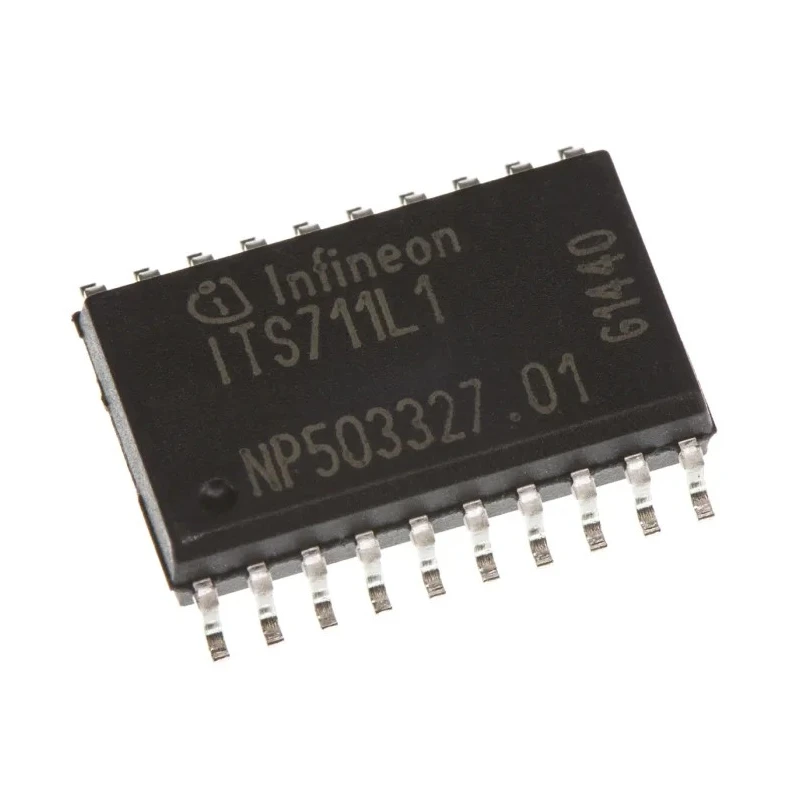

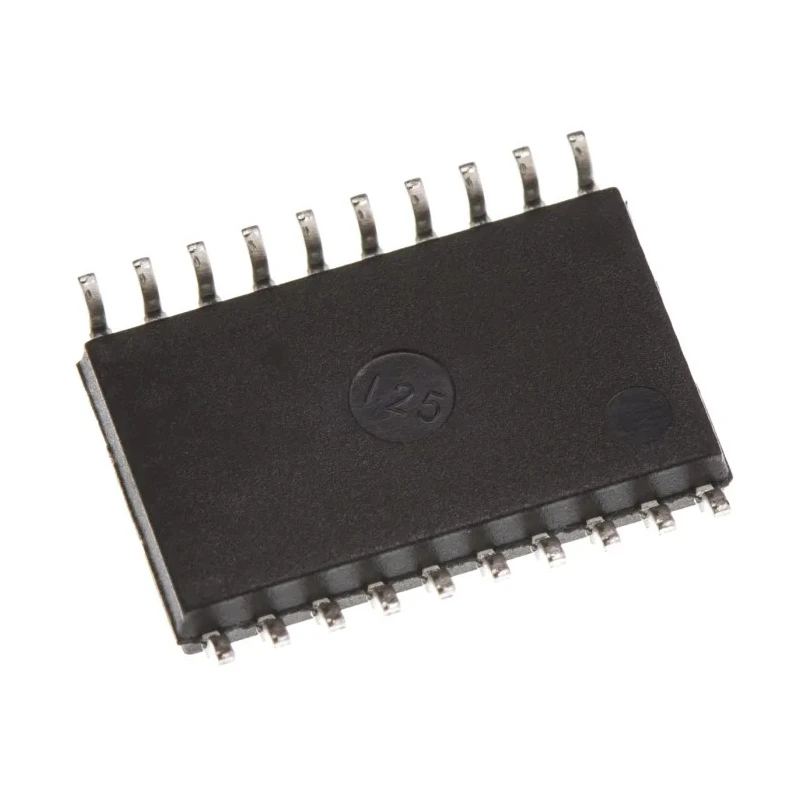

Infineon PROFET Smart High-Side Power Switch IC 4 Outputs 3.6W 5-34V 4.4A Surface Mount SOIC 20-Pin ITS711L1FUMA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 2.45mm |
| Length | 12.8mm |
| Model | ITS711L1FUMA1 |
| Width | 7.6mm |
| Mount Type | Surface |
| Number of inputs | 4 |
| Series | PROFET |
| Power Rating | 3.6W |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -30°C |
| Operating Current | 4.4A |
| Number of outputs | 4 |
| Pin Count | 20 |
| Maximum Supply Voltage | 34V |
| Minimum Supply Voltage | 5V |
| Switch On Resistance RdsOn | 400mΩ |
Key Features
- Features a low switch on resistance of 400 milliohms ensuring minimal power loss.
- Delivers a power rating of 3.6 watts suitable for medium power switching applications.
- Operates with a supply voltage range from 5 to 34 volts.
- Surface-mounted SOIC 20-pin package enables compact PCB designs.
- Rated for an operating current of 4.4 amperes across four integrated outputs.
- Includes built-in protections such as overload, short-circuit, thermal shutdown, and overvoltage safeguards.
- Operates reliably within temperatures from minus 30 up to 85 degrees Celsius.
- Designed without automotive standard certification but suitable for industrial power management.
Product Description
Infineon ITS711L1FUMA1 is a PROFET Smart High-Side Power Switch IC offering robust multi-channel power switching suitable for various industrial, laboratory, and automotive-related electronics applications. This device integrates four high-side switches, enabling efficient power management and control with superior protection features.
The device features a low on-resistance of 400 milliohms, minimizing power dissipation during switching. It supports a continuous power rating of 3.6 watts and operates reliably across a supply voltage range of 5 to 34 volts, accommodating diverse power supply designs.
Compact surface mount SOIC 20-pin packaging allows easy integration into circuit boards where space is limited. Each output can deliver operating currents up to 4.4 amperes, providing versatility for medium-power loads. The ITS711L1FUMA1 implements several protective functions including overload protection, current limitation, short-circuit shutdown, thermal shutdown, and overvoltage protection, enhancing reliability during operation in demanding industrial environments.
Designed to operate in ambient temperatures from -30°C to +85°C, this power switch IC is ideal for use in environments with wide temperature fluctuations encountered in industrial and automotive power control systems.
The device dimensions are 12.8 mm in length, 7.6 mm in width, and 2.45 mm in height. The absence of specific automotive certification does not limit its suitability for power management tasks in many industrial control and electronic management systems.
Low switch on resistance of 400mΩ ensures efficiency. Supports 3.6W power rating for moderate power control. Supply voltage range from 5V to 34V adapts to various systems. Surface mount SOIC 20-pin package for compact PCB layouts.
Four outputs deliver up to 4.4A operating current each. Incorporates overload, short circuit, thermal shutdown, and overvoltage protection. Wide operating temperature of -30°C to 85°C for industrial robustness. Compact dimensions for space saving design integration.
Commonly used in power management for industrial machines, laboratory control electronics, HVAC systems, and automotive power switching applications. This component provides designers with a reliable and efficient solution for multi-channel power switching needs.
Discover more power management ICs and components at EnvMart for your industrial electronic design and manufacturing requirements.
Explore more products in our Power Switch ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a power rating of 3.6 watts, making it suitable for medium power switching applications.
It operates within a supply voltage range of 5 to 34 volts, accommodating various power supply designs.
Each of the four outputs can deliver an operating current of up to 4.4 amperes.
The ITS711L1FUMA1 features a low switch on resistance of 400 milliohms, ensuring minimal power loss during operation.
The device measures 12.8 mm in length, 7.6 mm in width, and 2.45 mm in height.
It comes in a surface-mounted SOIC 20-pin package, allowing for compact PCB designs.
This unit operates reliably in ambient temperatures from -30°C to +85°C.
It includes overload protection, current limitation, short-circuit shutdown, thermal shutdown, and overvoltage protection.
This model integrates four outputs, enabling efficient multi-channel power management.
While it is not certified for automotive standards, it is suitable for industrial power management tasks.
The ITS711L1FUMA1 is manufactured in India.
This power switch IC is part of the PROFET series by Infineon.
