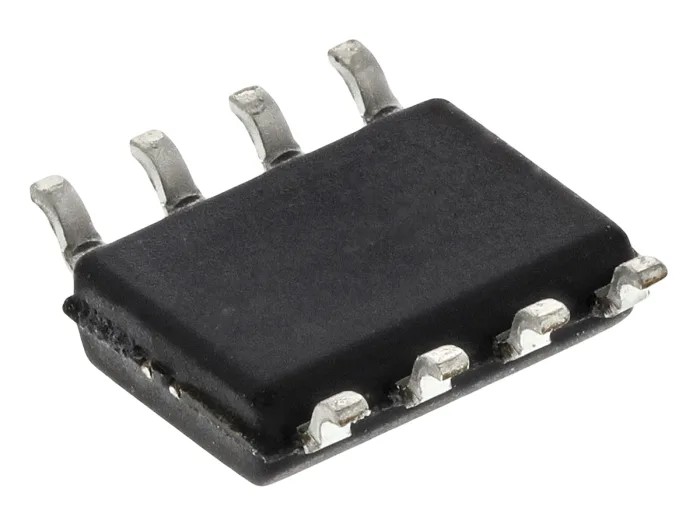

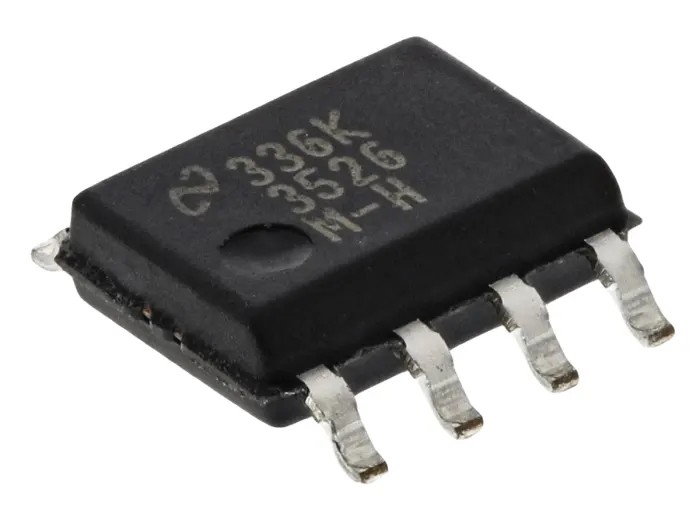

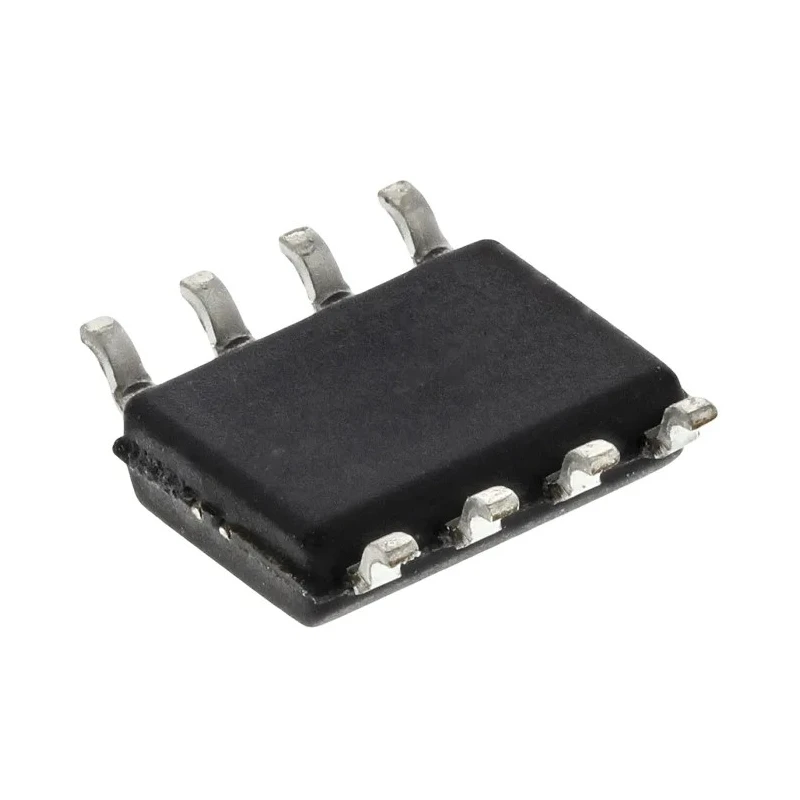

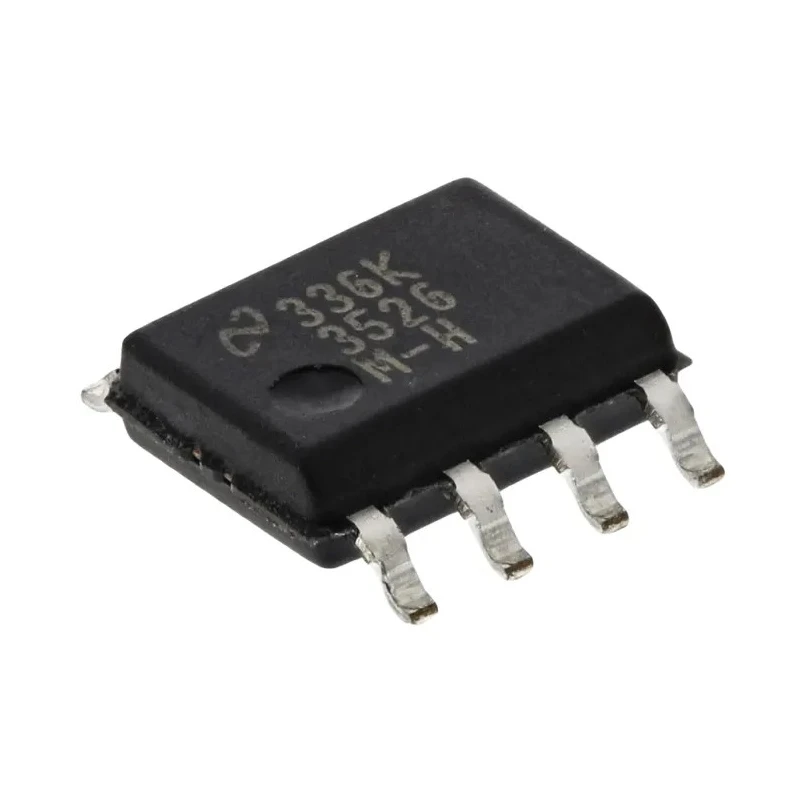

Texas Instruments High Side Power Switch IC 8-Pin SOIC LM3526M-H/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.45mm |
| Length | 4.9mm |
| Model | LM3526M-H/NOPB |
| Width | 3.9mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Operating Current | 2.2A |
| Number of outputs | 4 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.7V |
| Switch On Resistance RdsOn | 100mΩ |
Key Features
- Features a fixed current-limited switch topology for high-side power switching.
- Supports a maximum supply voltage of 5.5 volts with minimum supply voltage of 2.7 volts.
- On resistance RdsOn of 100 milliohms reducing power loss.
- Operates within a temperature range of -40°C to +85°C suitable for industrial environments.
- Drive up to 2.2 amperes operating current for driving multiple outputs.
- Compact surface mount SOIC package with 8 pins, dimensions 4.9 mm × 3.9 mm × 1.45 mm.
- Includes 4 outputs to facilitate multi-channel power switching functions.
- Complies with RoHS environmental standards for lead-free manufacturing.
Product Description
Texas Instruments LM3526M-H/NOPB is a high side power switch IC featuring a fixed current-limited switch topology optimized for high-efficiency power control applications. Packaged in an 8-pin SOIC surface mount configuration, it offers compact dimensions of 4.9 mm length, 3.9 mm width, and 1.45 mm height, suitable for dense PCB layouts.
This IC supports a supply voltage range from 2.7 V to 5.5 V and delivers an operating current of up to 2.2 A, with a low switch on resistance of 100 milliohms to minimize conduction losses. It includes 4 outputs allowing multi-channel power switching capabilities.
Operating reliably in temperatures from -40°C to 85°C, it is designed for robust performance in industrial and commercial electronic devices including USB power and charging port controllers.
The device complies with RoHS environmental standards ensuring lead-free manufacturing processes. The SOIC package facilitates surface mounting and efficient integration into electronic assemblies.
This power switch IC is widely used in power management IC applications, semiconductors, and electronic components sectors for controlling high side loads reliably. Its compact size and multi-output functionality make it ideal for modern electronic designs demanding space and performance efficiency.
Features a fixed current-limited switch topology for high-side power switching. Supports a maximum supply voltage of 5.5 volts with minimum supply voltage of 2.7 volts. On resistance RdsOn of 100 milliohms reducing power loss.
Operates within a temperature range of -40°C to +85°C suitable for industrial environments. Drive up to 2.2 amperes operating current for driving multiple outputs. Compact surface mount SOIC package with 8 pins, dimensions 4.9 mm × 3.9 mm × 1.45 mm.
Includes 4 outputs to facilitate multi-channel power switching functions. Complies with RoHS environmental standards for lead-free manufacturing. Ideal for USB power and charging port controller applications. Designed for use in industrial, electronics manufacturing, and power management systems.
Explore the complete range of power management ICs and electronic components at EnvMart for reliable industrial solutions.
Explore more products in our Power Switch ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can drive up to 2.2 amperes of operating current, allowing it to support multiple outputs effectively.
The LM3526M-H/NOPB supports a supply voltage range from 2.7 volts to 5.5 volts.
It features a low switch on resistance (RdsOn) of 100 milliohms, which helps to reduce power loss during operation.
The compact SOIC package measures 4.9 mm in length, 3.9 mm in width, and 1.45 mm in height.
The LM3526M-H/NOPB operates reliably within a temperature range of -40°C to 85°C, making it suitable for industrial environments.
This power switch IC includes 4 outputs, facilitating multi-channel power switching functions.
It is designed for surface mounting, which is ideal for dense PCB layouts.
This model complies with RoHS environmental standards, ensuring lead-free manufacturing processes.
It is widely used in power management applications, including USB power and charging port controllers.
The LM3526M-H/NOPB features an 8-pin configuration, suitable for various electronic designs.
The country of origin for this model is India.
This topology is optimized for high-efficiency power control applications, ensuring reliable high-side power switching.
