Microchip High Side USB Power Power Switch IC 8-Pin SOIC MIC2505-1YM

Free Delivery in India | Lowest Global Shipping Charges

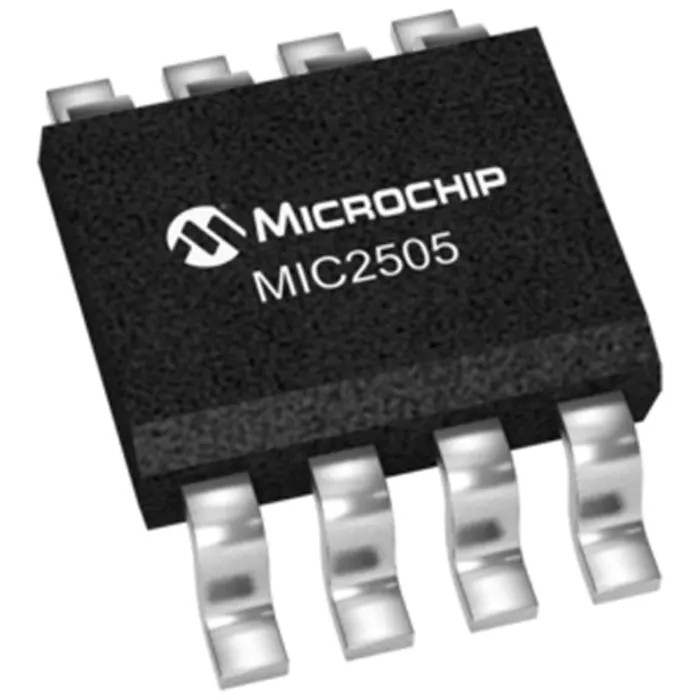

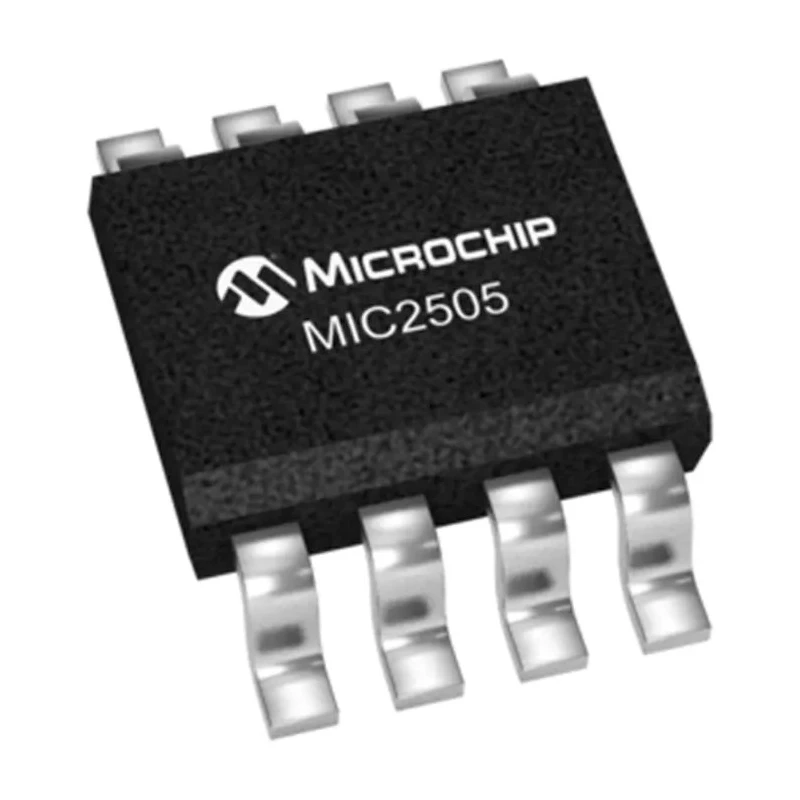

Microchip High Side USB Power Power Switch IC 8-Pin SOIC MIC2505-1YM

Name: Microchip High Side USB Power Power Switch IC 8-Pin SOIC MIC2505-1YM
Brand: Microchip
SKU: 136304
Price: 2.25 USD
Availability: InStock



Category Power Switch ICs Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	1.48mm
Length	4.93mm
Model	MIC2505-1YM
Width	3.94mm
Mount Type	Surface
Number of inputs	1
Maximum Operating Temperature	85°C
Package Type	SOIC
Minimum Operating Temperature	-40°C
Operating Current	4A
Number of outputs	5
Pin Count	8
Maximum Supply Voltage	7.5V
Minimum Supply Voltage	3V
Switch On Resistance RdsOn	50mΩ

Key Features

Features a low switch on resistance of 50 milliohms for efficiency.
Supports one input and five outputs for power distribution.
Operates with a supply voltage range from 3V to 7.5V.
Surface mount package type SOIC with 8 pins.
Rated for operation in temperatures from -40°C to 85°C.
Compact dimensions with length 4.93mm, width 3.94mm, and height 1.48mm.
Ideal for USB peripherals and general-purpose power distribution in desktop and notebook computers.
Designed by Microchip, ensuring quality and reliability in power management.

Product Description

Microchip MIC2505-1YM is a high side USB power power switch integrated circuit packaged in an 8-Pin SOIC format. It is engineered for efficient power management in electronic devices, especially suited for USB peripherals and general power distribution applications in desktop and notebook PCs.

This power switch IC features a low on-resistance of 50 milliohms, enabling minimal power loss and high efficiency while delivering an operating current of 4 amperes. It supports one input and five output channels, providing versatile power control within systems.

The device operates within a wide supply voltage range from 3 volts minimum to 7.5 volts maximum, suitable for various power supply configurations. The compact SOIC package measures 4.93mm in length, 3.94mm in width, and 1.48mm in height, making it suitable for surface mount applications.

Engineered for durability, the MIC2505-1YM can withstand temperature ranges from -40°C to 85°C, ensuring stable operation in demanding industrial and commercial environments. Low switch on resistance of 50mΩ enhances efficiency.

Supports 1 input and 5 outputs for power distribution. Operates from 3V to 7.5V supply voltage. Rated for 4A operating current for high load scenarios. Compact SOIC 8-Pin surface mount package. Wide operating temperature range from -40°C to 85°C.

Designed for USB peripherals and computer power management. Reliable high side power switching from Microchip.

Typically used in industrial, computing, and commercial electronic applications, this power switch IC facilitates efficient power distribution and protection in USB-powered devices and beyond.
