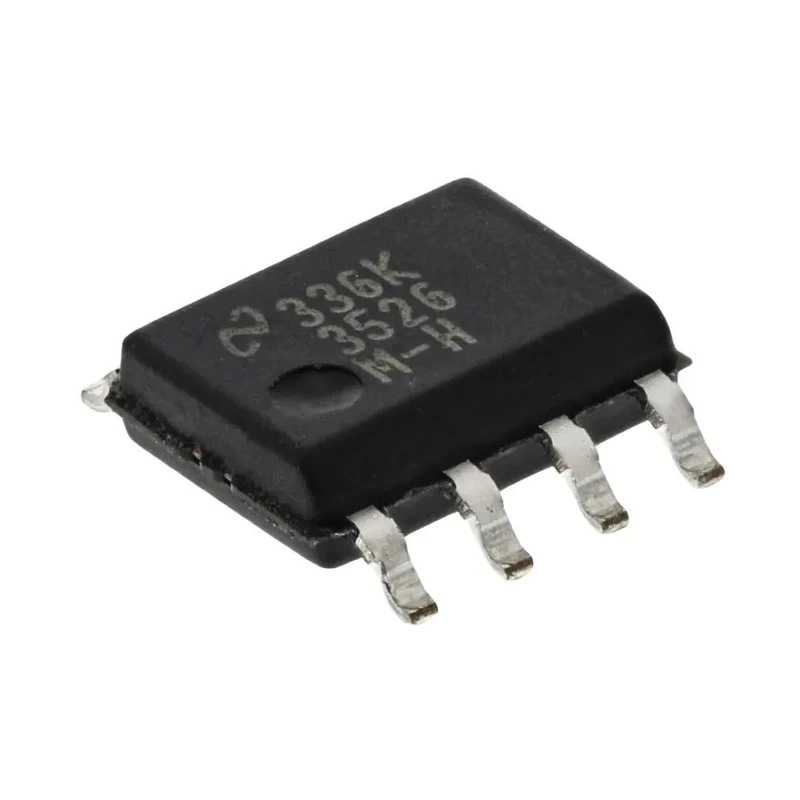

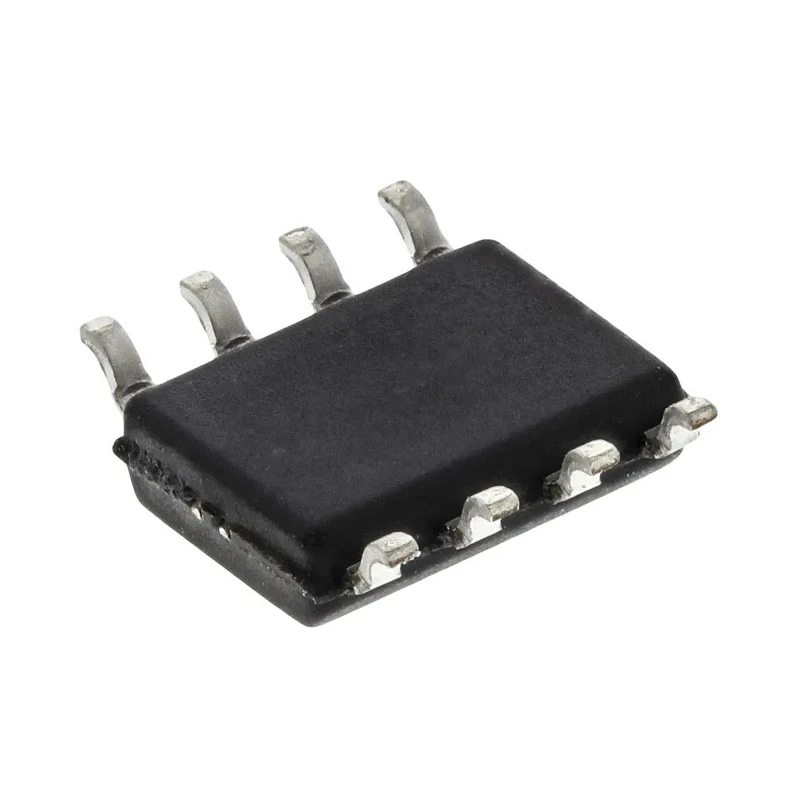

Texas Instruments High Side Power Switch IC 8-Pin SOIC LM3526M-H/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.45mm |
| Length | 4.9mm |
| Model | LM3526M-H/NOPB |
| Width | 3.9mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Operating Current | 2.2A |
| Number of outputs | 4 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.7V |
| Switch On Resistance RdsOn | 100mΩ |
Key Features
- Operates with a minimum supply voltage of 2.7 volts.
- Maximum supply voltage rating of 5.5 volts ensures stable performance.
- Features a low switch on resistance RdsOn of 100 milliohms.
- Supports four outputs with a high side switching topology.
- Operating current capacity up to 2.2 amperes for efficient power switching.
- Surface mount device with an 8-pin SOIC package for compact PCB design.
- Designed to operate between -40 degrees Celsius and 85 degrees Celsius ambient temperatures.
- Complies with RoHS standards for environmental compliance.
Product Description
The Texas Instruments LM3526M-H/NOPB is a high side power switch IC featuring a compact 8-pin SOIC surface mount package. It is specifically designed for power management circuits requiring reliable high side switching capability and low on-resistance. The device supports four switched outputs, providing efficient power distribution in electronic applications.
Operating at a minimum supply voltage of 2.7 V and tolerating up to 5.5 V maximum supply voltage, this switch offers a robust voltage range suited for varied electronic designs. The low on-resistance of 100 milliohms minimizes power loss and heat generation, enhancing energy efficiency and device longevity.
With an operating current rating of 2.2 A, the LM3526 accommodates moderate current switching needs while maintaining safe thermal characteristics. The device functions reliably within a wide temperature range from -40°C to +85°C, suitable for industrial and commercial electronics environments.
The SOIC package dimensions of 4.9 mm length, 3.9 mm width, and 1.45 mm height ensure easy integration into printed circuit boards with limited space. Although not automotive certified, the IC complies with RoHS standards, ensuring it meets environmental requirements.
This power switch IC is ideal for applications in power management, USB power controllers, and other electronic devices requiring efficient and compact power switching solutions. Industrial, laboratory, commercial, and consumer electronics benefit from its small footprint and performance characteristics.
Operates with a minimum supply voltage of 2.7 volts. Maximum supply voltage rating of 5.5 volts ensures stable performance. Features a low switch on resistance RdsOn of 100 milliohms. Supports four outputs with a high side switching topology.
Operating current capacity up to 2.2 amperes for efficient power switching. Surface mount device with an 8-pin SOIC package for compact PCB design. Designed to operate between -40 degrees Celsius and 85 degrees Celsius ambient temperatures.
Complies with RoHS standards for environmental compliance. Compact dimensions: Length 4.9 mm, Width 3.9 mm, Height 1.45 mm. Automotive standard compliance is not applicable for this model. Explore more power management ICs from Texas Instruments and find compatible components in the Power Switch ICs category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LM3526M-H/NOPB operates with a minimum supply voltage of 2.7 volts and a maximum supply voltage of 5.5 volts.
This power switch IC has an operating current capacity of up to 2.2 amperes.
The switch on resistance (RdsOn) for the LM3526M-H/NOPB is 100 milliohms.
It supports four outputs with a high side switching topology.
The SOIC package dimensions are 4.9 mm in length, 3.9 mm in width, and 1.45 mm in height.
This power switch IC is designed to operate between -40 degrees Celsius and 85 degrees Celsius.
Yes, it complies with RoHS standards for environmental compliance.
It is a surface mount device, suitable for compact PCB designs.
The country of origin for the LM3526M-H/NOPB is India.
No, automotive standard compliance is not applicable for this model.
The LM3526M-H/NOPB has a pin count of 8.
