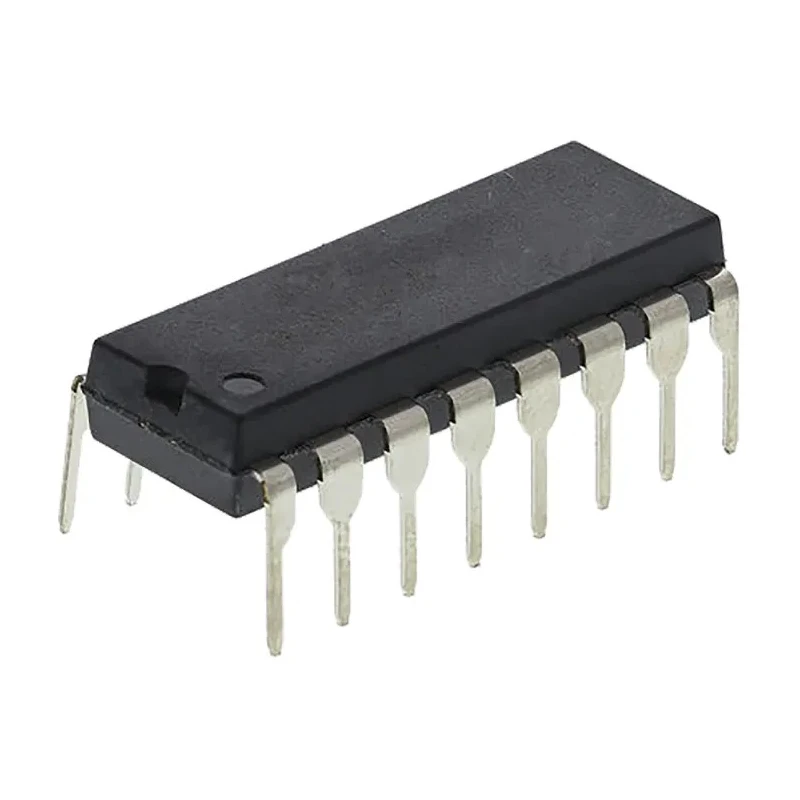

Vishay Analogue Switch 4 CMOS Quad SPST 16-Pin PDIP DG444DJ-E3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 3.81mm |
| Length | 21.33mm |
| Model | DG444DJ-E3 |
| Width | 7.11mm |
| Mount Type | Through Hole |
| Output type | CMOS/TTL |
| Series | DG444 |
| Configuration | Quad SPST |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Pin Count | 16 |
| Number of Elements per Chip | 4 |
| Maximum Supply Voltage | 36V |
| Logic Family | CMOS |
| Minimum Supply Voltage | -5V |
| Maximum On State Resistance | 200Ω |
Key Features
- Logic family CMOS for low power consumption.
- Contains 4 switching elements per chip for multiple signal paths.
- 16-pin PDIP through-hole mount package for ease of integration.
- Supports minimum supply voltage of -5V and maximum of 36V.
- Operating temperature range from -40°C to 85°C suitable for varied environments.
- Maximum on state resistance of 200Ω ensures low signal loss.
- Configured as a Quad Single-Pole Single-Throw (SPST) analogue switch.
- Output compatible with CMOS and TTL logic levels.
Product Description
Vishay DG444DJ-E3 is a precision analogue switch featuring 4 CMOS quad SPST elements housed in a 16-pin PDIP package designed for accurate signal routing and switching. This device operates within a voltage supply range of -5V to 36V and can function reliably in temperatures ranging from -40°C to 85°C, making it suited for industrial, laboratory, and electronic testing environments.
The CMOS logic family ensures low power consumption while maintaining high switching accuracy. The compact PDIP form factor with dimensions of 21.33mm length, 7.11mm width, and 3.81mm height allows seamless integration into through-hole PCBs.
With a maximum on state resistance of 200Ω, the DG444DJ-E3 provides low signal distortion and efficient switching performance. Its compatibility with both CMOS and TTL output types makes it versatile for various digital and analogue circuit designs.
This quad switch package supports multiple switching elements per chip, facilitating efficient multiplexing and demultiplexing in communication and signal processing applications. Typical use cases include instrumentation, portable devices, test equipment, and computer peripheral systems requiring precise multiplexer control.
Logic family: CMOS for efficient low power operation. 4 switching elements enable multiple channel control. 16-pin PDIP package for standardized mounting. Wide supply voltage tolerance from -5V to 36V. Extended operating temperature from -40°C to 85°C.
Low on-state resistance of 200Ω for minimal signal loss. Compact physical dimensions ensure PCB space efficiency. Quad SPST configuration for flexible signal switching. Compatible with CMOS and TTL output logic. Well-suited for industrial, laboratory, and computer applications.
Explore Vishay's extensive range of analogue switch components and related semiconductor products at EnvMart for your industrial and electronic design requirements.
Explore more products in our Multiplexer & Demultiplexer ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a supply voltage range of -5V to 36V.
The maximum operating temperature for the DG444DJ-E3 is 85°C.
It contains 4 switching elements per chip, configured as a Quad Single-Pole Single-Throw (SPST) analogue switch.
The dimensions of this model are 21.33mm in length, 7.11mm in width, and 3.81mm in height.
It uses a 16-pin PDIP (Plastic Dual In-line Package) for through-hole mounting.
The output is compatible with both CMOS and TTL logic levels.
The maximum on-state resistance is 200Ω, which helps ensure low signal distortion.
The minimum operating temperature for the DG444DJ-E3 is -40°C.
This model belongs to the CMOS logic family, which is designed for low power consumption.
Typical applications include instrumentation, portable devices, test equipment, and computer peripheral systems requiring precise multiplexer control.
It is designed for through-hole mounting, making it easy to integrate into PCBs.
The country of origin for this model is India.
