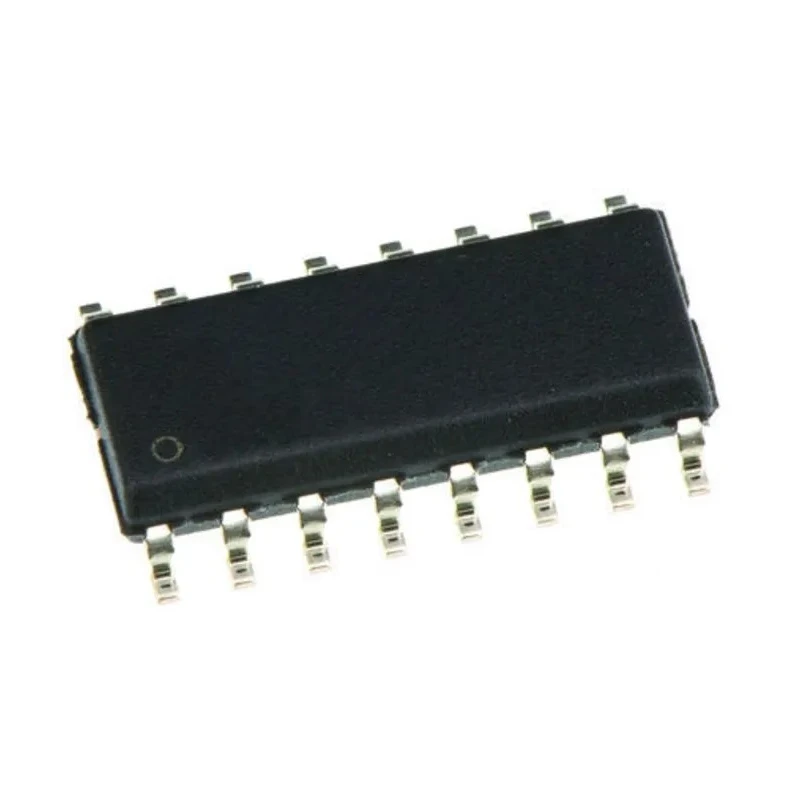

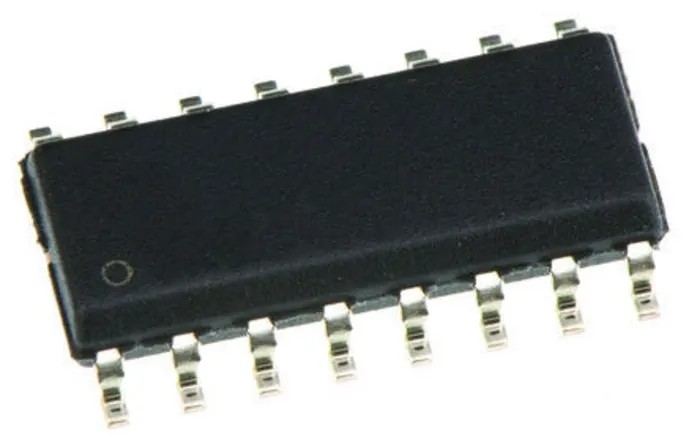

Nexperia Dual 4-Channel Analogue Multiplexer/Demultiplexer, 2 CMOS DPDT, 16-Pin SO HEF4052BT,653
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1.45mm |
| Length | 10mm |
| Model | HEF4052BT,653 |
| Width | 4mm |
| Mount Type | Surface |
| Output type | Symmetrical |
| Series | HEF4052B |
| Configuration | DPDT |
| Maximum Operating Temperature | 125°C |
| Package Type | SO |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | JEDEC JESD 13-B |
| Pin Count | 16 |
| Number of Elements per Chip | 2 |
| Maximum Supply Voltage | 15V |
| Logic Family | CMOS |
| Minimum Supply Voltage | 3V |
| Wide operating voltage range | 3 to 18V |
| Multiplexer/Demultiplexer | Multiplexer, Demultiplexer |
| Maximum On State Resistance | 2500Ω |
Key Features
- The device supports a wide operating voltage range from 3 to 15 volts.
- It features symmetrical output type and surface mount SO package with 16-pin count.
- The maximum on-state resistance is 2500 ohms, ensuring reliable signal transmission.
- Operating temperature ranges from -40°C to 125°C for robust performance.
- The compact size with dimensions 10mm length, 4mm width, and 1.45mm height fits various circuit board designs.
- Configuration is double pole double throw (DPDT), with 2 elements per chip supporting dual 4-channel functionality.
- This CMOS logic IC complies with JEDEC JESD 13-B standards for consistent quality.
- Ideal for electronic circuits requiring analogue switching in industrial and laboratory environments.
Product Description
Nexperia HEF4052BT,653 is a dual 4-channel analogue multiplexer/demultiplexer integrated circuit built on CMOS technology, packaged in a 16-pin SO (Small Outline) surface mount device. It operates within a voltage range of 3V to 15V, suitable for a wide array of electronic applications involving switching of analogue signals.
The device contains two elements per chip, each configured as double pole double throw (DPDT), enabling simultaneous multiplexing and demultiplexing functions. Its symmetrical output type ensures consistent signal integrity. The maximum on-state resistance is 2500 ohms, minimizing signal loss during operation.
Designed for reliable and efficient performance, it withstands operating temperatures from -40°C to 125°C, making it adaptable for demanding industrial, laboratory, and manufacturing environments. The compact dimensions of 10mm length, 4mm width, and 1.45mm height facilitate easy integration into PCBs with space constraints.
This component complies with JEDEC JESD 13-B standards, assuring industry-grade quality and interoperability. Its CMOS logic family offers low power consumption and high-speed switching capabilities.
Applications include electronic circuit multiplexing, signal routing, and switching in measurement instruments, communication devices, and control systems. The device supports a wide operating voltage range from 3 to 15 volts.
It features symmetrical output type and surface mount SO package with 16-pin count. The maximum on-state resistance is 2500 ohms, ensuring reliable signal transmission. Operating temperature ranges from -40°C to 125°C for robust performance.
The compact size with dimensions 10mm length, 4mm width, and 1.45mm height fits various circuit board designs. Configuration is double pole double throw (DPDT), with 2 elements per chip supporting dual 4-channel functionality.
This CMOS logic IC complies with JEDEC JESD 13-B standards for consistent quality. Ideal for electronic circuits requiring analogue switching in industrial and laboratory environments. Explore more semiconductor logic ICs like multiplexers and demultiplexers at EnvMart for reliable and high-performance electronic design solutions.
Explore more products in our Multiplexer & Demultiplexer ICs category.
