Vishay Analogue Switch 4 CMOS Quad SPST 16-Pin miniQFN DG612EEN-T1-GE4

Free Delivery in India | Lowest Global Shipping Charges

Vishay Analogue Switch 4 CMOS Quad SPST 16-Pin miniQFN DG612EEN-T1-GE4

Name: Vishay Analogue Switch 4 CMOS Quad SPST 16-Pin miniQFN DG612EEN-T1-GE4
Brand: Vishay
SKU: 95438
Price: 1.14 USD
Availability: InStock



Category Multiplexer & Demultiplexer ICs Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	0.55mm
Length	2.7mm
Model	DG612EEN-T1-GE4
Width	1.9mm
Mount Type	Surface
Output type	CMOS/TTL
Series	DG612E
Configuration	Quad SPST
Maximum Operating Temperature	125°C
Package Type	miniQFN
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	16
Number of Elements per Chip	4
Maximum Supply Voltage	16V
Logic Family	CMOS
Minimum Supply Voltage	-3V
Maximum On State Resistance	500Ω

Key Features

Suitable for operating voltages from -3 V to 16 V providing flexible power supply options.
Low on-state resistance up to 500 ohms ensuring efficient signal switching.
Wide operating temperature range from -40°C to 125°C for robust performance.
Compact package dimensions of 2.7mm length, 1.9mm width, and 0.55mm height support space-saving PCB designs.
Low charge injection and leakage current characteristics enhance signal integrity.
Compatible with 2.5 V CMOS/TTL logic levels for diverse digital applications.
Excellent bandwidth performance and isolation characteristics minimize crosstalk and signal loss.
RoHS compliant construction meets environmental safety standards.

Product Description

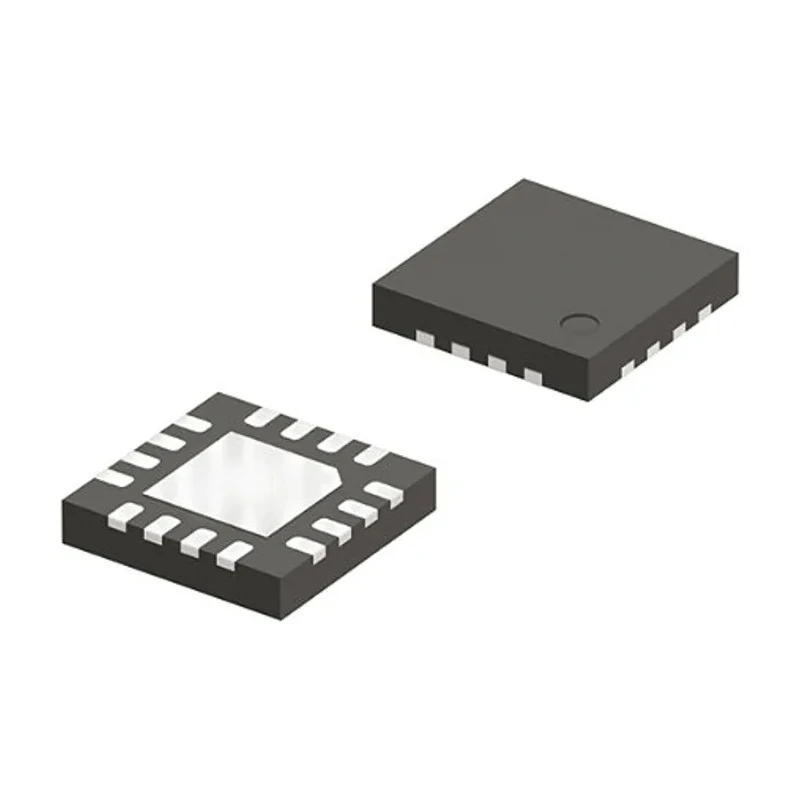

Vishay DG612EEN-T1-GE4 analogue switch integrates four independently controlled single-pole single-throw (SPST) CMOS switches, optimized for precise signal routing in electronic circuits. Packaged in a 16-pin miniQFN surface mount form factor, it facilitates compact and reliable PCB layouts for modern electronics.

Operating voltage ranges from a minimum of -3 V to a maximum of 16 V, allowing single supply voltages from 3 V to 12 V or dual supplies from ±3 V to ±5 V, making it adaptable to various power configurations. The device operates reliably between -40°C and 125°C, suitable for industrial and commercial applications requiring durability under temperature extremes.

Its maximum on-state resistance of 500 ohms ensures efficient conduction with minimal signal degradation. Low charge injection (typically 1.4 pC) and leakage current below 0.25 nA at 85°C contribute to high signal fidelity. The miniQFN package measures 2.7 mm long, 1.9 mm wide, and 0.55 mm high, supporting high-density mounting requirements.

Designed for CMOS and TTL logic interfacing, the DG612EEN-T1-GE4 supports low-voltage 2.5 V logic levels, making it suitable for integration with a wide range of digital systems. The device features excellent isolation (-59 dB at 10 MHz) and crosstalk (-74 dB at 10 MHz) performance, critical for multiplexing and demultiplexing functions.

Low on resistance minimizes power loss. RoHS compliant and lead-free manufacturing. Temperature range suitable for harsh environments. Compact miniQFN package for space-constrained designs. Signal integrity maintained through low charge injection and leakage.

This analogue switch is ideal for use in industrial automation, communications, consumer electronics, and automotive control systems where precise, low-power signal switching is required. Its surface mount design facilitates automated PCB assembly and high-volume manufacturing.

For further applications, design support, 3D models, schematics, and technical documents are available through Vishay's resources. Explore additional semiconductor and multiplexer/demultiplexer solutions in the Electronics & Electricals category at EnvMart.

Explore more products in our Multiplexer & Demultiplexer ICs category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The Vishay DG612EEN-T1-GE4 operates within a voltage range of -3 V to 16 V, allowing for various single and dual supply configurations.

The maximum on-state resistance of the DG612EEN-T1-GE4 is 500 ohms, ensuring efficient signal conduction with minimal degradation.

This model features a compact miniQFN package with dimensions of 2.7 mm in length, 1.9 mm in width, and 0.55 mm in height.

The device operates reliably between -40°C and 125°C, making it suitable for various industrial and commercial applications.

The DG612EEN-T1-GE4 is compatible with 2.5 V CMOS and TTL logic levels, allowing integration with a wide range of digital systems.

The device features excellent isolation performance of -59 dB at 10 MHz, which is critical for minimizing signal loss during multiplexing and demultiplexing.

The DG612EEN-T1-GE4 has a low charge injection typically around 1.4 pC, which helps maintain high signal integrity.

The leakage current for this model is below 0.25 nA at 85°C, contributing to its high signal fidelity.

This analogue switch integrates four independently controlled single-pole single-throw (SPST) switches, allowing for precise signal routing.

The DG612EEN-T1-GE4 is designed for surface mounting, facilitating automated assembly and high-density PCB layouts.

Yes, the DG612EEN-T1-GE4 is RoHS compliant, meeting environmental safety standards for electronic components.

This model is suitable for applications in industrial automation, communications, consumer electronics, and automotive control systems requiring precise signal switching.
