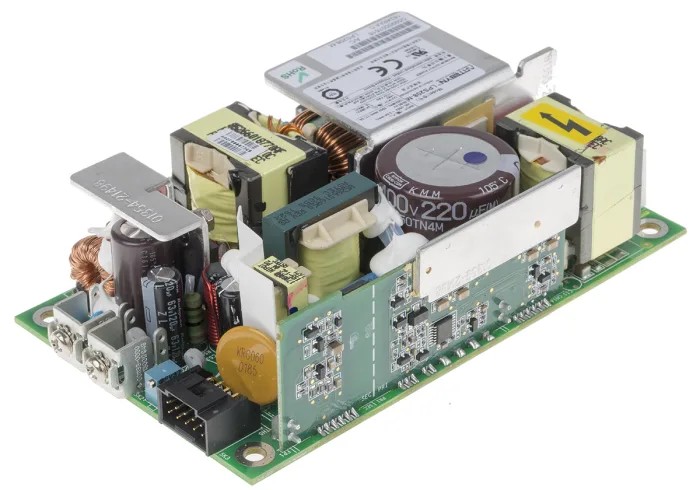

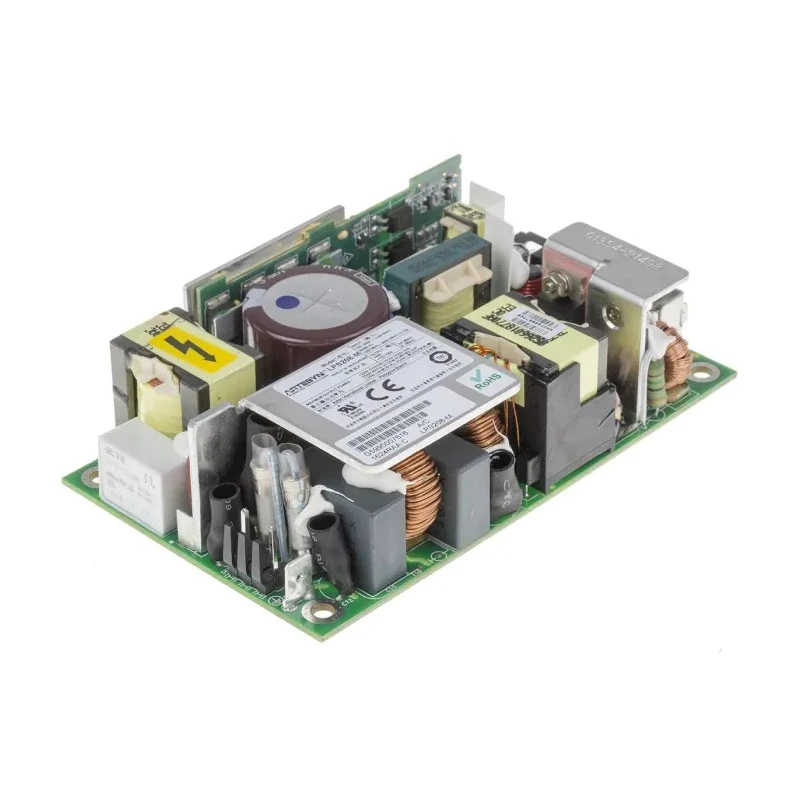

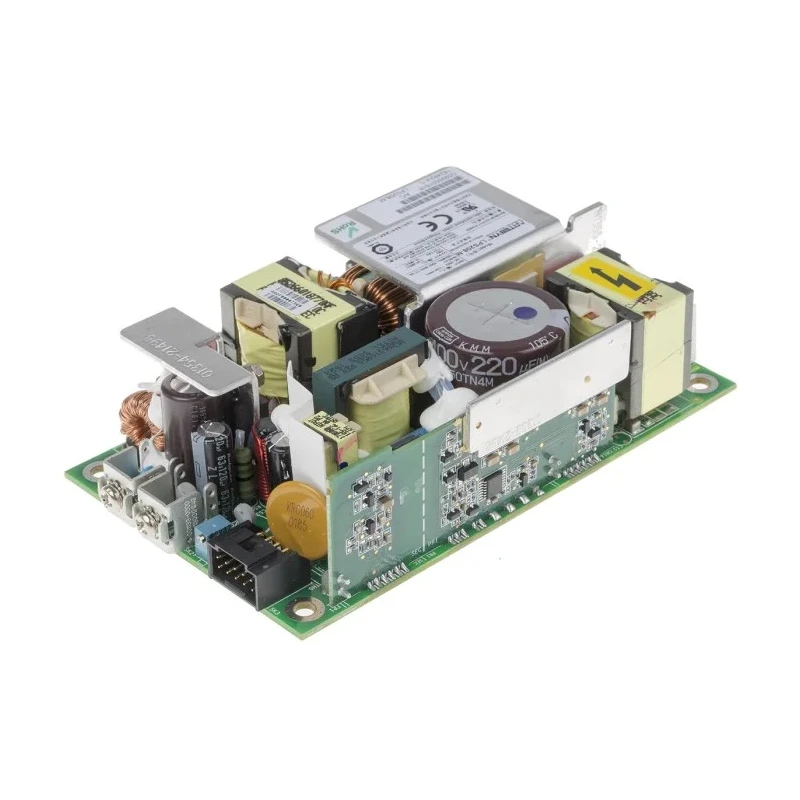

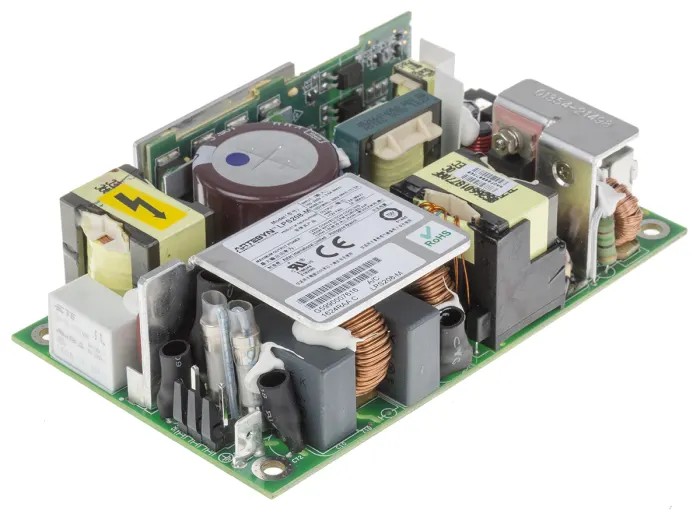

Artesyn LPS208-M Switching Power Supply 48V DC 125W Universal Input Convection Cooling LPS200-M Series

Artesyn LPS208-M Switching Power Supply is a high-performance power supply unit designed for industrial and electronic applications requiring reliable 48V DC output at 125W power rating. The universal input range supports voltages from 90V DC to 264V AC, allowing operation worldwide with active power factor correction to improve energy efficiency. Its chassis mount configuration fits within a compact 3x5 inch footprint with dimensions measuring 127mm length, 76.2mm width, and 33.6mm depth, making it suitable for 1U height applications.

This power supply unit delivers convection cooled operation at 125W and can be forced air cooled up to 250W with a 30CFM fan, facilitated by an isolated 12V fan output included. The product integrates Class B EMI filtering to minimize electrical interference and features low power logic control for stable output regulation. Overload, overvoltage, and thermal overload protections are built in to protect both the power supply and connected load from damage.

The Artesyn LPS208-M complies with key safety standards including UL 60950 and 60601-1, with certifications from recognized bodies such as TUV, UL, and CB. Its high efficiency (86%) and miniature size provide a high power density ideal for medical, industrial, and information technology equipment. The unit supports a single output providing 5.2A maximum current at 48V DC output voltage, with an operating temperature range from 0°C to 50°C.

With a robust mean time between failures (MTBF) demonstrated at 550,000 hours, this switching power supply is designed to provide dependable service in demanding environments. Manufactured in the Philippines, it fits into modern industrial, laboratory, manufacturing, and commercial power supply applications requiring a reliable centralized DC source. The LPS208-M is part of the LPS200-M series, renowned for compact size and versatility across applications needing universal input power supplies.

Maximum output voltage 48V DC with single output configuration. Universal input range supports 90V DC to 264V AC with active power factor correction. 125W convection cooled power with 250W forced air cooling capability. Compact chassis mount design measuring 127mm x 76.2mm x 33.6mm.

Integrated protections including overload, overvoltage, and thermal overload protection. Isolated 12V fan output and Class B EMI filter for low noise operation. Operating temperature range 0°C to 50°C suitable for industrial environments.

Certified to UL 60950 and 60601-1 standards with TUV, UL, and CB approvals. High efficiency rating of 86% and long service life with 550,000 hours MTBF. Manufactured in Philippines, suitable for industrial, medical, and IT equipment.
