Nexperia Analogue Switch 4 CMOS Quad SPST 14-Pin TSSOP 2-10V 74HC4066PW,118

Free Delivery in India | Lowest Global Shipping Charges

Nexperia Analogue Switch 4 CMOS Quad SPST 14-Pin TSSOP 2-10V 74HC4066PW,118

Name: Nexperia Analogue Switch 4 CMOS Quad SPST 14-Pin TSSOP 2-10V 74HC4066PW,118
Brand: Nexperia
SKU: 95687
Price: 0.25 USD
Availability: InStock



Category Multiplexer & Demultiplexer ICs Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	0.95mm
Length	5.1mm
Model	74HC4066PW,118
Width	4.5mm
Mount Type	Surface
Output type	CMOS
Series	74HC4066
Configuration	Quad SPST
Maximum Operating Temperature	125°C
Package Type	TSSOP
Minimum Operating Temperature	-40°C
ESD Protection	HBM JESD22-A114F exceeds 2000 V, MM JESD22-A115-A exceeds 200 V
Standards/Approvals	RoHS
Pin Count	14
Number of Elements per Chip	4
Maximum Supply Voltage	10V
Logic Family	CMOS
Minimum Supply Voltage	2V
Maximum On State Resistance	142Ω
Input levels nE inputs	For 74HC4066: CMOS level, For 74HCT4066: TTL level

Key Features

The device includes 4 independent analogue switches with CMOS logic family.
Low ON state resistance for efficient signal transmission.
Surface mount type with compact TSSOP 14-pin packaging.
Wide operating temperature range from -40°C to 125°C.
Provides ESD protection exceeding 2000 V (HBM) and 200 V (MM).
Each switch has two input/output terminals and an active HIGH enable input.
RoHS compliant component for environmentally conscious designs.
Compatible with CMOS input levels and TTL level for 74HCT4066 variant.

Product Description

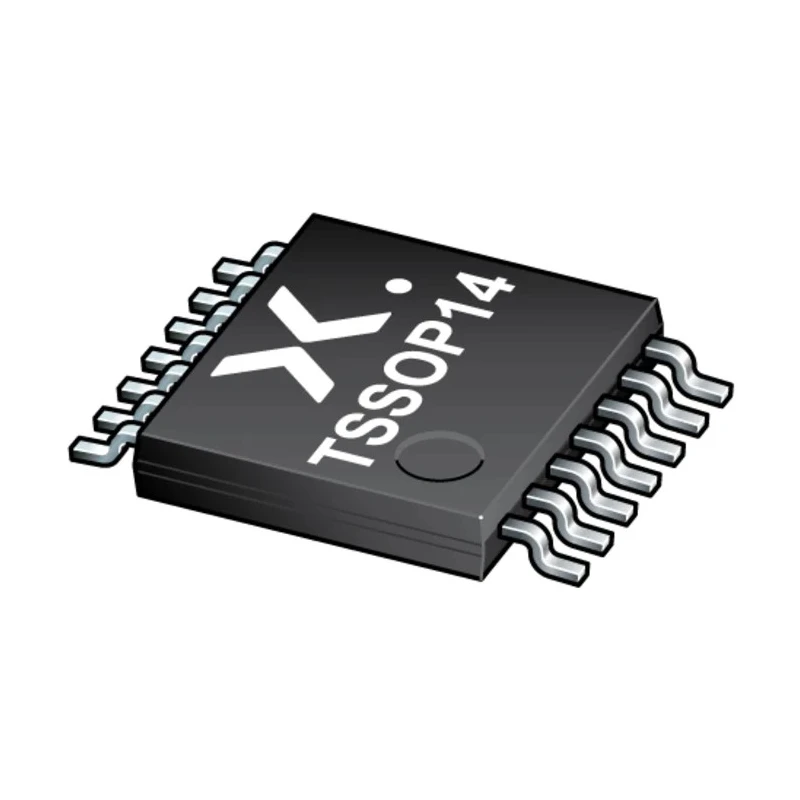

Nexperia 74HC4066PW,118 analogue switch is a quad single pole single throw device based on CMOS technology designed for efficient electronic signal switching. Its surface mount 14-pin TSSOP package measures 5.1 mm in length, 4.5 mm in width, and 0.95 mm in height, making it suitable for compact PCB layouts.

This switch operates within a voltage range of 2 V minimum to 10 V maximum, supporting robust performance across various industrial, electronic, and communication applications. It is engineered to handle signals with low ON resistance, providing typical values of 50 Ω at 4.5 V, 45 Ω at 6.0 V, and 35 Ω at 9.0 V supply voltage.

The product features internal clamp diodes that allow the use of current limiting resistors to interface voltages exceeding VCC. The ESD protection ratings comply with industry standards, exceeding 2000 V Human Body Model and 200 V Machine Model, ensuring reliability and durability in harsh environments.

With its wide operating temperature range from -40°C to 125°C, the 74HC4066PW,118 is apt for commercial, industrial, and automotive-grade electronics, barring automotive standard certification. The device supports CMOS input logic levels and has an active HIGH enable control pin for each switch.

RoHS compliance confirms its adherence to environmental regulations. This multiplexing component is ideal for use in switching analog or digital signals in applications such as data acquisition, signal routing, and communication systems.

The device includes 4 independent analogue switches with CMOS logic family. Low ON state resistance for efficient signal transmission. Surface mount type with compact TSSOP 14-pin packaging. Wide operating temperature range from -40°C to 125°C.

Provides ESD protection exceeding 2000 V (HBM) and 200 V (MM). Each switch has two input/output terminals and an active HIGH enable input. RoHS compliant component for environmentally conscious designs. Compatible with CMOS input levels and TTL level for 74HCT4066 variant.

Suitable for industrial, electronic manufacturing, research and development, and hobbyist PCB assembly projects. Explore more semiconductor and analogue switch products available at EnvMart to find complementary components and advanced switching devices.

Explore more products in our Multiplexer & Demultiplexer ICs category.
