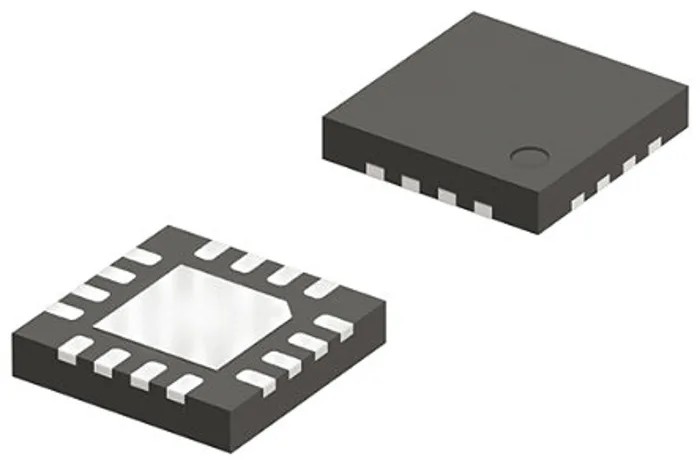

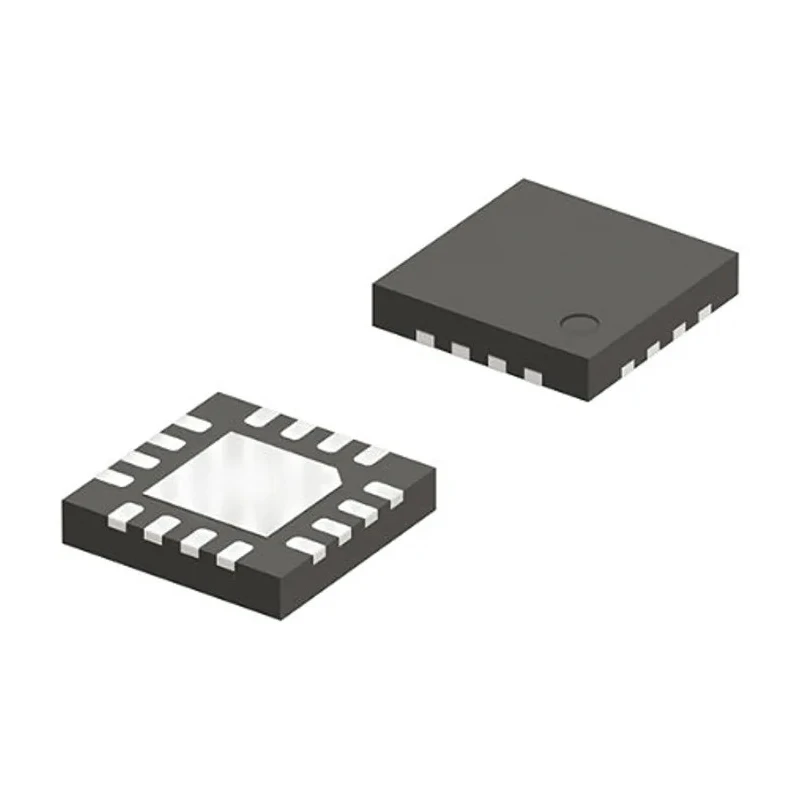

Vishay Analogue Switch 4 CMOS Quad SPST, 16-Pin QFN DG1412EEN-T1-GE4
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 0.9mm |
| Length | 4mm |
| Model | DG1412EEN-T1-GE4 |
| Width | 4mm |
| Mount Type | Surface |
| Output type | CMOS/TTL |
| Series | DG1412E |
| Configuration | Quad SPST |
| Maximum Operating Temperature | 125°C |
| Package Type | QFN |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 16 |
| Number of Elements per Chip | 4 |
| Maximum Supply Voltage | 24V |
| Logic Family | CMOS |
| Minimum Supply Voltage | 4.5V |
| Maximum On State Resistance | 4.7Ω |
Key Features
- The device supports single and dual power supply operations.
- It features low on-state resistance of 4.7 ohms for excellent signal integrity.
- Operating voltage range is from 4.5V to 24V with TTL/CMOS logic compatibility.
- Operating temperature range is -40°C to 125°C, ensuring reliable performance in harsh conditions.
- Package dimensions are compact at 4mm x 4mm with 0.9mm height.
- Low charge injection and low power dissipation enhance signal quality and efficiency.
- RoHS compliant ensuring environmental and regulatory adherence.
- Ideal for electronic circuit multiplexing and switching applications in industrial and communications equipment.
Product Description
Vishay DG1412EEN-T1-GE4 analogue switch is a 4 CMOS quad single-pole single-throw (SPST) device encapsulated in a 16-pin QFN surface mount package. It operates with a supply voltage range from 4.5V to 24V and supports both single and dual supply operations without requiring a VL logic supply. Designed on advanced CMOS technology, it provides a low on-state resistance of 4.7 ohms, ensuring excellent linearity and minimal signal distortion, which is critical for analogue switching tasks in electronic circuits.
The device features a compact footprint of 4mm length, 4mm width, and 0.9mm height, making it suitable for space-constrained applications. Its wide operating temperature range from -40°C to 125°C ensures robustness in industrial environments and harsh conditions. The DG1412EEN-T1-GE4 includes low charge injection and low power dissipation, minimizing parasitic capacitances and enhancing the overall efficiency of the system. It is compliant with RoHS directives, aligning with environmental standards.
This analogue switch supports 0.8V to 2V logic thresholds compatible with both TTL and CMOS logic levels. Applications include multiplexing, demultiplexing, and signal routing in communication equipment, industrial automation, and instrumentation systems.
Supports single and dual supply operation. Integrated VL supply for simplified logic interfacing. Low parasitic capacitance for improved signal integrity. Rail-to-rail signal handling with minimal insertion loss. Break-before-make switching reduces signal glitches.
Low distortion operation over full signal range. Compact 16-pin QFN surface mount package. Operating temperature range: -40°C to 125°C. RoHS compliant for environmental safety.
This product is part of the Vishay DG1412E series known for precision analogue switching performance. It is ideally suited for use in industrial automation, communication systems, laboratory instruments, and any application requiring high-quality analogue signal switching and multiplexing.
Explore more semiconductor components in the Multiplexer & Demultiplexer ICs category on EnvMart for comprehensive electronic solutions.
Explore more products in our Multiplexer & Demultiplexer ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating voltage range is from 4.5V to 24V, supporting both single and dual supply operations.
The maximum on-state resistance is 4.7 ohms, which contributes to excellent signal integrity.
It comes in a 16-pin QFN package with dimensions of 4mm x 4mm and a height of 0.9mm.
This model is compatible with both TTL and CMOS logic levels, supporting logic thresholds from 0.8V to 2V.
The operating temperature range is from -40°C to 125°C, making it suitable for harsh environments.
It is suitable for multiplexing, demultiplexing, and signal routing in communication equipment and industrial automation.
Yes, it is RoHS compliant, ensuring adherence to environmental and regulatory standards.
The configuration is a quad single-pole single-throw (SPST) design, allowing for multiple switching operations.
This model has a pin count of 16, suitable for various electronic circuit applications.
Key features include low charge injection, low power dissipation, and rail-to-rail signal handling with minimal insertion loss.
The maximum supply voltage is 24V, allowing for a wide range of operational applications.
It utilizes break-before-make switching, which helps to minimize signal glitches during transitions.
