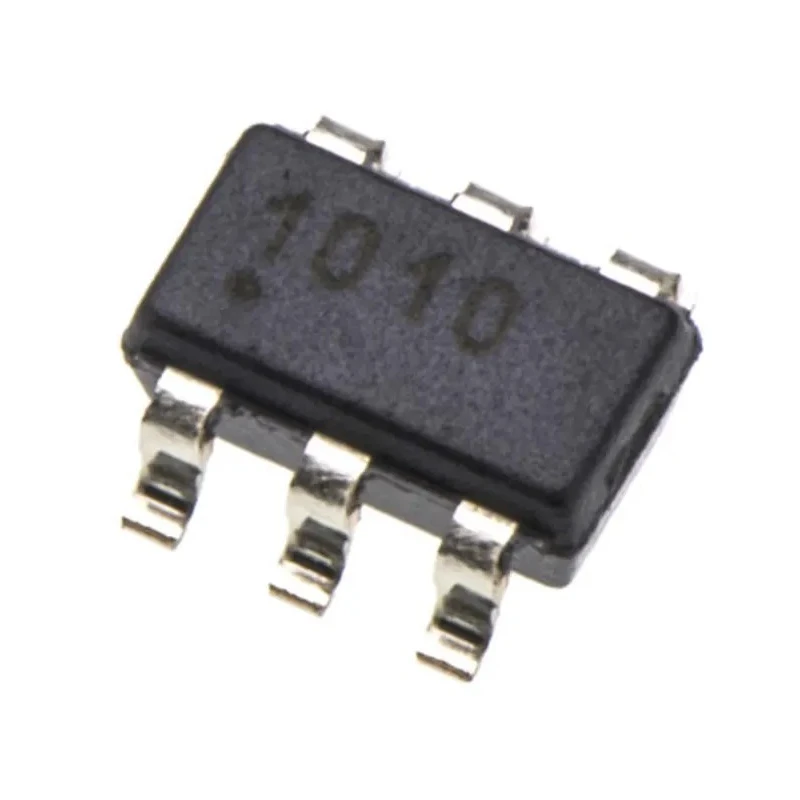

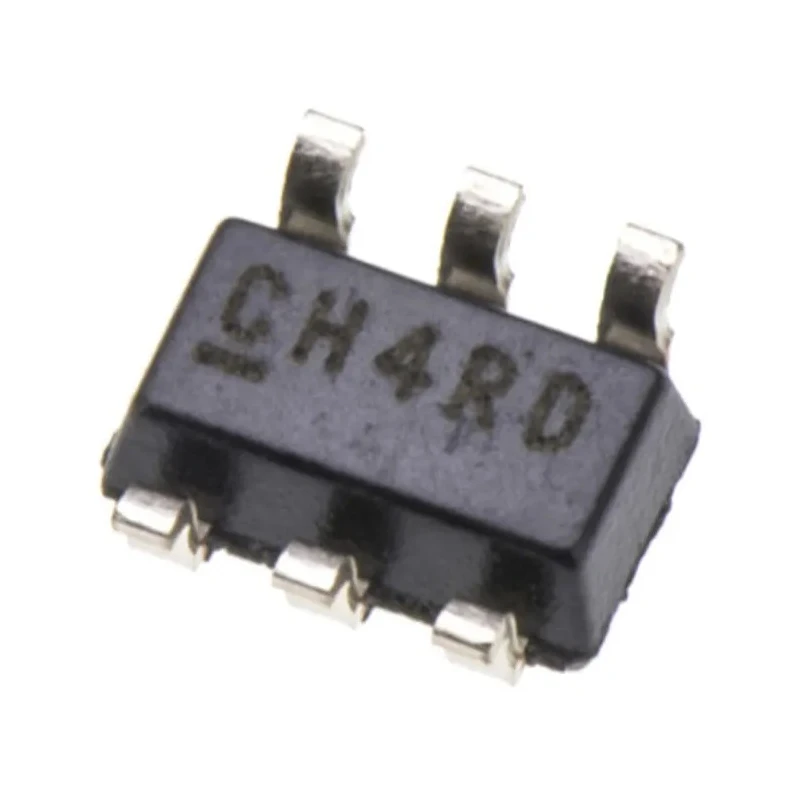

Renesas Electronics Analogue Switch Single SPDT CMOS, 6-Pin SOT-23 ISL43210IHZ-T7A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Renesas Electronics |
| Height | 1.3mm |
| Length | 3mm |
| Model | ISL43210IHZ-T7A |
| Width | 1.75mm |
| Mount Type | Surface |
| Output type | CMOS/TTL |
| Series | ISL43210 |
| Configuration | Single SPDT |
| Maximum Operating Temperature | 85°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 6 |
| Number of Elements per Chip | 1 |
| Maximum Supply Voltage | 12V |
| Logic Family | CMOS |
| Minimum Supply Voltage | 2.7V |
| Maximum On State Resistance | 40Ω |
Key Features
- CMOS logic family for low-power operation.
- Single SPDT configuration ideal for precision analogue signal routing.
- Operates from a supply voltage of 2.7V to 12V.
- 6-pin SOT-23 package for space-constrained designs.
- Maximum on-state resistance of 40Ω ensures efficient signal transmission.
- Wide operating temperature range from -40°C to 85°C.
- Surface mount design suitable for automated assembly and PCB integration.
- RoHS compliant for environmental responsibility.
Product Description
Renesas Electronics ISL43210IHZ-T7A is a high-quality single-pole, double-throw (SPDT) analogue switch designed to deliver efficient and precise signal routing in modern electronic applications. Featuring a compact 6-pin SOT-23 surface mount package, this CMOS-based switch is engineered for low-power consumption and versatility across a range of supply voltages, from 2.7V to 12V.
The ISL43210IHZ-T7A's CMOS/TTL-compatible output and its single SPDT configuration make it ideal for both analogue and digital switching needs. With a maximum on-state resistance of just 40Ω, it minimizes signal loss and maintains integrity in critical circuits. Its wide temperature tolerance, from -40°C to 85°C, ensures reliable performance in both laboratory and industrial environments.
Measuring just 3mm in length, 1.75mm in width, and 1.3mm in height, this SOT-23 package supports robust integration in space-limited designs. The switch is RoHS compliant, reflecting modern standards for environmental safety and sustainable manufacturing. The mount type supports surface placement, facilitating fast automated PCB assembly and improving production efficiency.
CMOS logic family offers low-power operation and noise immunity. Single SPDT analogue switch for flexible signal path selection. Designed for wide voltage operation (2.7V - 12V). Max 40Ω resistance reduces transmission losses.
Operates reliably in environments from -40°C to 85°C. Compact SOT-23 package dimensions (3mm x 1.75mm x 1.3mm). Suitable for industrial, laboratory, and commercial electronics designs. RoHS compliant for responsible material use.
This switch is an excellent choice for circuit designers, engineers, and manufacturers needing compact, reliable switching for audio, instrumentation, measurement, and consumer electronics projects. It is widely used in multiplexer and demultiplexer circuits, precision analogue routing, and sensor interface solutions.
Explore Renesas Electronics’ full range of semiconductor switching solutions in the Multiplexer & Demultiplexer ICs category for advanced integration and performance.
Explore more products in our Multiplexer & Demultiplexer ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates from a supply voltage of 2.7V to 12V.
The maximum on-state resistance is 40Ω, which helps minimize signal loss.
It operates reliably in a temperature range from -40°C to 85°C.
The package dimensions are 3mm in length, 1.75mm in width, and 1.3mm in height.
It features a CMOS/TTL-compatible output, suitable for both analogue and digital switching needs.
This switch has a pin count of 6.
It is designed for surface mount, facilitating automated assembly and PCB integration.
This model features a single pole, double throw (SPDT) configuration.
Yes, it is RoHS compliant, reflecting standards for environmental responsibility.
The ISL43210IHZ-T7A belongs to the CMOS logic family, designed for low-power operation.
It is suitable for applications in audio, instrumentation, measurement, and consumer electronics.
The country of origin for this model is India.
