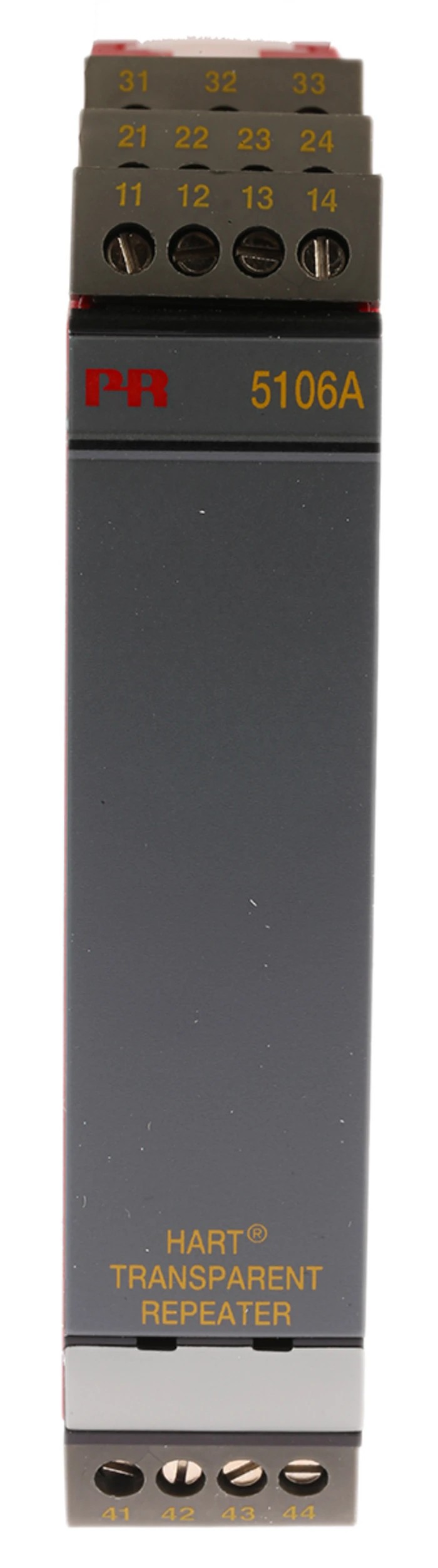

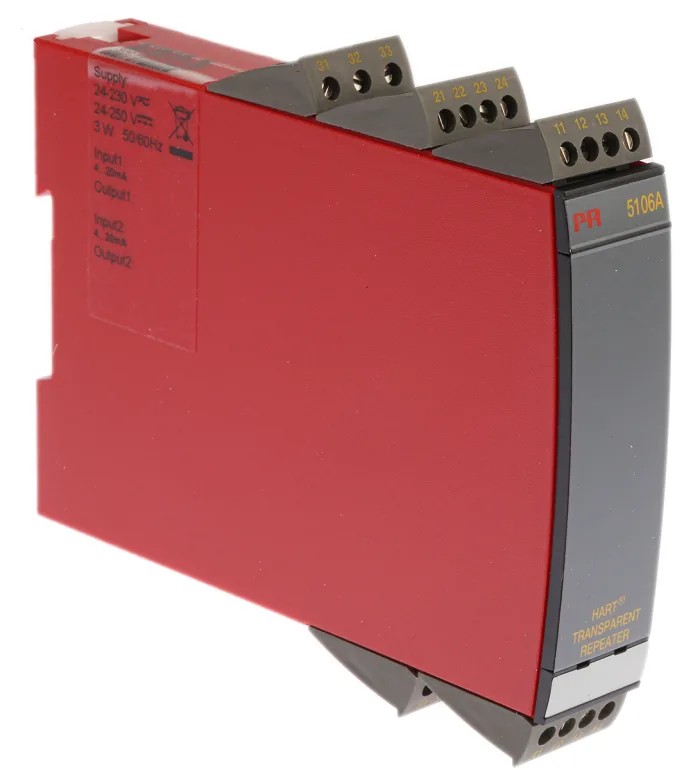

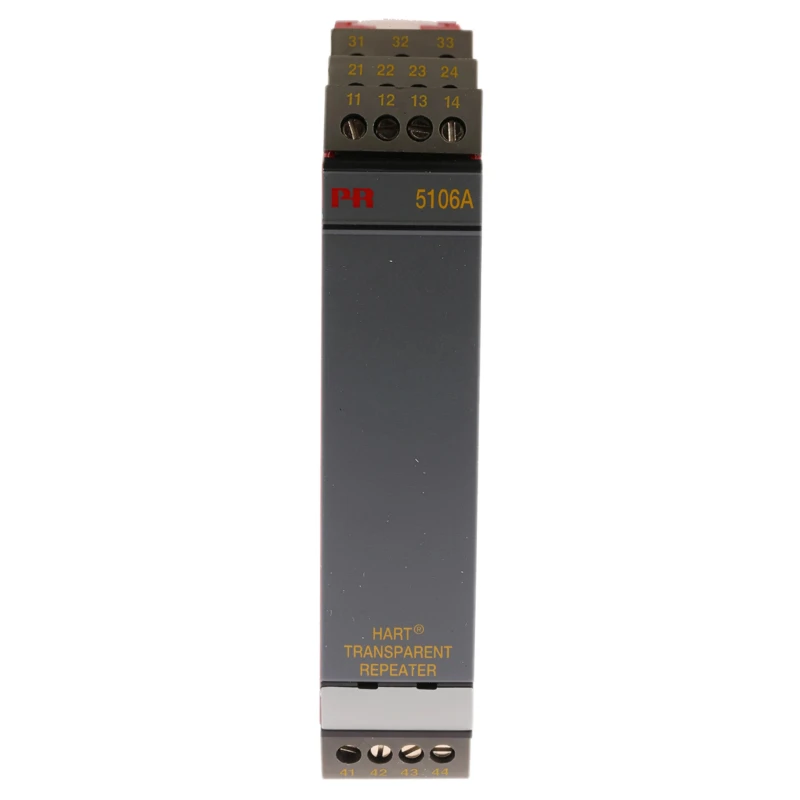

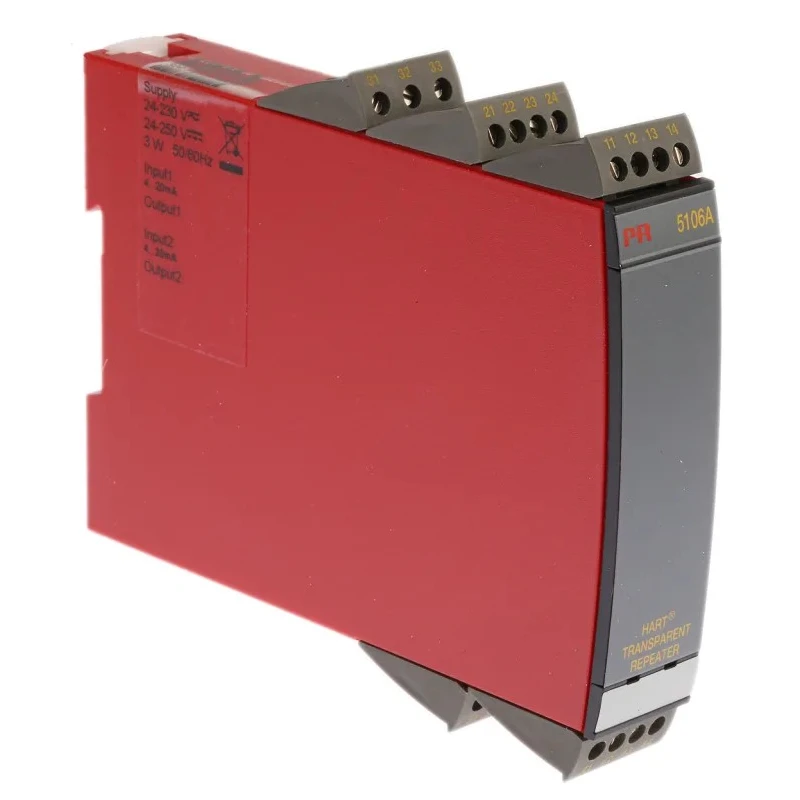

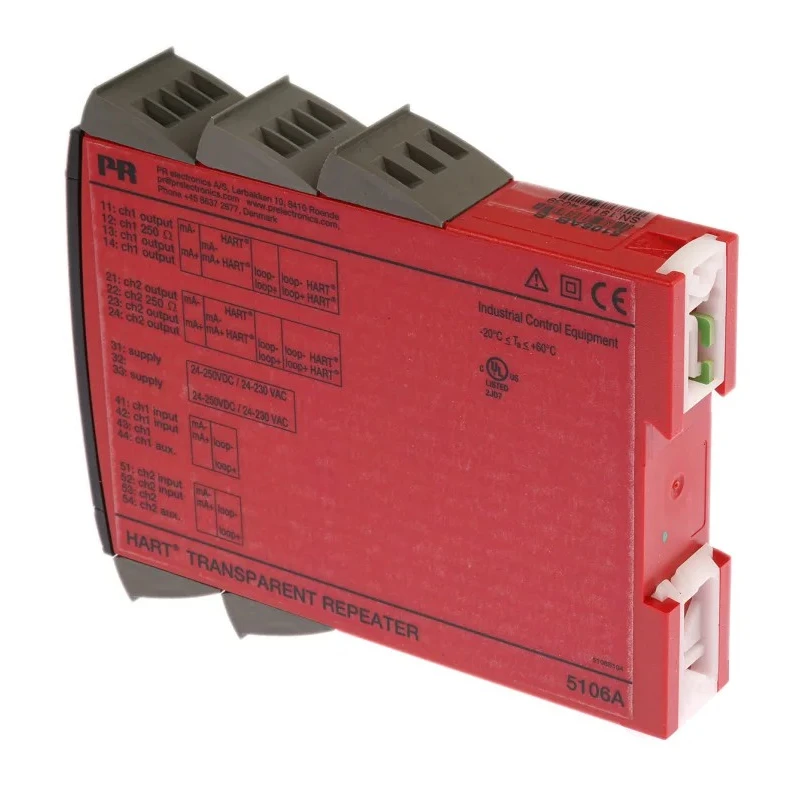

PR Electronics 5106A Series Transparent Repeater Current Input Output 4-20 mA Isolation 3.75kV AC DIN Rail Mount 5106AB2B

Free Delivery in India | Lowest Global Shipping Charges

PR Electronics 5106A Series Transparent Repeater Current Input Output 4-20 mA Isolation 3.75kV AC DIN Rail Mount 5106AB2B

Name: PR Electronics 5106A Series Transparent Repeater Current Input Output 4-20 mA Isolation 3.75kV AC DIN Rail Mount 5106AB2B
Brand: PR Electronics
SKU: 207514
Price: 738.28 USD
Availability: InStock



Category Signal Conditioners Brand PR Electronics Condition New

Specifications

Country of Origin	Denmark
Brand	PR Electronics
Model	5106AB2B
IP Rating	IP20
Mount Type	DIN Rail
Isolation	3.75kV ac
Series	5106A
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-20°C
Terminal type	Screw
Number Of Channels	2
Output Range	4 → 20 mA
Input Range	4 → 20 mA
Supply Voltage	21.6, 253, 19.2, 300V ac
Input Signal Type	Current
Signal Conditioner Type	HART Transparent Repeater

Key Features

Features galvanic isolation rated at 3.75 kV AC between input, output, and supply.
Accepts and outputs 4 to 20 mA current signals to interface with 2-wire transmitters.
Supports universal supply voltages including 21.6 V AC, 253 V AC, 19.2 V DC, and 300 V DC.
DIN rail mountable with screw terminal connections for easy installation.
Operates reliably in temperature ranges from -20°C to 60°C with an IP20 rating.
Includes HART transparent repeater capability for digital communication over current loops.
Complies with multiple international standards including LVD 2014/35/EU, EMC 2014/30/EU, EAC TR-CU 020/2011, UL 508, and C22.2 no. 14.
Compact design allows up to 84 channels per meter on a DIN rail for efficient use of space.

Product Description

PR Electronics 5106AB2B is a 2-channel HART transparent repeater signal conditioner providing accurate current input/output isolation and signal conditioning in industrial environments.

The device supports current signal ranges of 4 to 20 mA on both input and output, ideal for 2-wire transmitter installations within hazardous areas. It provides galvanic isolation rated at 3.75 kV AC between input, output, and power supply, ensuring signal integrity and operator safety.

Its universal supply voltage options cover 21.6 V AC, 253 V AC, 19.2 V DC, and 300 V DC, allowing flexible integration with various power systems. The screw terminal wiring and DIN rail mounting support straightforward installation in control cabinets.

Operating reliably within -20°C to 60°C and with an IP20 rating, this repeater suits a wide range of industrial automation and process control applications. The low response time of under 25 ms enhances real-time signal accuracy.

The unit's compact size permits up to 84 channels per meter on DIN rails, optimizing panel space. It conforms to international standards such as LVD 2014/35/EU, EMC 2014/30/EU, EAC TR-CU 020/2011, UL 508, and Canadian C22.2 no. 14, assuring quality and compliance.

Galvanic isolation of 3.75 kV AC between input, output, and supply. Current input/output range: 4 to 20 mA. Universal supply voltage: 21.6, 253 V AC and 19.2, 300 V DC. Mountable on DIN rail vertically or horizontally. Equipped with screw terminals for secure wiring.

Operating temperature from -20°C to 60°C with IP20 protection. Supports HART protocol for 2-wire transmitter communication. Compact and space-saving design with up to 84 channels per meter.

This robust transparent repeater is essential for industries requiring precise signal isolation and conditioning such as automation, manufacturing, process control, and hazardous area instrumentation. It ensures reliable data transmission and noise immunity in electrical signal lines.

EnvMart offers this reliable and versatile PR Electronics transparent repeater for professional electrical and industrial applications.

Explore more products in our Signal Conditioners category.
