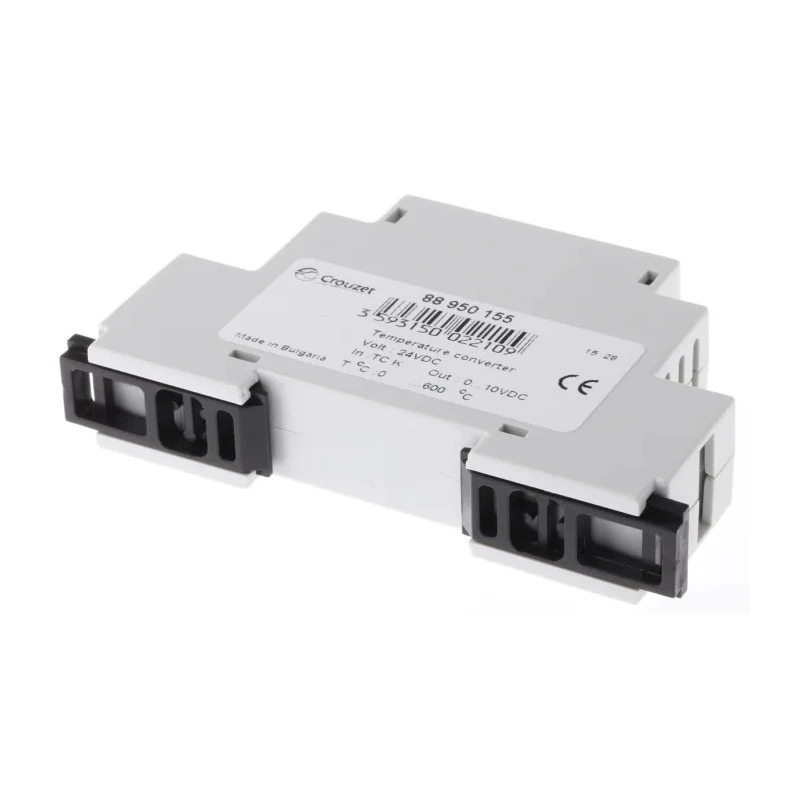

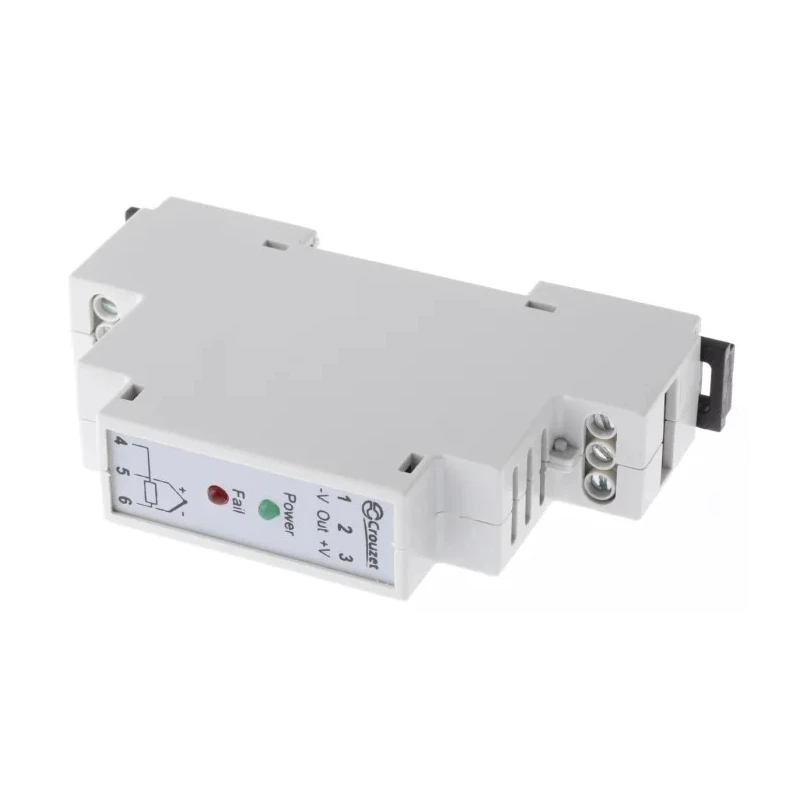

Crouzet Millenium 2 Plus Series Signal Conditioner Thermocouple Input Voltage Output 24V DC Supply 88950155
Specifications
| Country of Origin | Bulgaria |
|---|---|
| Voltage | Output, 24V dc Supply RS Stock No |
| Brand | Crouzet |
| Operating Temperature Range | -5 to +55°C |
| Model | 88950155 |
| IP Rating | IP20, IP40 |
| Mount Type | DIN Rail |
| Series | Millenium 2 Plus |
| Maximum Operating Temperature | 55°C |
| Inputs | voltage discrete on/off (PNP on dc supply versions) |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Output Range | 0 → 10 V dc |
| Input Range | 0 → 600 °C |
| Supply Voltage | 24V dc |
| Input Signal Type | Thermocouple |
| Standards/Approvals | IEC/EN 60529, CE |
| Output Signal Type | Voltage |
| Signal Conditioner Type | Converter |
| Program size 128 blocks, program memory | flash EEPROM, password protection |
| Outputs (isolated) | N/O volt free relay contacts rated at 8A, one changeover output contact per module |
| Dimensions for Standard, Level Control and Expandable Units | H 90mm x W 72mm (12 I/O)/W 125mm (20 I/O) x D 60mm |
Key Features
- The signal conditioner converts thermocouple inputs within 0 to 600 °C range.
- Outputs a 0 to 10 V DC voltage signal for precise measurement and control.
- Equipped with screw terminals and mounts on a DIN rail for convenient installation.
- Operates reliably between -5°C and 55°C with IP20 and IP40 protection ratings.
- Constructed with a compact 17.5 mm modular housing suitable for building automation and machine control.
- Complies with IEC/EN 60529 and CE standards ensuring safety and quality.
- Features a durable design originating from Bulgaria, built for industrial and HVAC applications.
- Includes pre-programmed functions such as counting, timing, and PID control for versatile automation uses.
Product Description
Crouzet 88950155 Millenium 2 Plus Series Signal Conditioner is a high-precision converter for thermocouple inputs providing voltage outputs and powered by a 24V DC supply. Designed to automate building and smaller machine applications, this device supports input ranges up to 600 °C and outputs a corresponding 0 to 10 V DC analogue signal. It is housed in a compact, modular 17.5 mm DIN rail mount enclosure optimized for space-saving installation.
The unit features screw terminals for secure wiring and is rated IP20 and IP40, making it suitable for various industrial environments with operating temperatures ranging from -5°C to 55°C. Certification to IEC/EN 60529 and CE standards ensures compliance with stringent quality and safety regulations, enhancing reliability in demanding applications.
The Millenium 2 Plus Series supports a variety of pre-programmed standard functions including counting, timing, comparisons, multiplexing, time-based programming, and PID control. These capabilities make it adaptable for HVAC systems, water treatment controls, manufacturing automation, and other industrial uses. Additionally, programming software and a serial programming cable facilitate customization and parameter adjustment.
The signal conditioner is suitable for diverse industrial and laboratory settings requiring accurate signal conversion and conditioning. It is an excellent choice for building automation, environmental controls, and machine automation tasks requiring precise temperature measurement translation to voltage signals.
The device delivers high reliability and accuracy for thermocouple temperature monitoring. Its modular construction supports integration into complex control systems. Designed for long-term use with flash EEPROM memory and battery-backed data storage.
Supports front panel control and display for user-friendly operation. Offers versatile application kits for water level, HVAC, and industrial starter configurations. Explore Crouzet products and the Millenium 2 Plus line in the EnvMart platform to discover advanced Signal Conditioners ideal for industrial automation and control applications.
