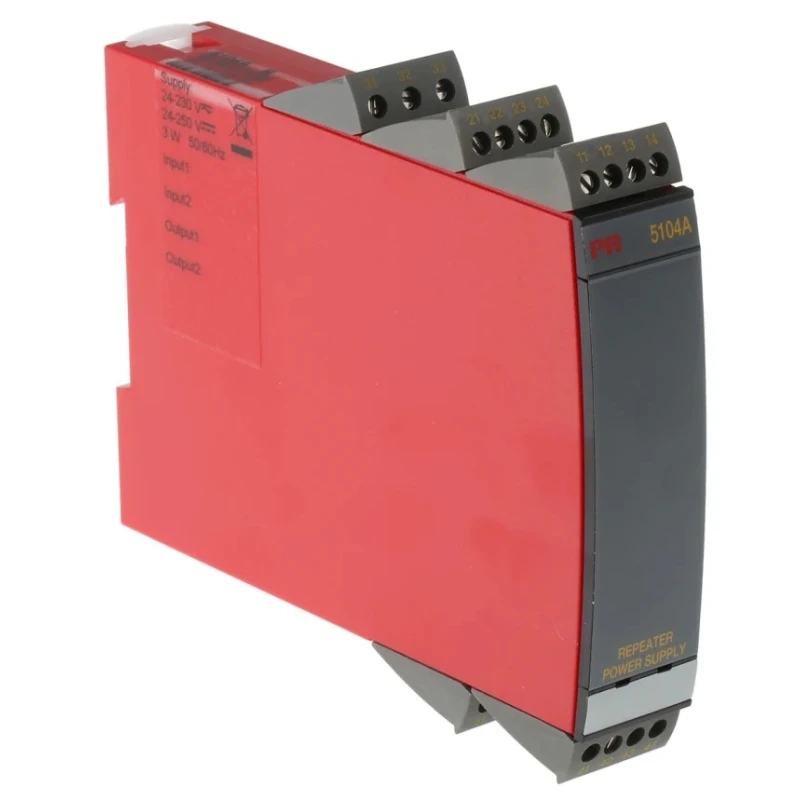

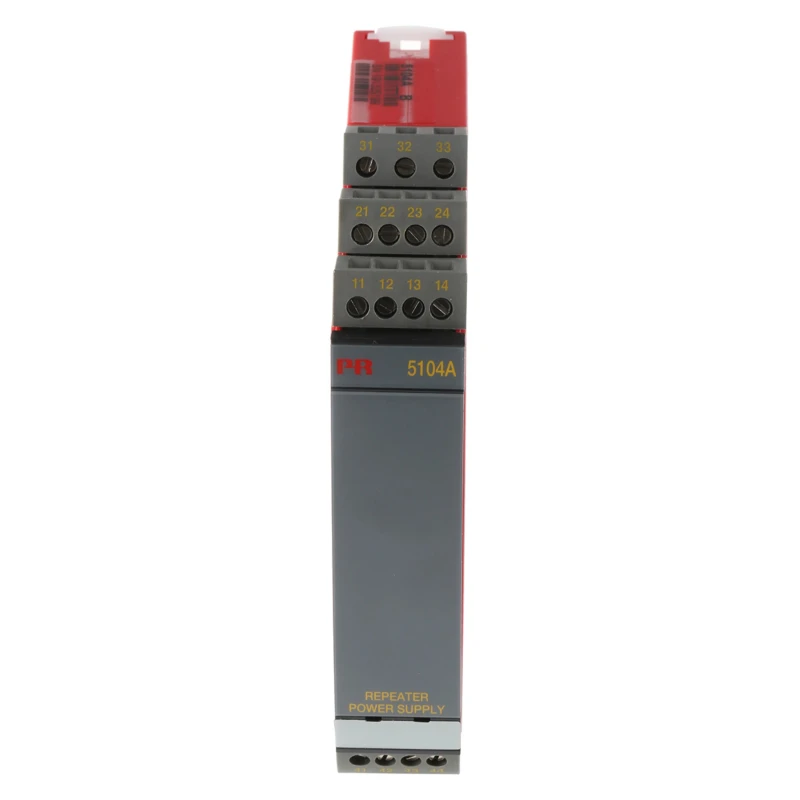

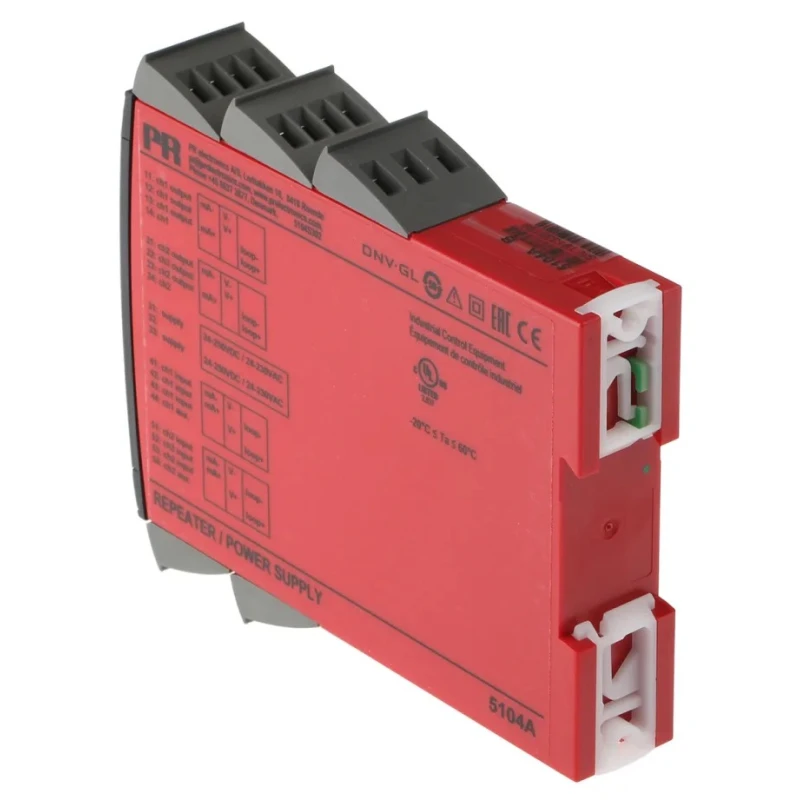

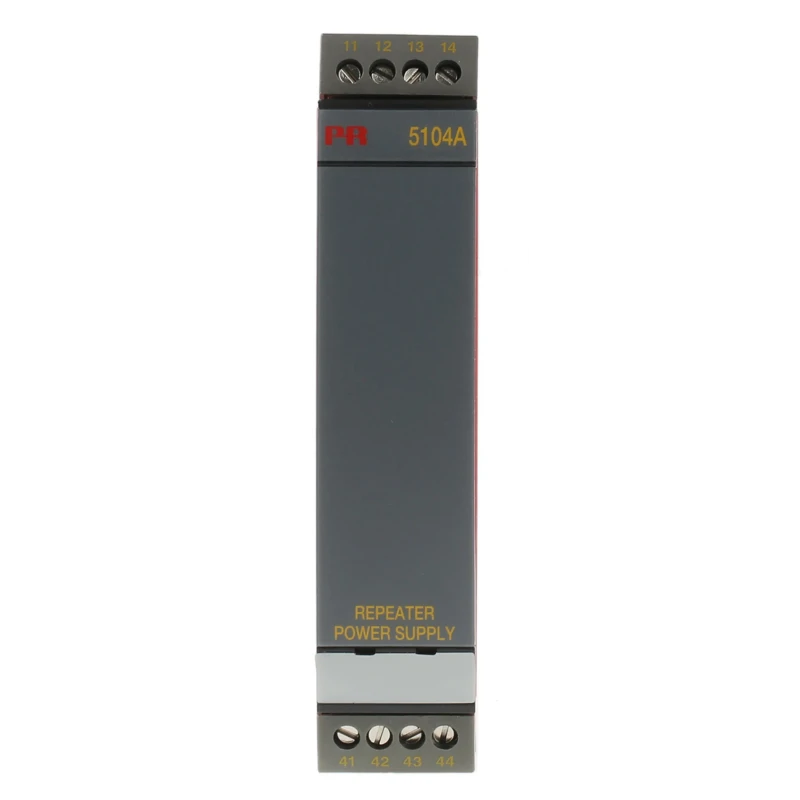

PR Electronics 2 Channel Galvanic Barrier Analogue DIN Rail Mount 21.6-300V AC 5104AB

PR Electronics 5104AB 2 Channel Galvanic Barrier Analogue signal isolator delivers precise and reliable galvanic isolation for industrial automation and electrical applications. Designed for DIN Rail mounting, it offers versatile installation options both vertically and horizontally.

This galvanic barrier module supports 2-wire transmitters and provides a universal supply voltage compatibility from 19.2 V AC up to 300 V AC, accommodating a varied range of power requirements. The device ensures 3.75 kV AC galvanic isolation between input, output, and supply circuits, safeguarding sensitive electronics and preventing ground loops.

With a fast response time of less than 25 ms, the 5104AB is suitable for timely analogue signal processing in critical control environments. It features 20 factory-calibrated measurement ranges selectable through internal DIP switches, eliminating the need for cumbersome recalibration.

The screw terminal design ensures secure and reliable connections, and the device operates efficiently within a temperature range of -20°C to 60°C with an IP20 protection level. Compact DIN Rail mounting supports high-density installations, allowing up to 84 channels per meter, optimizing panel space in industrial control systems.

Built to meet a comprehensive suite of standards and certifications such as IEC 61140, DNV-GL, UL 508/C22.2 no. 14, and TR-CU 020/2011, the PR Electronics 5104AB provides confidence in safety and performance for demanding industrial environments.

This analogue galvanic barrier is essential for applications in electrical signal conditioning, automation, process controls, and hazardous area isolation in industrial plants, water treatment facilities, and manufacturing systems.

Features galvanic isolation with 3.75 kV AC isolation between input, output, and supply. Supports analogue signal transmission with a low response time under 25 milliseconds. Offers 20 factory-calibrated measurement ranges selectable via DIP switches without recalibration.

Compatible with active current/voltage transmitter outputs or 2-wire transmitter configurations. Robust operation within temperature range -20°C to 60°C and IP20 protection rating. Screw terminal connections ensure secure wiring and installation.

Universal supply voltage ranging from 19.2 V AC to 300 V AC enables wide application adaptability. Mounts vertically or horizontally on DIN rails, allowing up to 84 channels per meter installation. Meets multiple safety and performance standards including IEC 61140, DNV-GL, UL 508, and more.

Designed and manufactured in Denmark ensuring high-quality industrial durability. Explore the full range of PR Electronics signal conditioning and isolation devices on EnvMart for all industrial, laboratory, and automation needs.
