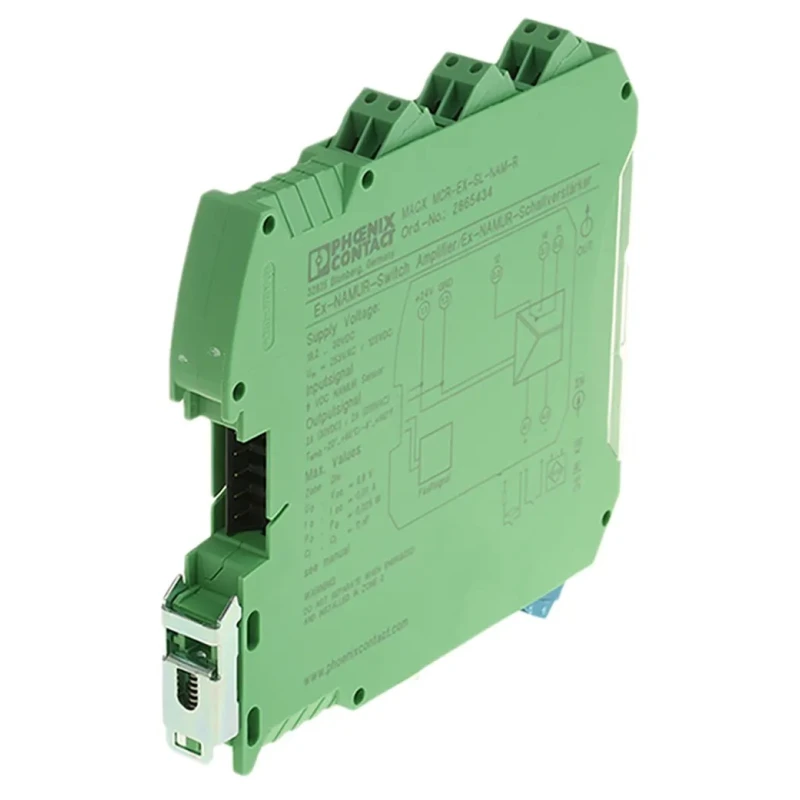

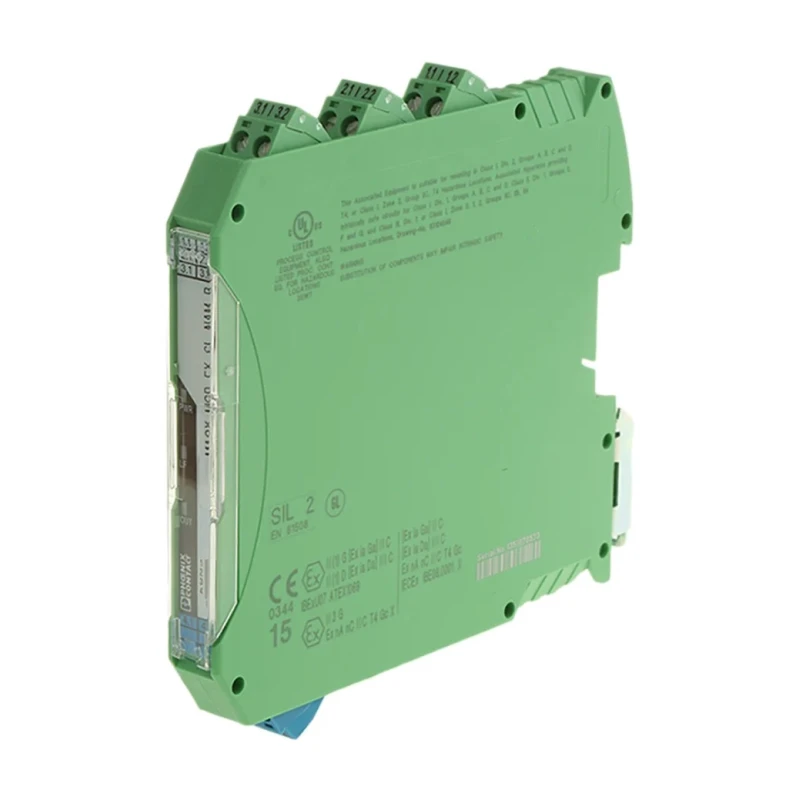

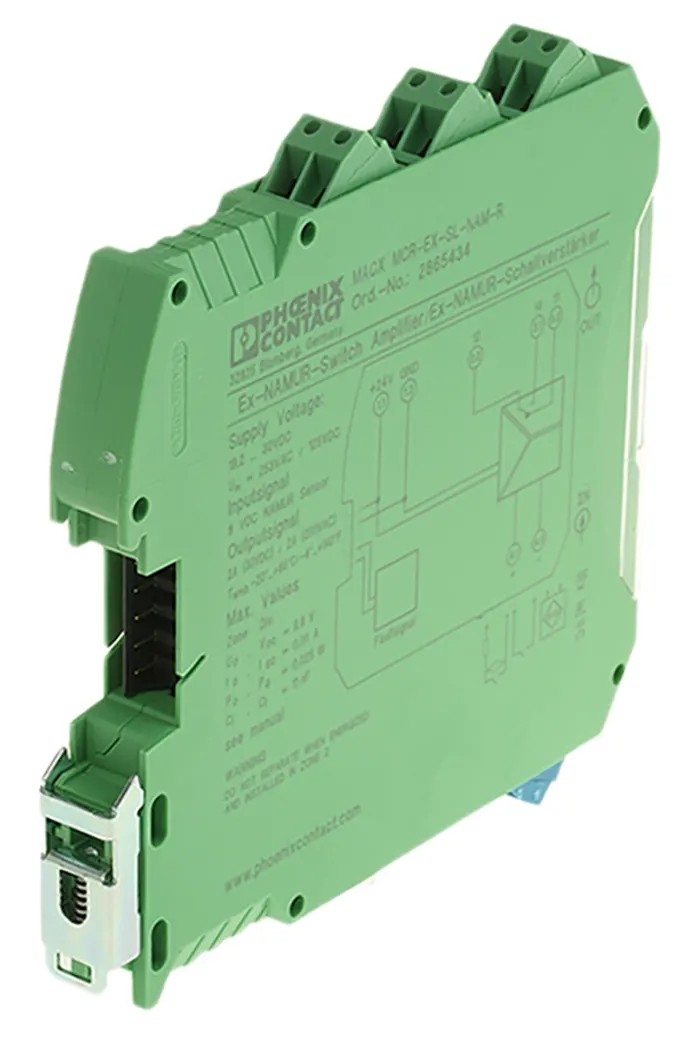

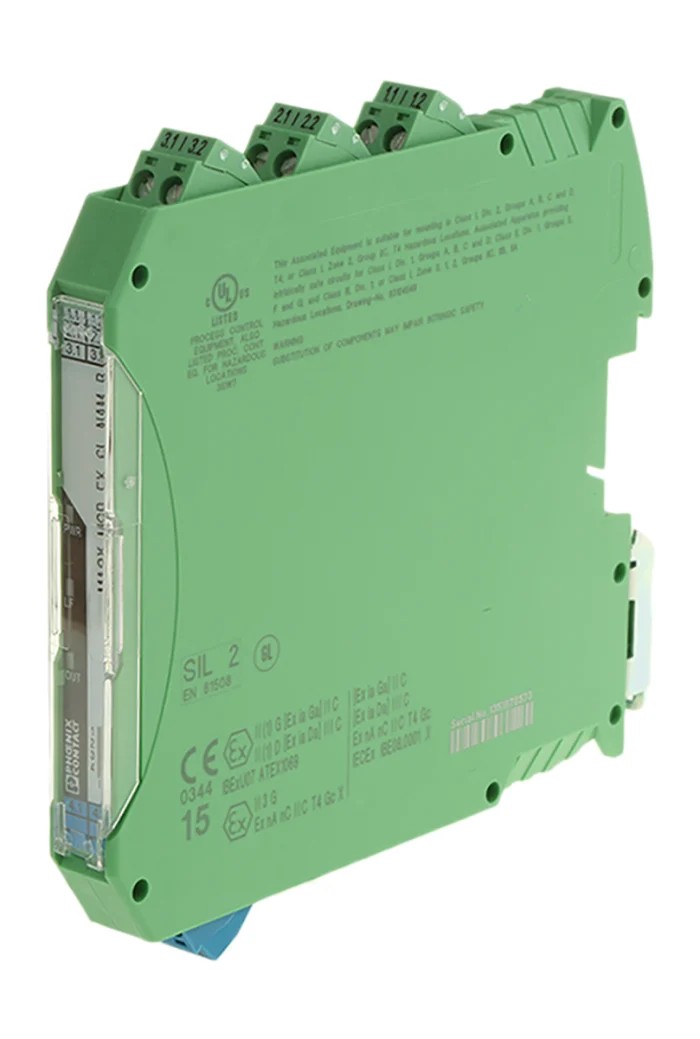

Phoenix Contact Signal Conditioner 1-Channel DIN Rail Mount ATEX Certified 19.2-30V DC 2865434
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Phoenix Contact |
| Model | 2865434 |
| IP Rating | IP20 |
| Mount Type | DIN Rail |
| Series | 3RS7006 |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Terminal type | Screw |
| Number Of Channels | 1 |
| Supply Voltage | 19.2, 30V dc |
| Hazardous Area Certification | ATEX |
Key Features
- Compact dimensions of 99 x 12.5 x 114.5 mm enable efficient use of space in control panels.
- Supports proximity sensors and switches with galvanic isolation and relay output (PDT contact).
- Wide operating temperature range from -20°C to +60°C suitable for demanding environmental conditions.
- Flame-retardant polyamide housing provides enhanced safety during fire incidents.
- IP20 rating ensures protection against electric shocks through touchproof design.
- Three-way isolation with SIL 2 safety integrity level and line fault detection enhances reliable operation.
- Mounts securely on DIN rails via M3 screw threads for industrial installation stability.
- Meets multiple international standards including EN 60947-5-6, EN 60079-15, IEC/EN 60079-11, UL 61010, and others.
Product Description
Phoenix Contact 2865434 is a 1-channel signal conditioner designed for DIN rail mounting and certified for use in hazardous ATEX zones. With a supply voltage of 19.2 to 30V DC, this unit safely operates proximity sensors and switches by providing galvanic isolation through a relay output (PDT contact).
The device features compact dimensions of 99 mm in height, 12.5 mm in width, and 114.5 mm in depth, making it ideal for integration into industrial control systems where space is limited. The polyamide housing is flame-retardant to enhance safety in the event of fire, and the IP20 rating provides protection against accidental electric shock by ensuring the unit is touchproof.
Operational reliability is supported by multiple LED indicators: yellow indicates switching status, green shows the presence of supply voltage, and red signals malfunction, facilitating quick diagnostics to maximize system uptime. The device’s wide operating temperature range from -20°C to +60°C allows it to perform reliably in harsh environments.
The signal conditioner includes line fault detection (LFD), three-way galvanic isolation, and meets Safety Integrity Level SIL 2 for functional safety. It complies with a broad set of international standards such as EN 60947-5-6, EN 60079-15, IEC/EN 60079-11, GB/T3836 series, UL 61010, EN 61326, and DNV GL certifications, ensuring suitability across diverse industrial and laboratory applications.
The unit mounts securely on standard DIN rails using M3 threads, enabling straightforward and reliable installation within automation equipment racks. Its accurate and dependable galvanic isolation protects control systems and instrumentation in potentially explosive atmospheres commonly found in manufacturing, water treatment, chemical plants, and other industrial sectors.
In summary, the Phoenix Contact 2865434 Signal Conditioner offers robust, ATEX-certified signal isolation and conditioning for 1-channel applications with clear diagnostics, durable construction, and compliance with extensive regulatory standards, making it an essential component in safety-critical control and automation installations.
Compact size with secure DIN rail mounting. Multiple LED indicators for operational status. Wide temperature range for harsh environments. Flame-retardant housing and IP20 touchproof rating. Three-way isolation and SIL 2 certified for safety.
Compatible with proximity sensors and switches. Meets international industrial and hazardous area certifications. Designed for demanding industrial, laboratory, and automation environments. Explore more signal conditioning and isolation solutions in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The supply voltage range for this model is 19.2 to 30V DC.
This unit has compact dimensions of 99 mm in height, 12.5 mm in width, and 114.5 mm in depth.
The operating temperature range is from -20°C to +60°C, making it suitable for harsh environments.
It mounts securely on DIN rails using M3 screw threads, ensuring stability in industrial installations.
This model is ATEX certified, indicating it is suitable for use in hazardous areas.
The Phoenix Contact 2865434 supports one channel for signal conditioning.
It has an IP20 rating, providing protection against accidental electric shock through a touchproof design.
This unit includes multiple LED indicators for operational status, such as yellow for switching status, green for supply voltage presence, and red for malfunction.
It uses screw terminals for connections, facilitating secure wiring.
It meets Safety Integrity Level SIL 2, ensuring reliable operation in safety-critical applications.
It complies with multiple international standards including EN 60947-5-6, EN 60079-15, and UL 61010, among others.
It is compatible with proximity sensors and switches, providing galvanic isolation for safe operation.
