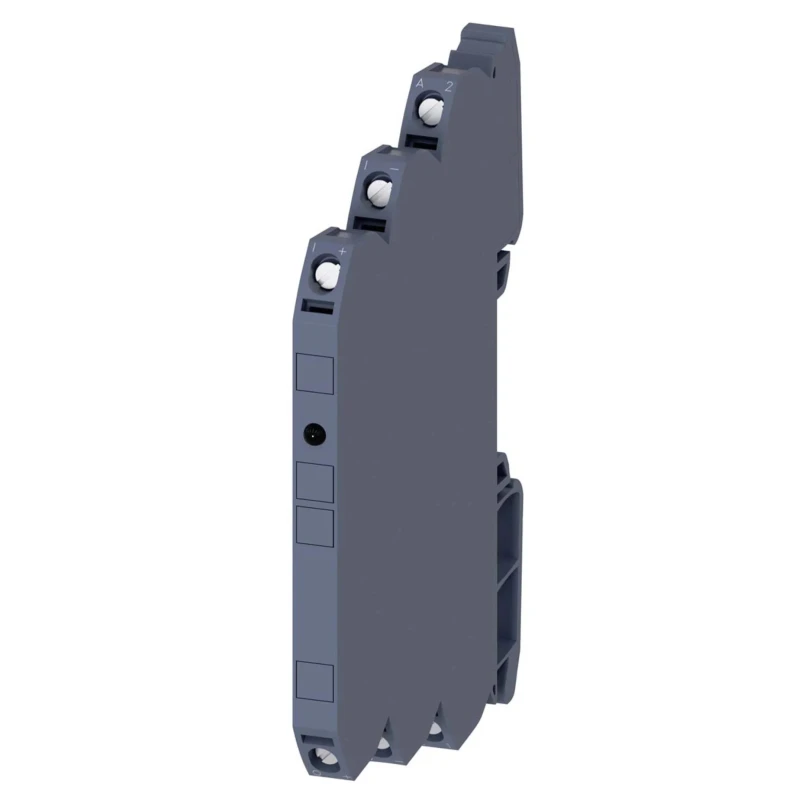

Siemens 3RS7000 Series Signal Conditioner Voltage Input Voltage Output 24V ac/dc Supply 3RS7000-1AE00

Siemens 3RS7000-1AE00 Signal Conditioner is a high-quality industrial device designed for processing analogue voltage signals both on the input and output sides. It operates with a 24V ac/dc power supply and is intended for seamless integration into automation and control systems where signal conditioning is critical.

The signal conditioner converts analogue electrical signals to precise voltage output within a range of 0 to 10 V dc, supporting enhanced signal integrity over long distances. Thanks to its galvanic separation capability, it prevents interference caused by differing power supplies and reduces the impact of potential differences and wiring resistance in industrial environments.

Its robust construction includes screw terminals and a snap-on mount type, allowing straightforward installation on standard DIN rails within control cabinets. With an IP20 rating, it is designed to protect against access to hazardous parts and large solid objects, making it suitable for typical electrical control panel environments.

The unit is compliant with a comprehensive range of international standards such as IEC 60068-2-6, IEC 60947-1, and DIN EN 81346-2, ensuring reliability and safety. Operating temperature spans from -25°C to 60°C, allowing usage in various industrial conditions without performance degradation.

This Signal Conditioner also features short circuit protection on outputs and is safeguarded against wiring errors up to 30 V dc, significantly enhancing operational safety. Its narrow and compact design preserves valuable space in flat control boxes and equipment racks with limited clearance.

Typical applications include industrial automation, manufacturing process monitoring, HVAC control systems, and laboratory instrumentation where precise voltage signal transmission is required.

Designed for voltage input and voltage output with an input range of 0 to 10 V dc. Equipped with a 24V ac/dc supply voltage compatible with industrial control systems. Features a compact snap-on mount design for easy installation on mounting rails.

Includes screw type terminals and an IP20 rating for indoor use and protection against solid objects. Operates reliably within a temperature range of -25 to 60°C for industrial environments. Complies with multiple industrial standards including IEC and DIN certifications.

Ensures galvanic isolation to prevent mutual interference and signal degradation. Outputs are short circuit protected and safe up to 30 V dc, enhancing operational safety. Ideal for long-distance analogue signal transmission with resistance to electromagnetic disturbances.
