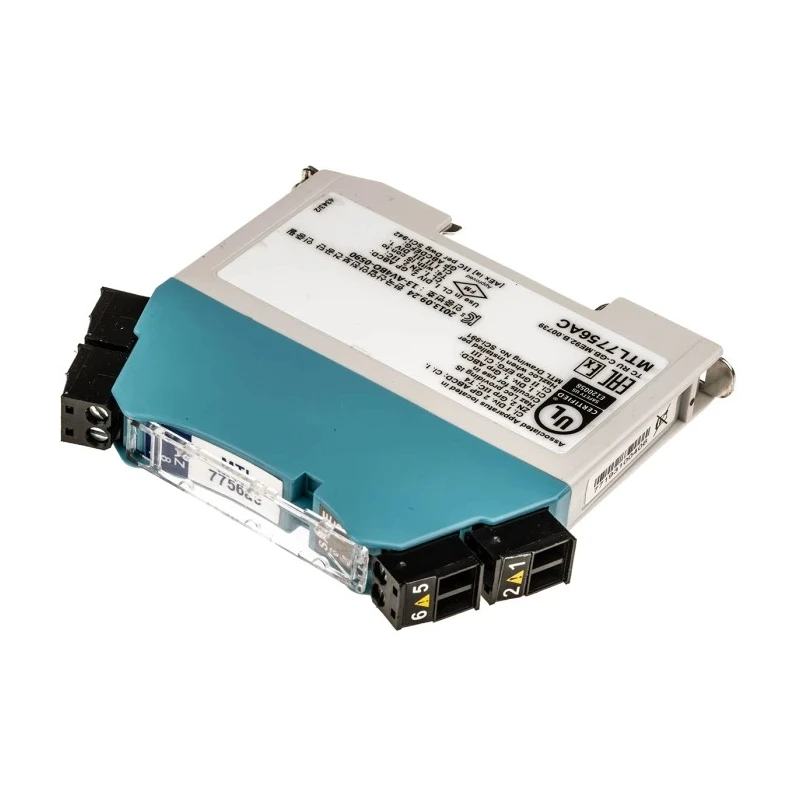

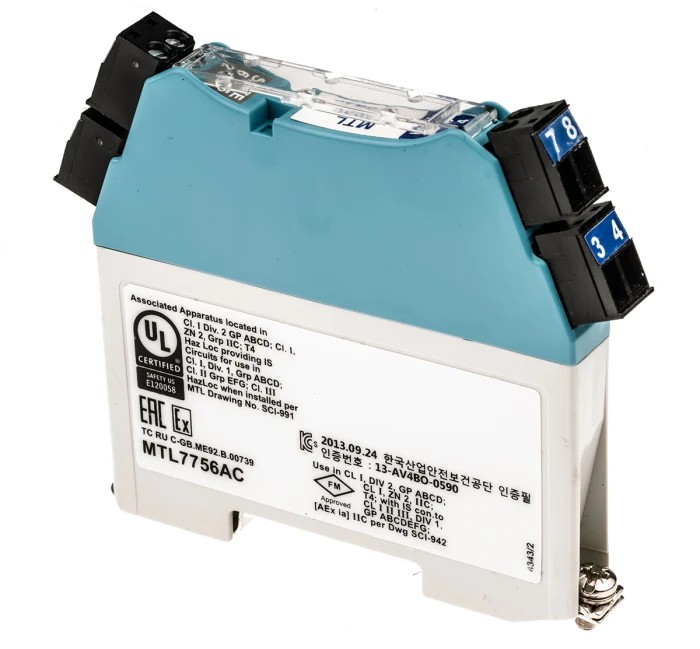

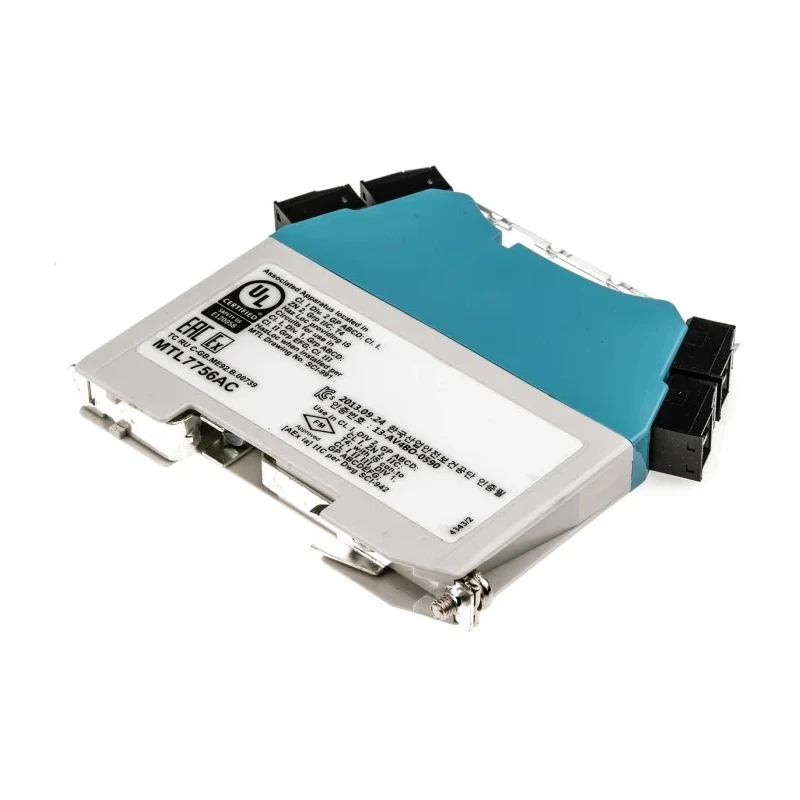

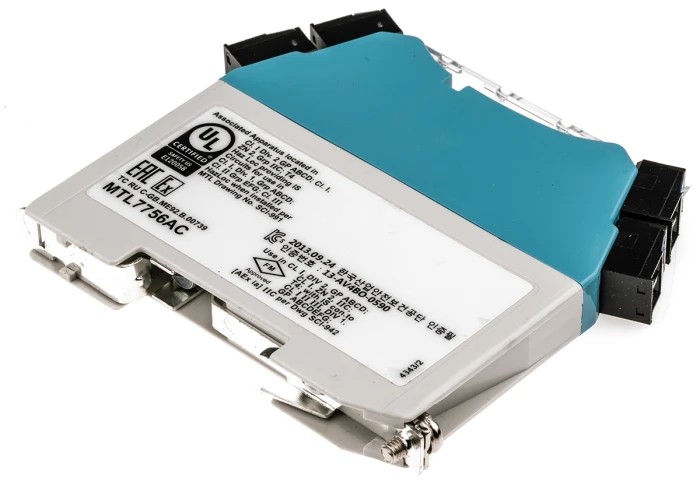

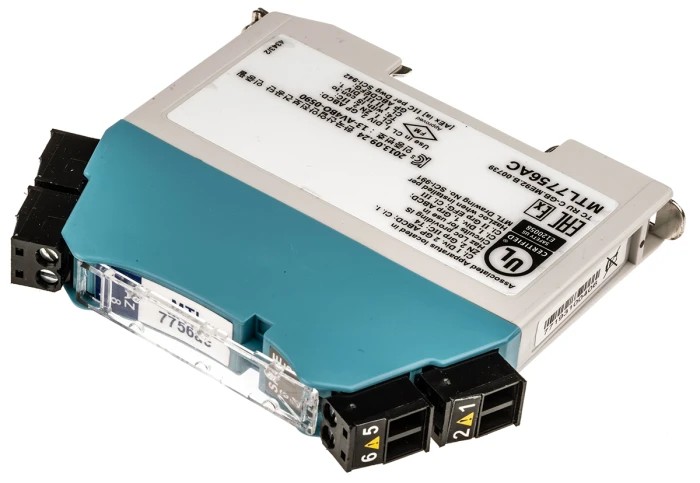

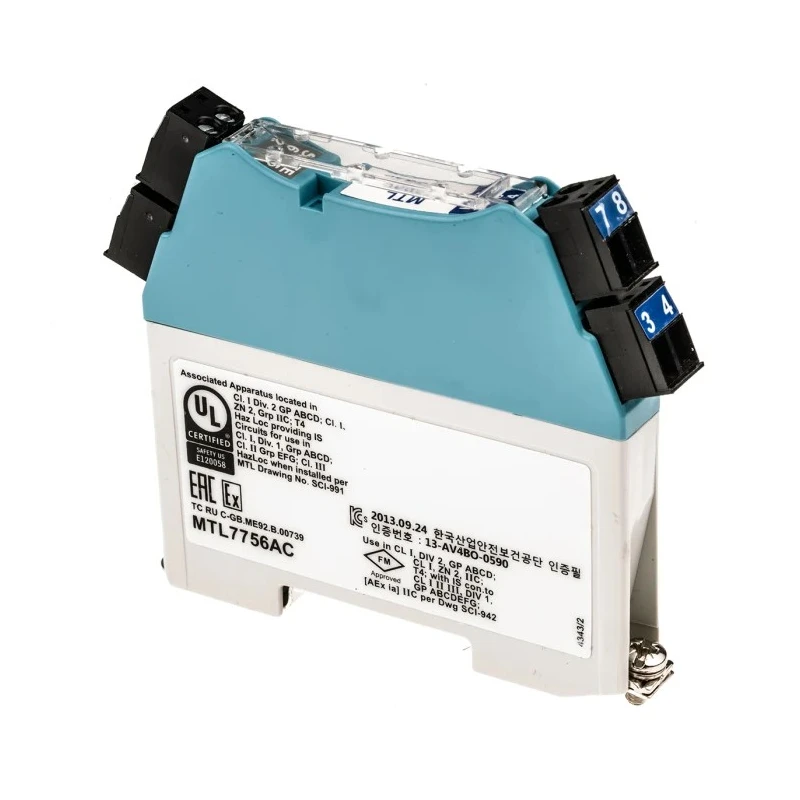

Eaton 3 Channel DIN Rail Mount Zener Barrier, 3V DC Supply, 300mA Max Safety Current, ATEX Certified, MTL7756AC/RS

The Eaton MTL7756AC/RS 3 Channel DIN Rail Mount Zener Barrier is an intrinsic safety device specifically engineered for hazardous area applications where equipment protection and safety are paramount. This product operates on a 3V DC supply voltage and supports a maximum safety current of 300mA, providing reliable voltage and current limiting through integrated Zener diodes, resistors, and fuses.

Its robust construction and ATEX certification ensure compliance with stringent safety requirements for use in explosive environments. The removable screw terminals are color-coded for straightforward installation and maintenance, and angled wire entry simplifies wiring in tight spaces.

Designed for efficient DIN rail mounting, this unit establishes a secure intrinsic safety earth connection. It is ideal for use with field devices that feature switch inputs or 2-wire transmitters, enhancing system safety by diverting potentially hazardous excess electrical energy safely to ground, thereby preventing sparking and overheating risks.

The operating temperature range from -20°C to +65°C allows the barrier to perform reliably under harsh industrial conditions. Compact dimensions of 105 x 90 x 12.6 mm enable flexible integration into control panels.

This unit is a member of the MTL7700 series, renowned for robust intrinsic safety barriers that incorporate pulse-tested Zener diodes and infallible terminating resistors for dependable protection.

Durable DIN rail mount with safe earth connection capability. Removable, color-coded screw terminals for easy wiring and maintenance. Intrinsic safety certification for hazardous and explosive atmospheres (ATEX). 3V DC supply voltage with a 300 mA maximum safety current rating.

10Ω safety current resistance for reliable current limiting. Supports field devices with switch inputs or 2-wire transmitters. Compact dimensions suitable for limited space installations. Chemical and environmental resistance suited for industrial automation and control systems.

This Eaton Zener Barrier is indispensable for industrial, automation, and electrical safety systems requiring intrinsic safety solutions in hazardous environments. Its proven performance supports safety in manufacturing, processing, and instrumentation applications.
